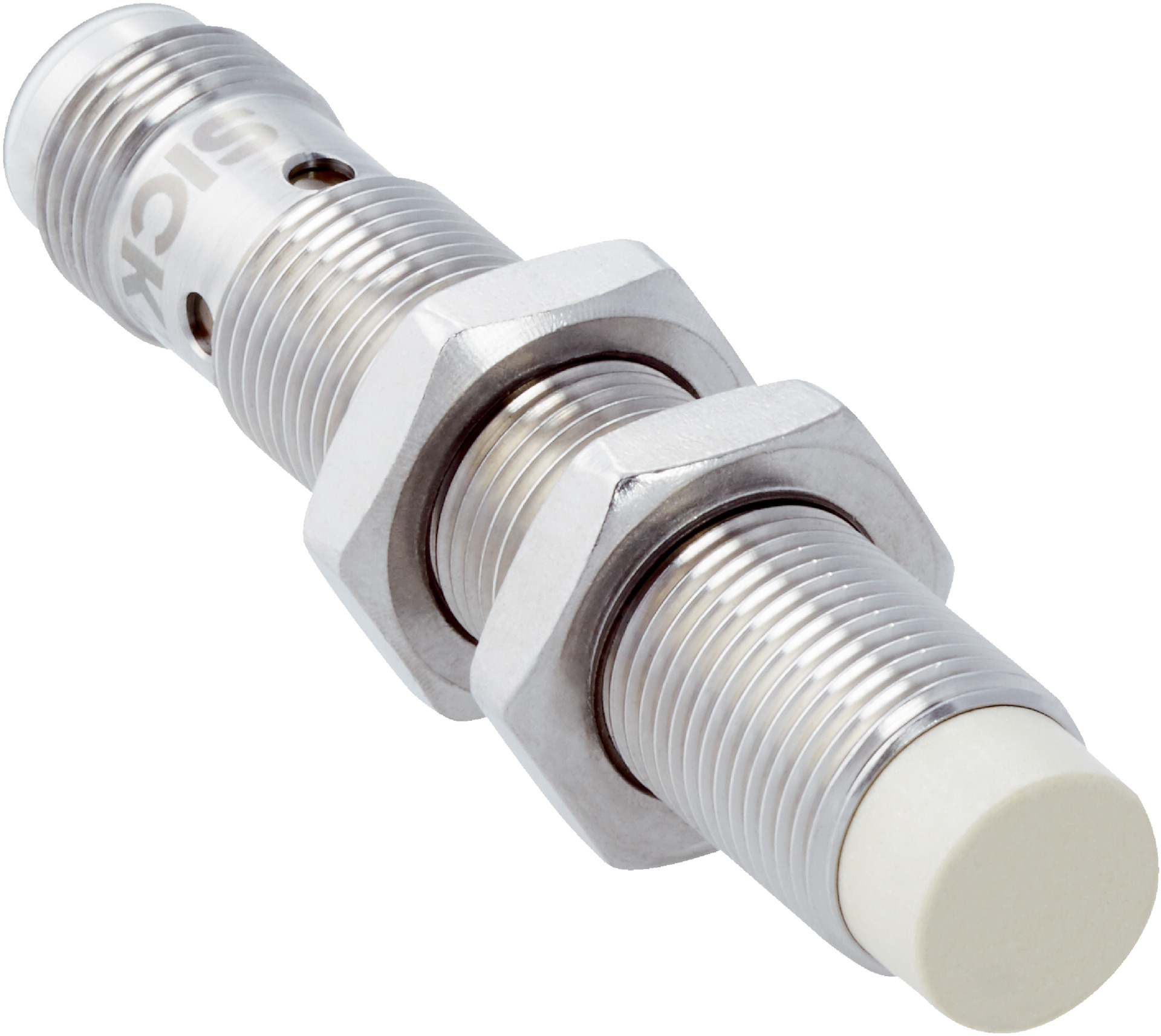

M12 Inductive Proximity Sensor | 8mm Sensing Range | IP68 & IP69K Rated | PNP Output | by SICK
The M12 Inductive Proximity Sensor is designed for robust industrial automation applications, featuring an 8mm sensing range and IP68/IP69K rated enclosure for high protection in hygienic and washdown zones. With a PNP output and a switching frequency of up to 2,000 Hz, this sensor is perfect for challenging environments requiring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Resistant to cleaning agents and temperature resistant
- Equipped with IO-Link communication interface
- Shock and vibration resistant with high durability
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring non-flush inductive sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Resistance to cleaning agents supports hygienic environments without damage
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

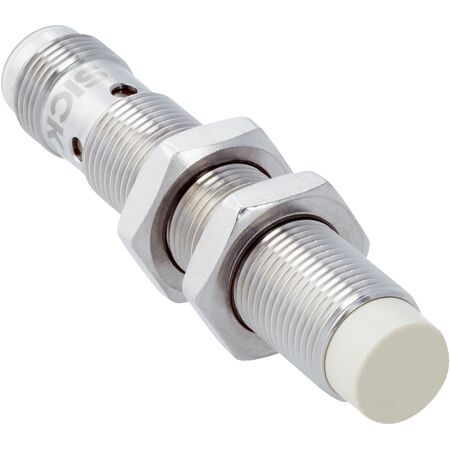

The SICK IMF12-08NPPNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
