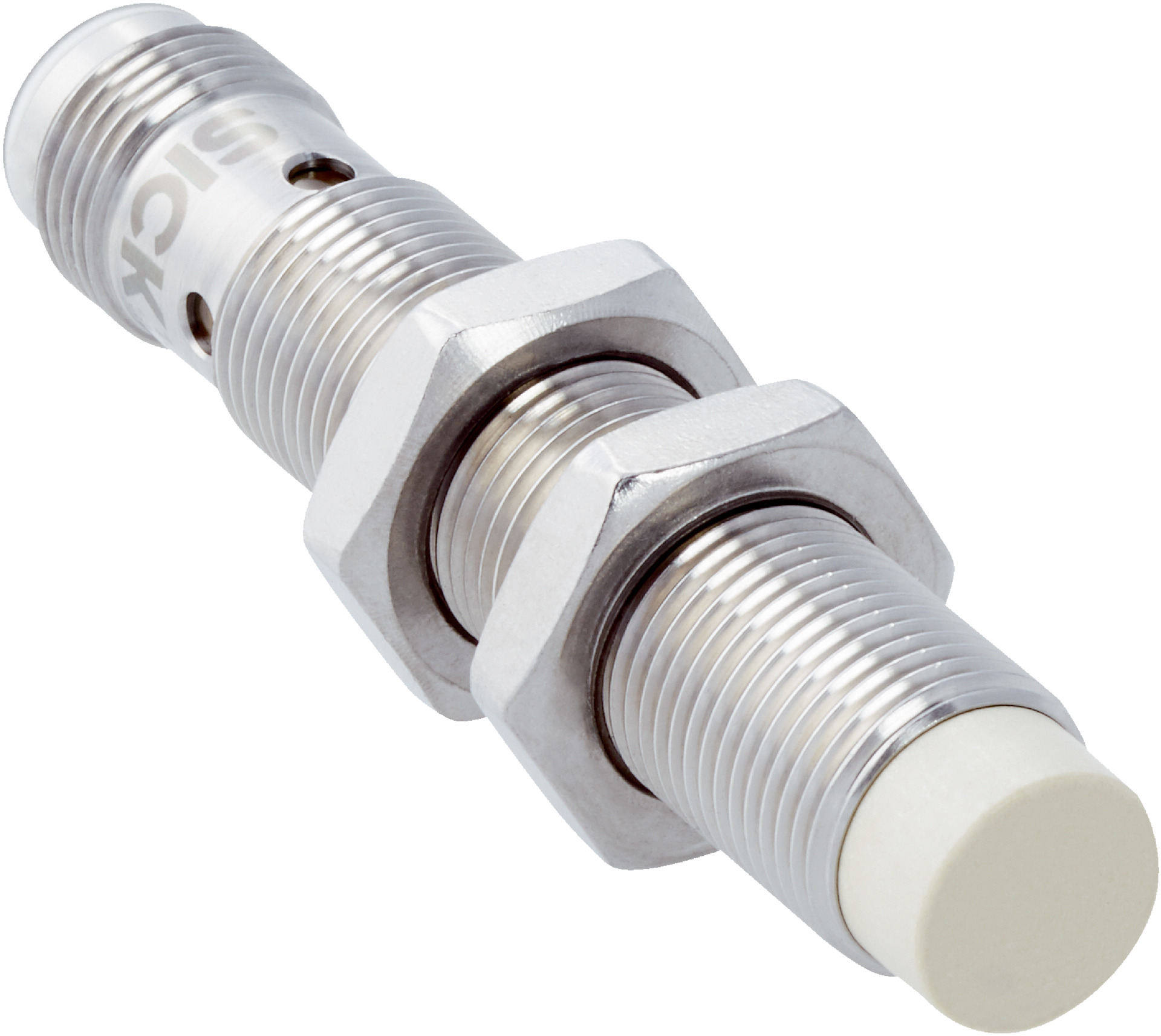

M12 Inductive Proximity Sensor | 8mm Sensing Range | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M12 Inductive Proximity Sensor is designed for robust industrial automation, featuring an 8mm sensing range and high protection ratings of IP68 and IP69K. Ideal for hygienic and washdown zones, this sensor ensures precise non-contact object detection, making it perfect for challenging application conditions. Built with a durable stainless steel housing, it withstands harsh environments while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud), 1 Byte process data
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- PNP switching output with NO function
- DC 3-wire electrical wiring
- High protection rating IP68 and IP69K
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator and IO-Link communication interface
- Supplied with V4A stainless steel mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise non-contact object detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without harmful chemical buildup
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

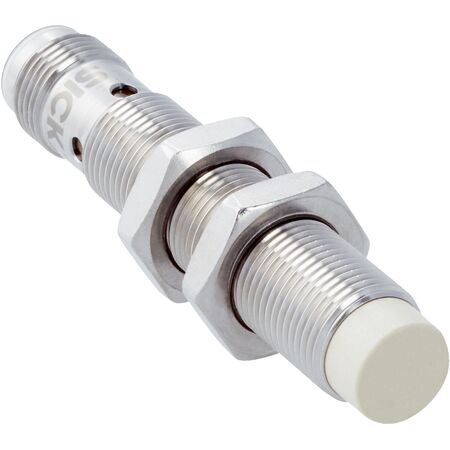

The SICK IMF12-08NPSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
