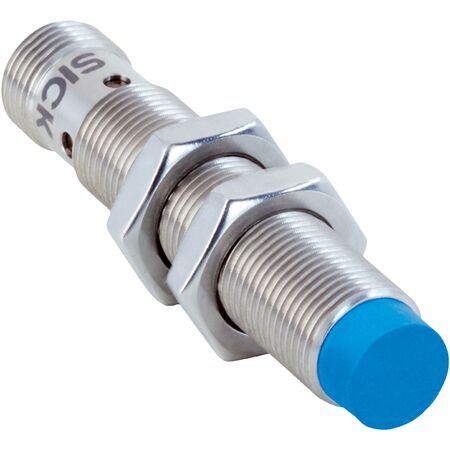

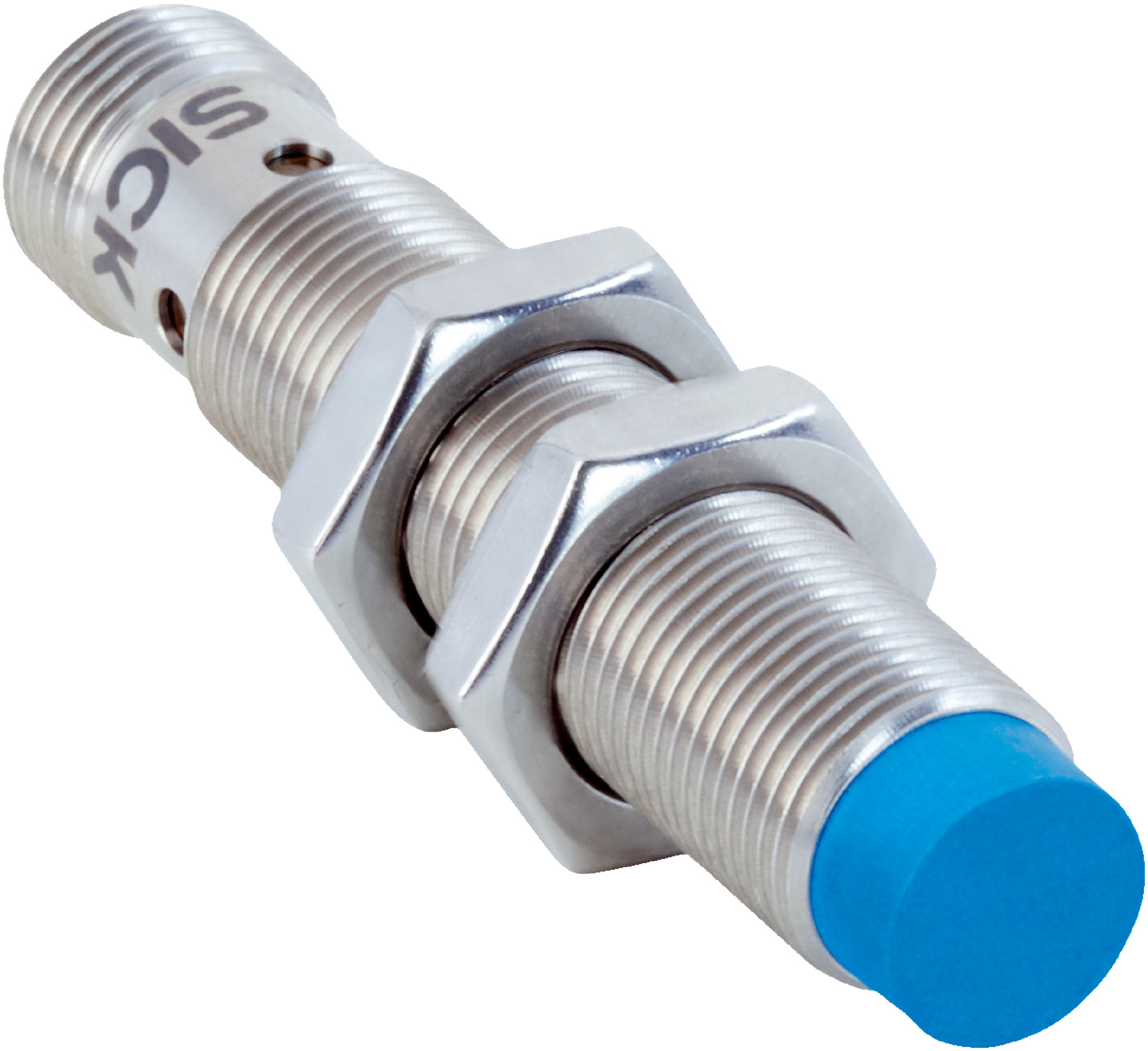

M12 Inductive Proximity Sensor | 8 mm Sensing Range | NPN NO Output | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring an 8 mm sensing range and NPN normally open output. With a robust IP67/IP68/IP69K rating, it's perfect for harsh environments, ensuring durability against coolants and lubricants while maintaining high performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Sensing range (Sn): 8 mm
- Safe sensing range (Sa): 6.48 mm
- Electrical wiring: DC 3-wire
- Switching output: NPN, normally open (NO)
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread size: M12 x 1
- Thread length: 43 mm
- Housing length: 65 mm
- Tightening torque max: ≤ 12 Nm
- Shock resistance: 100 g, 2 ms sinusoidal
- Vibration resistance: 60 g peak (10 Hz to 2,000 Hz)
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open (NO) switching output
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG12-08NNSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
