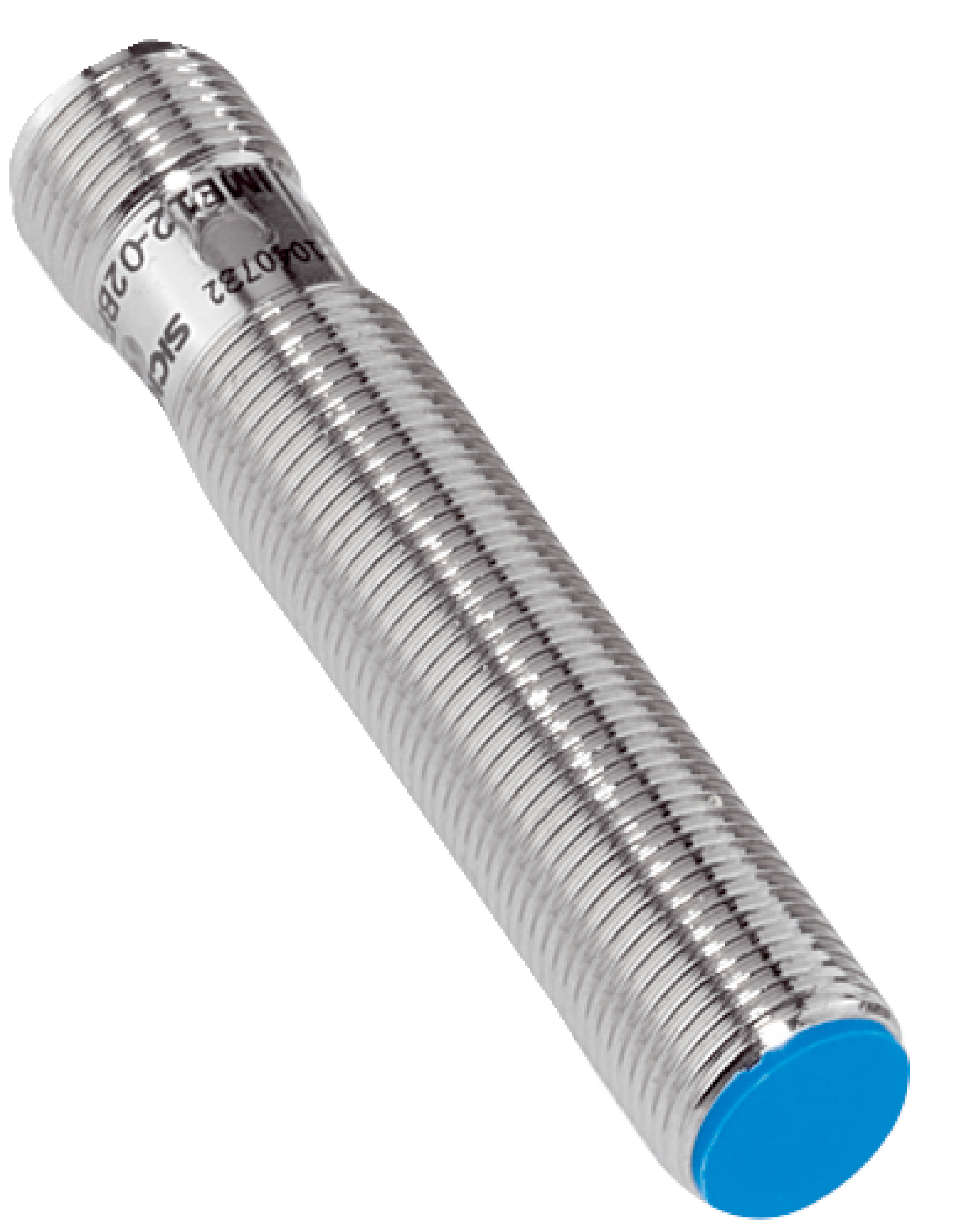

M12 Inductive Proximity Sensor | Brass Nickel-Plated Housing | 4mm Sensing Range | IP67 Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and a durable brass, nickel-plated housing. With an IP67 rating for dust and water protection, this sensor is perfect for flush mounting in tight spaces, ensuring optimal performance in manufacturing lines and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- EMC: According to EN 60947-5-2
- Output function: Normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with brass, nickel-plated housing
- M12 x 1 thread size with 4 mm sensing range
- Flush installation type
- Switching frequency up to 2,000 Hz
- Male M12 4-pin connector
- Normally open (NO) output function
- DC 2-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

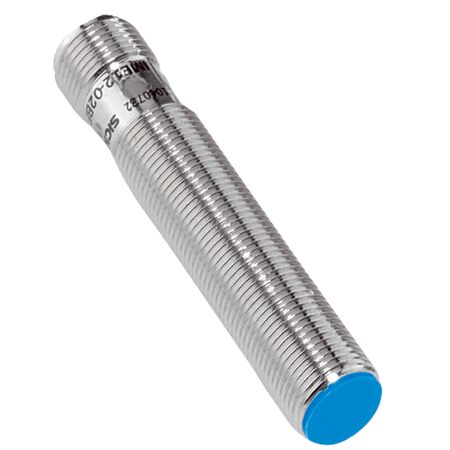

The SICK IME12-04BDSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
