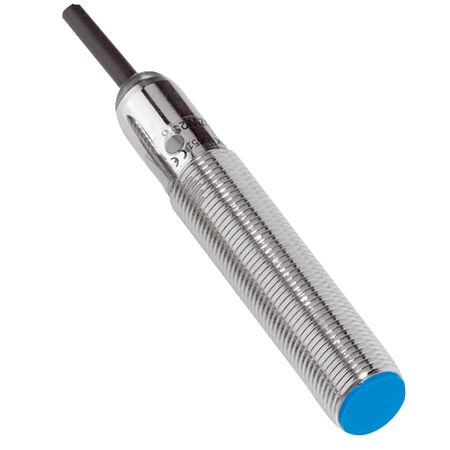

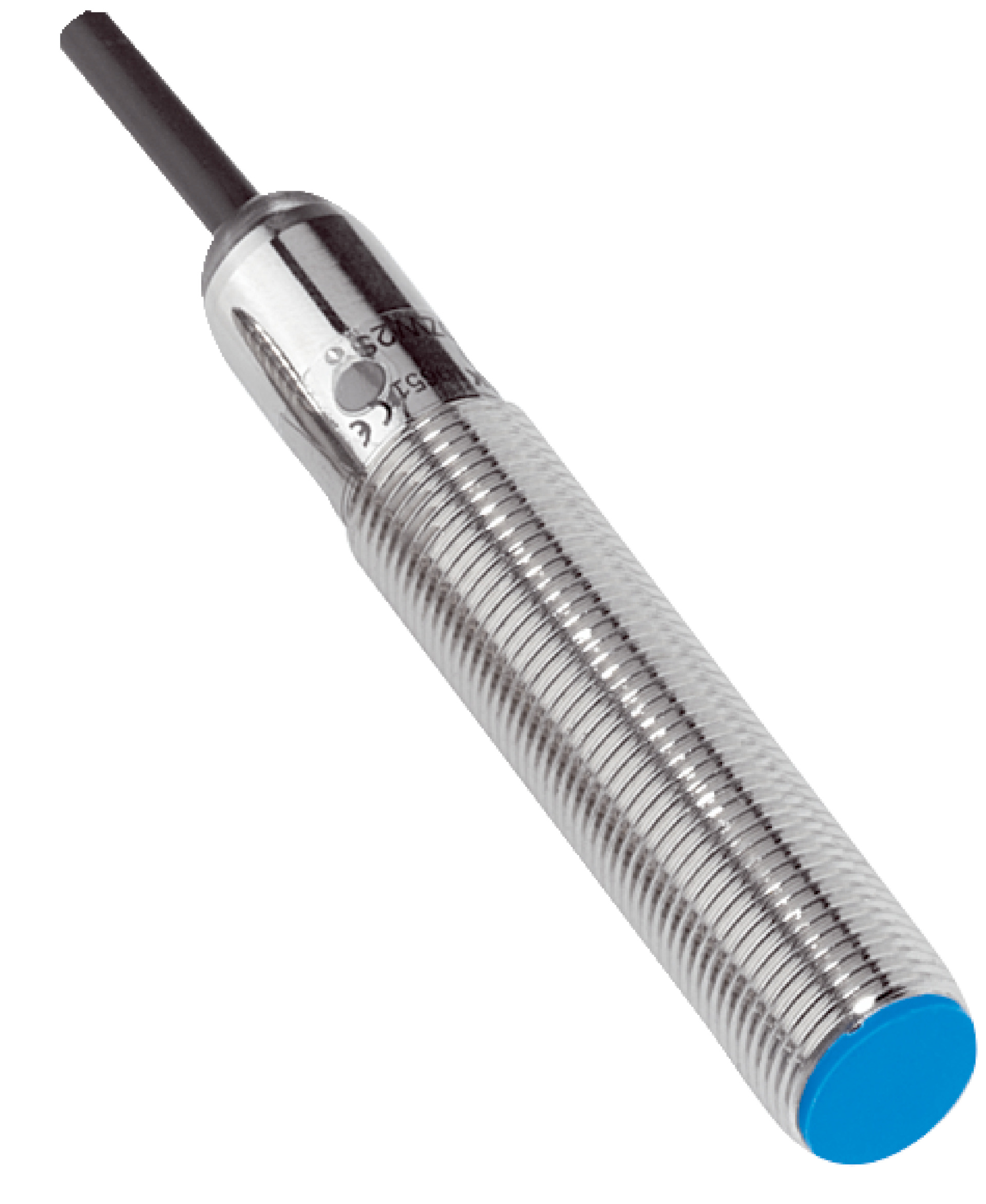

M12 Inductive Proximity Sensor | Brass Nickel-Plated Housing | IP67 Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust brass nickel-plated housing and an IP67 rating for dust and water protection. With a sensing range of 4mm and a switching frequency of up to 2,000 Hz, it's perfect for position sensing in manufacturing lines and safety systems in factories.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V to 4.5 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- Cable connection, 2-wire, 2 m length, oil-resistant
- Normally closed (NC) output function
- Electrical wiring: DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature range from -25 °C to +75 °C
- UL File No. NRKH.E181493 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Oil-resistant cable extends product life in harsh environments
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-04BDOZY2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
