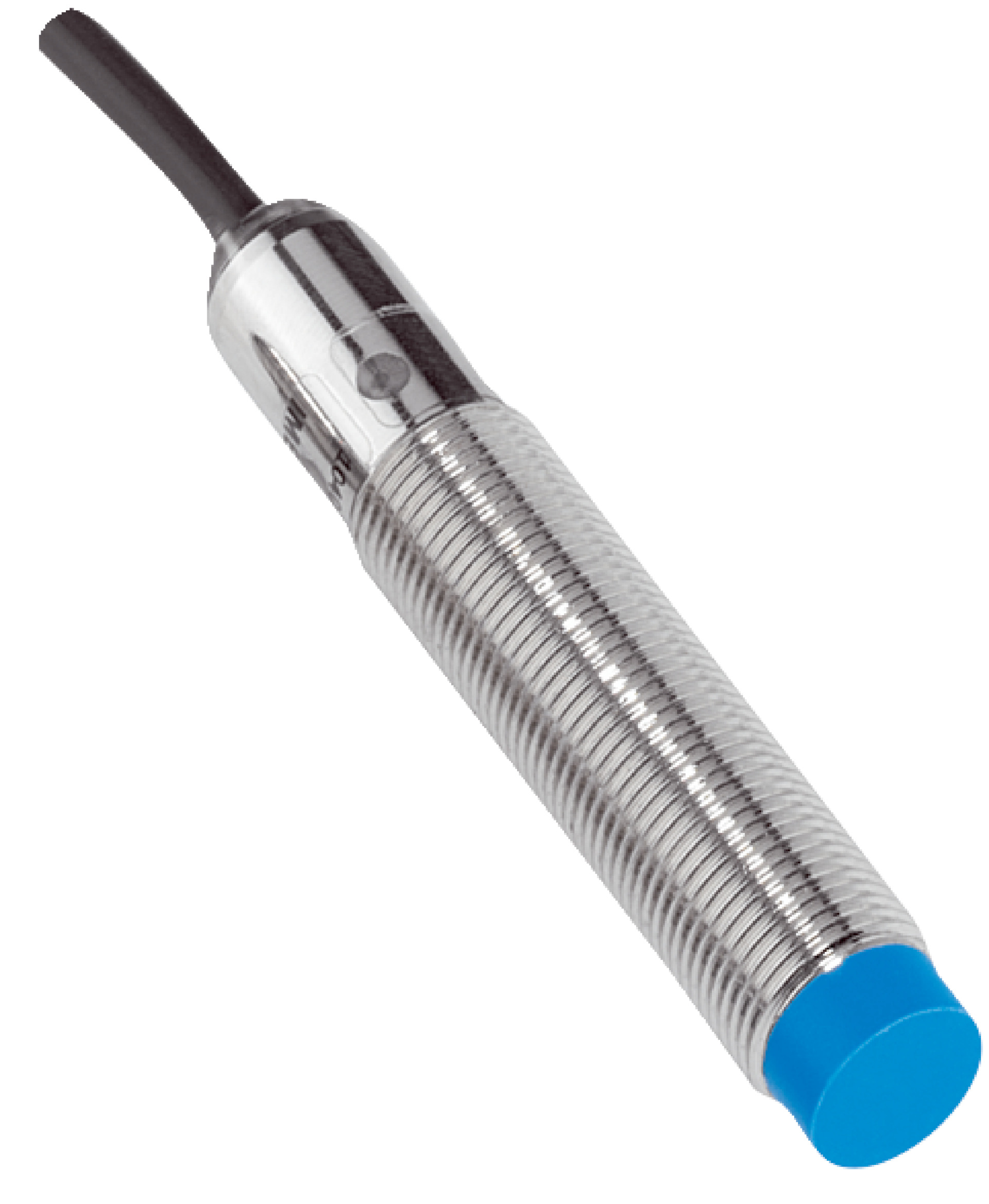

M12 Inductive Proximity Sensor | Brass Nickel-Plated Housing | IP67 Rated | 8mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust brass nickel-plated housing and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 2,000 Hz and a sensing range of 8 mm, it's perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, diameter 3.9 mm, length 450 mm with Tyco male connector, 3-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

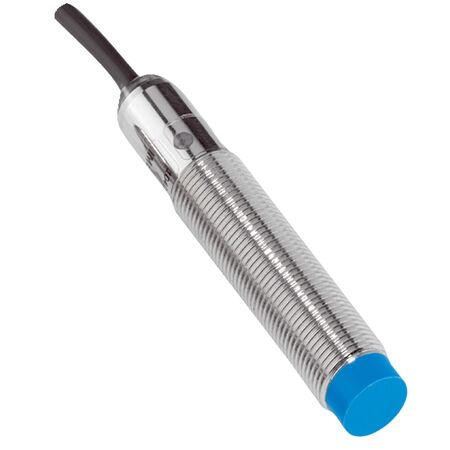

The SICK IME12-08NPSZWDSS49 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
