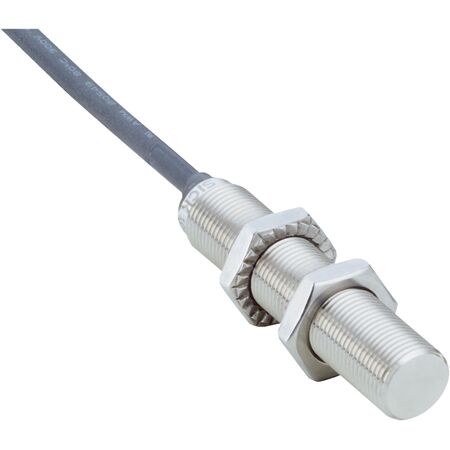

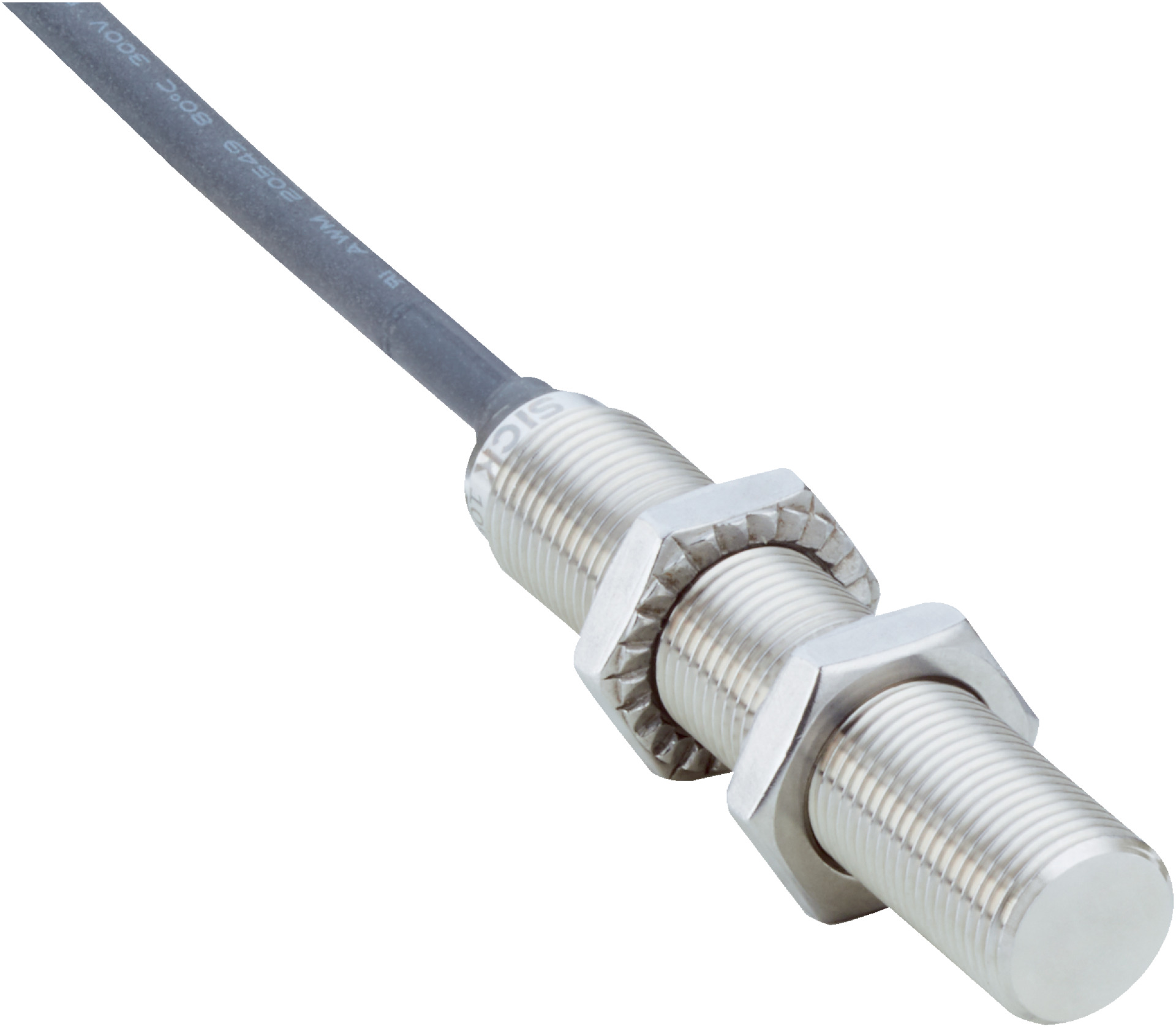

M12 Inductive Proximity Sensor | Flush Mount | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a flush mount design and a sensing range of 4 mm. With an IP68 and IP69K rating, this stainless steel sensor is perfect for harsh environments, ensuring durability against coolants and lubricants. Ideal for applications requiring robust sensing, it offers high performance with a switching frequency of 75 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 4.5 mm
- Conductor size: 0.34 mm²
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Switching output: PNP normally open
- Connection type: Cable, 3-wire, 2 m
- Dimensions (H x L x W): 12mm x 58.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Flush installation type with M12 x 1 metric thread housing
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating (IP68, IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK IMI12-04BPSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
