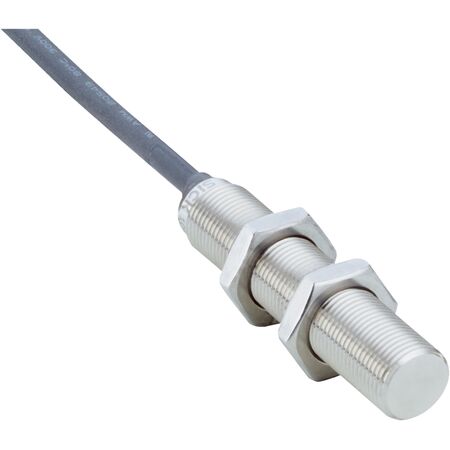

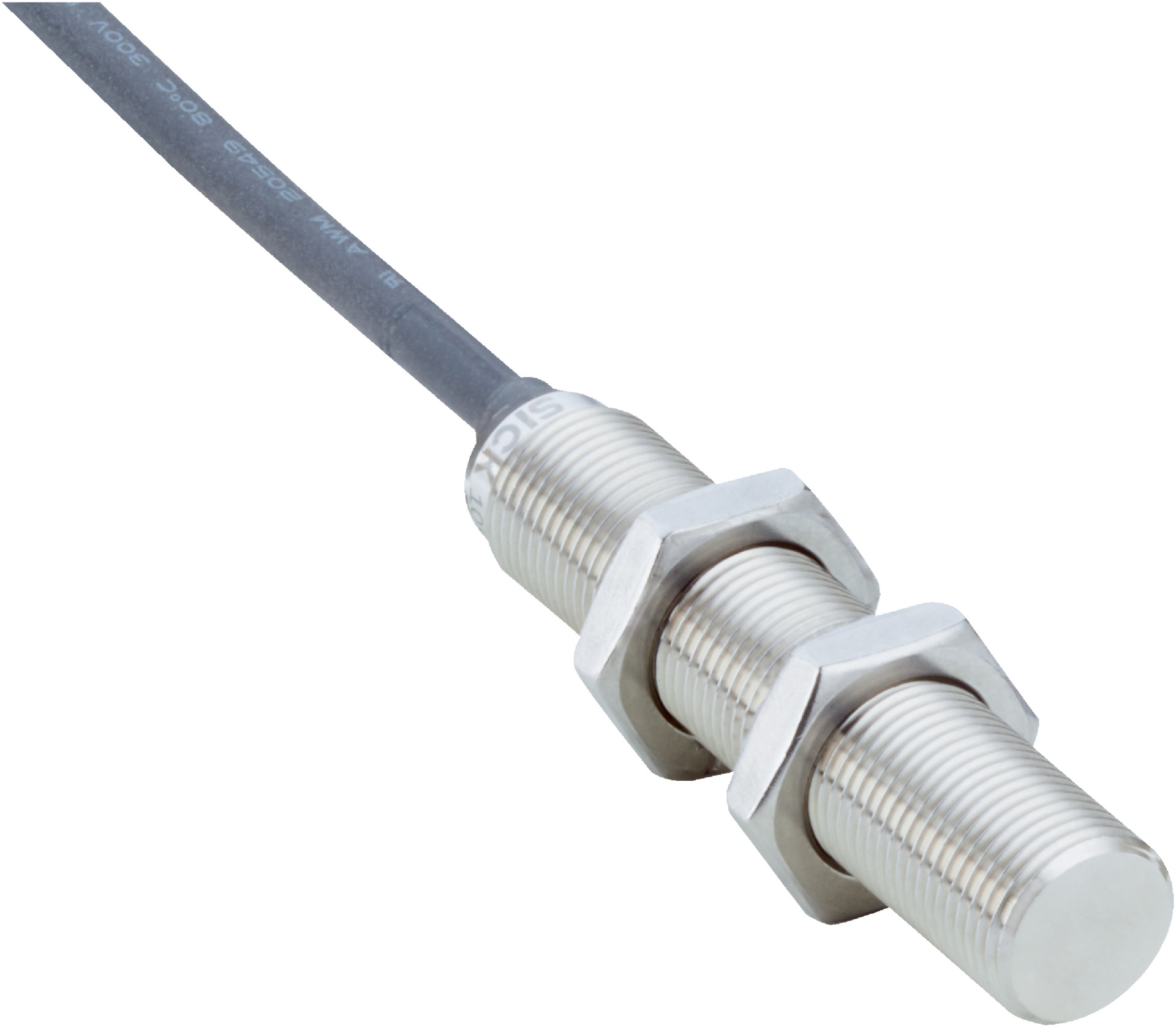

M12 Inductive Proximity Sensor | Flush Mount | IP68 & IP69K Rated | Stainless Steel | by SICK
The M12 Inductive Proximity Sensor is designed for flush mounting in hygienic and washdown zones, featuring a robust stainless steel V4A housing. With an IP68 and IP69K rating, it withstands harsh cleaning agents, making it ideal for industrial automation applications. This sensor offers a sensing range of 4 mm and a switching frequency of 75 Hz, ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm
- Conductor size: 0.34 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Operating temperature range: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Switching output: NPN normally closed
- Switching frequency: 75 Hz
- Dimensions (H x L x W): 12mm x 58.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz
- NPN normally closed switching output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Suitable for hygienic and washdown zones
- Mounting nut included, made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI12-04BNONU2S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
