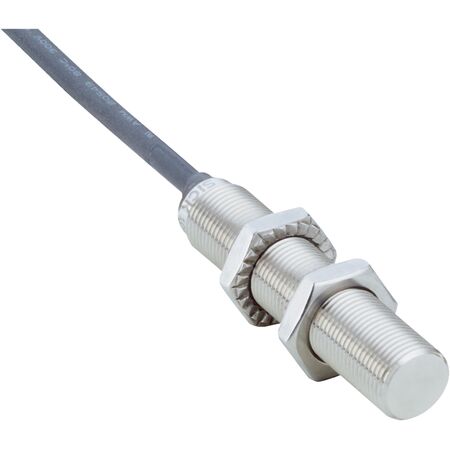

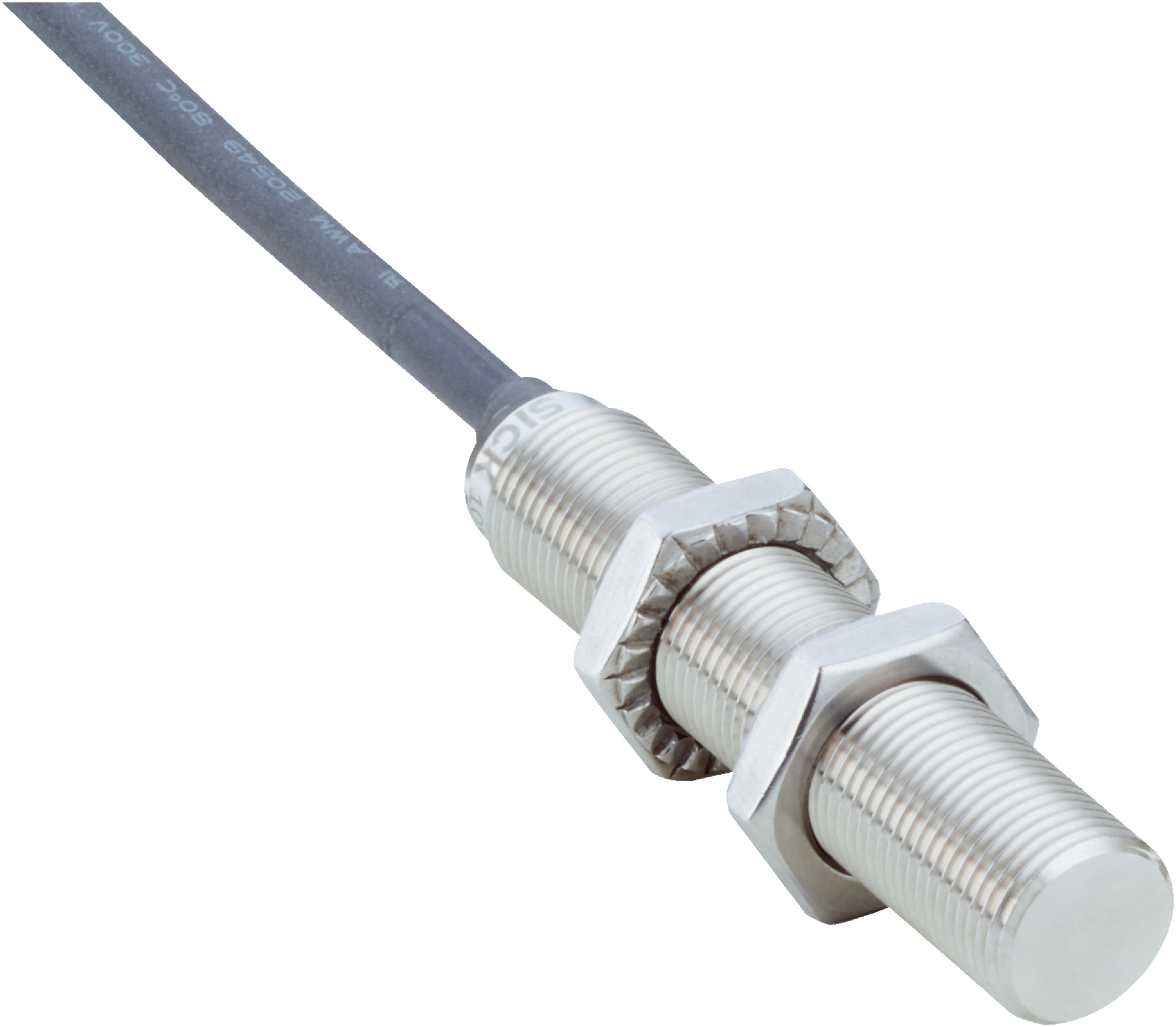

M12 Inductive Proximity Sensor | Flush Mount | IP68 & IP69K Rated | Stainless Steel | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a flush mount design and high protection ratings of IP68 and IP69K. Built with durable stainless steel, it withstands harsh environments, making it ideal for applications involving coolants and lubricants. With a sensing range of 4 mm and a switching frequency of 75 Hz, this sensor ensures accurate performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 4.5 mm
- Conductor size: 0.34 mm²
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Switching output: NPN normally open
- Connection type: Cable, 3-wire, 2 m
- Dimensions (H x L x W): 12mm x 58.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Flush installation type
- Sensing range Sn of 4 mm with safe sensing range Sa of 3.24 mm
- Switching frequency of 75 Hz with NPN normally open output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant against coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
- Operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High protection rating (IP68, IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI12-04BNSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
