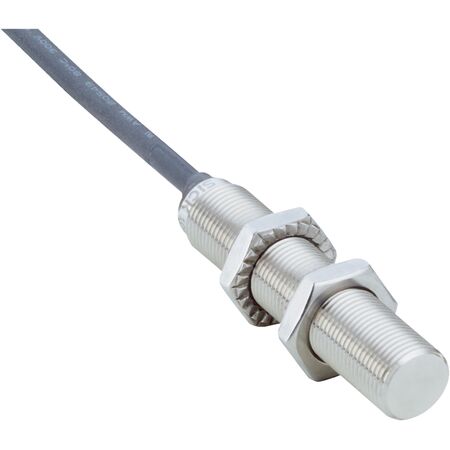

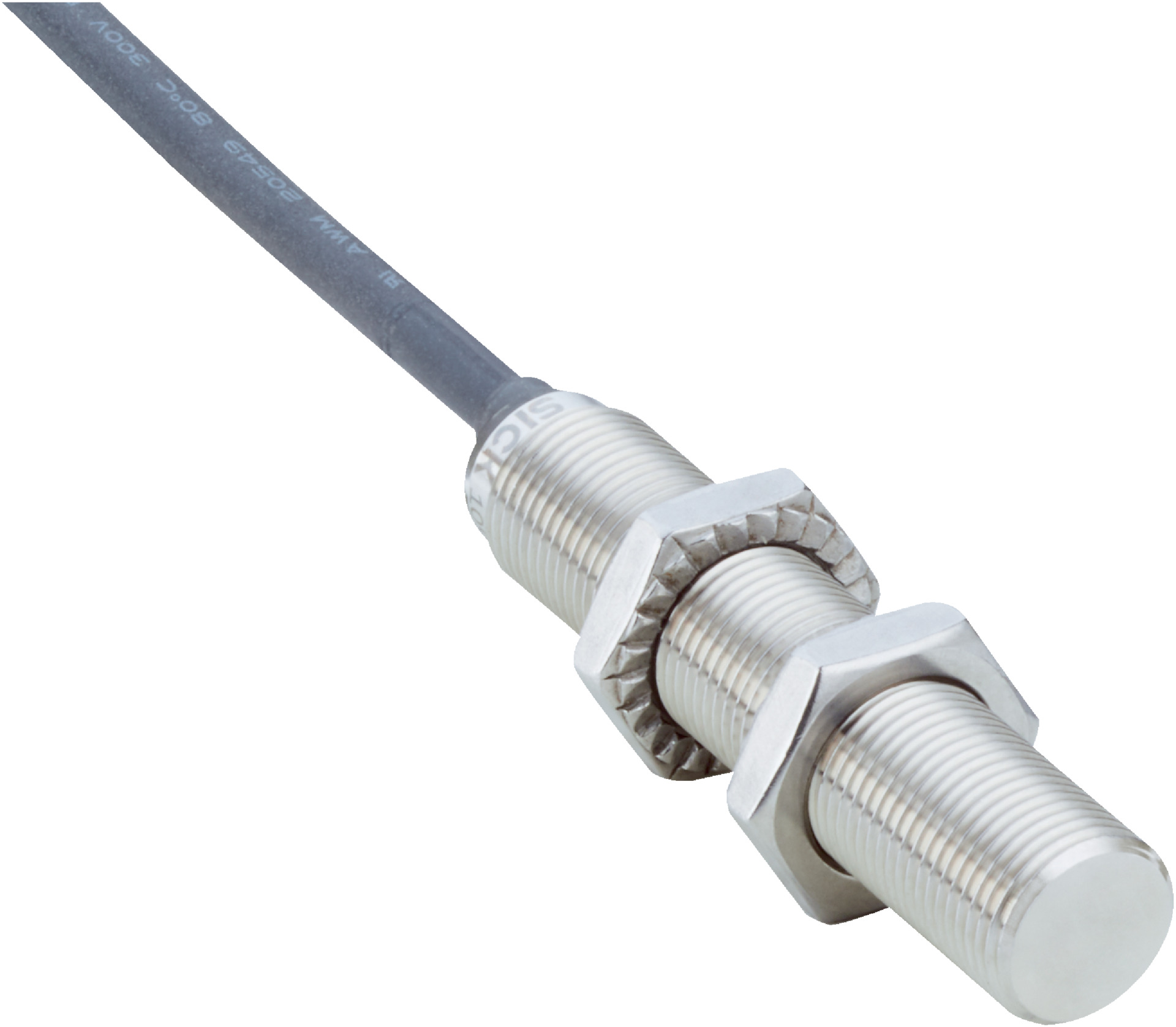

M12 Inductive Proximity Sensor | Flush Mount | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 4 mm and a robust flush installation type. With an IP68 and IP69K rating, this stainless steel sensor is perfect for harsh environments, resistant to coolants and lubricants, ensuring high durability and performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 4.5 mm
- Conductor size: 0.34 mm²
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 150 g / 1 million cycles
- Operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 59mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency of 75 Hz
- NPN switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant to coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High protection ratings reduce failure and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMI12-04BNOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
