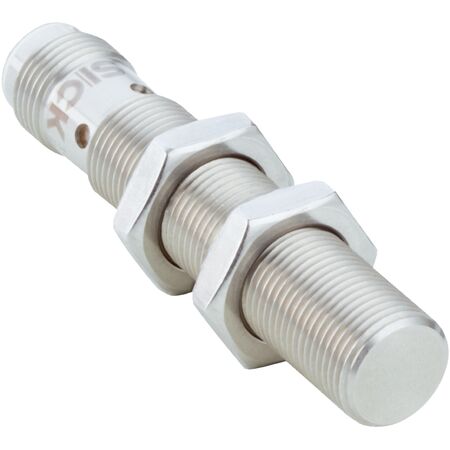

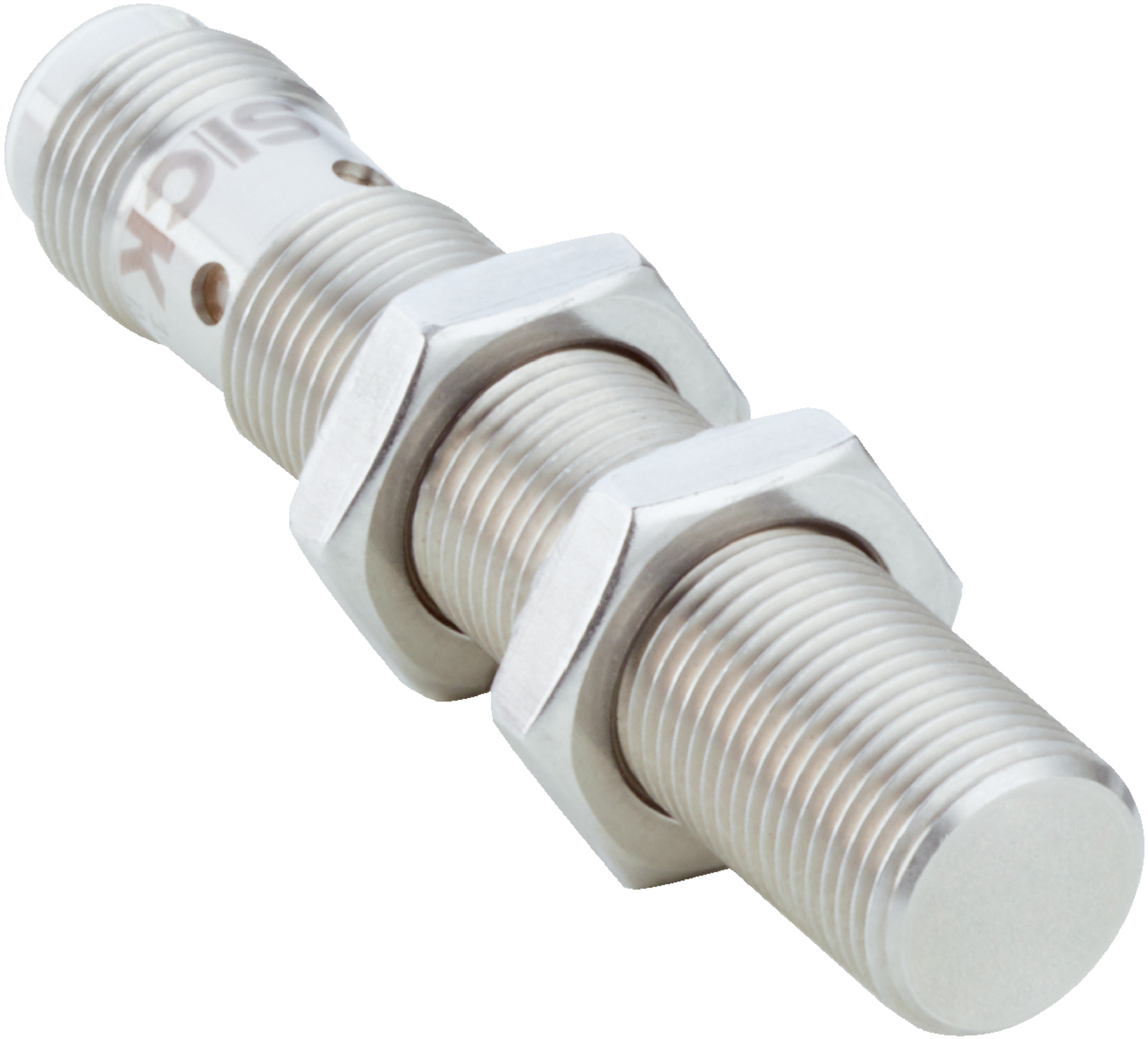

M12 Inductive Proximity Sensor | Flush Mount | IP68 & IP69K Rated | Stainless Steel | by SICK
The M12 Inductive Proximity Sensor is designed for robust performance in hygienic and washdown zones, featuring a flush mount design and IP68/IP69K protection. With a sensing range of 4 mm and NPN normally closed output, it's perfect for industrial automation applications requiring precise proximity detection and high durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Switching output: NPN normally closed
- Connection type: Male M12 4-pin connector
- Dimensions (H x L x W): 12mm x 63.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz
- NPN normally closed switching output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Suitable for hygienic and washdown zones
- Mounting nut included made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper function and compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise proximity detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMI12-04BNONC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
