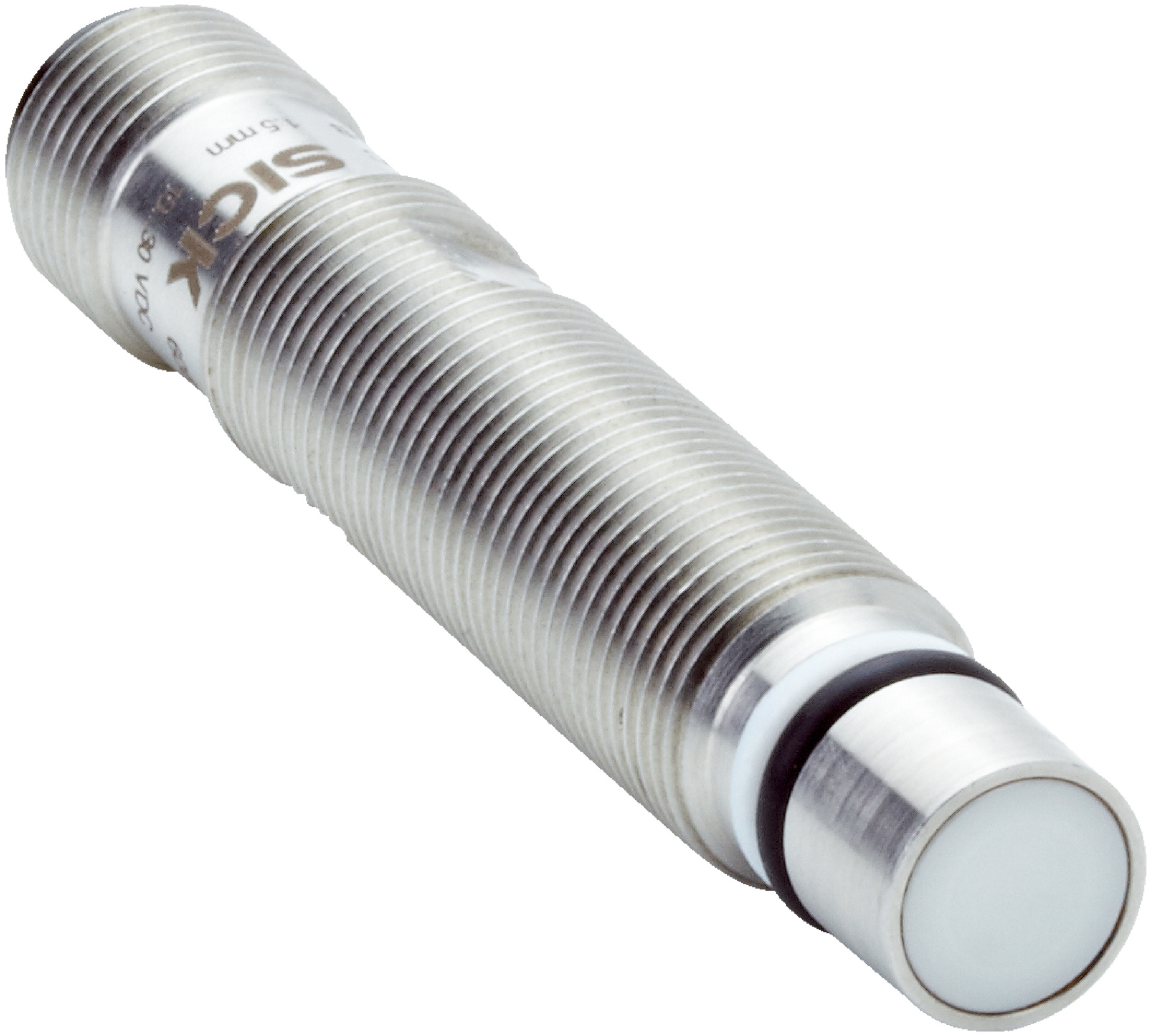

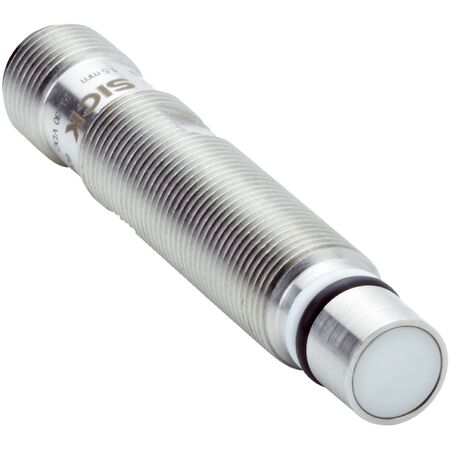

M12 Inductive Proximity Sensor | High Pressure Resistance | Flush Mount Design | IP68 Rated | by SICK
The M12 Inductive Proximity Sensor is engineered for high-pressure applications, featuring a robust design that withstands up to 500 bar. With a sensing range of 1.5 mm and a flush installation type, it's perfect for industrial automation and hydraulic systems. Built with a stainless steel housing and ceramics sensing face, this sensor ensures durability and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ±10% to ±15%
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliance: According to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 69mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- NPN complementary switching output with DC 4-wire electrical wiring
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 for dust and water resistance
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with hydraulic sensor integration and electrical wiring standards to ensure safety and optimal performance.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments requiring flush installation and high durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product lifespan reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP12-1B5NPVC0C sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure and temperature resistance.
