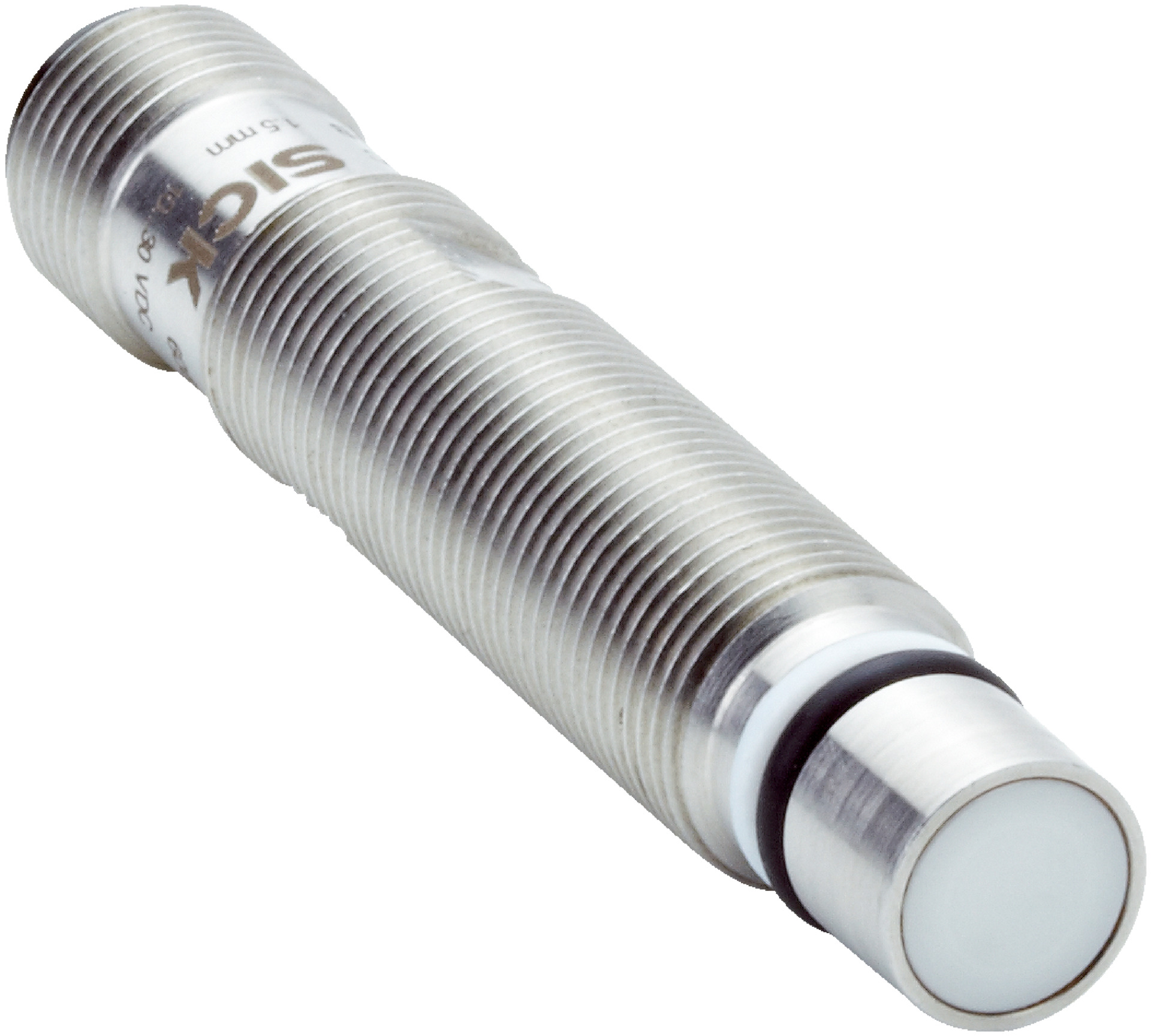

M12 Inductive Proximity Sensor | High Pressure Resistance | IP68 Rated | Flush Installation | by SICK
The M12 Inductive Proximity Sensor is designed for hydraulic applications, featuring a high pressure resistance of up to 500 bar and an IP68 rated enclosure for dust and water protection. With a sensing range of 1.5 mm and a flush installation type, this sensor is perfect for industrial automation and machinery sensing, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread size
- Diameter: 12 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 600 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift (of Sr): ≤ 15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +80 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: FPM
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 69mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- NPN normally open switching output
- DC 3-wire electrical wiring
- IP68 rated enclosure for dust and water protection
- High pressure resistant design suitable for hydraulic applications
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramic ZrO2
- Sealing ring made of FPM
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Flush installation environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product lifespan reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

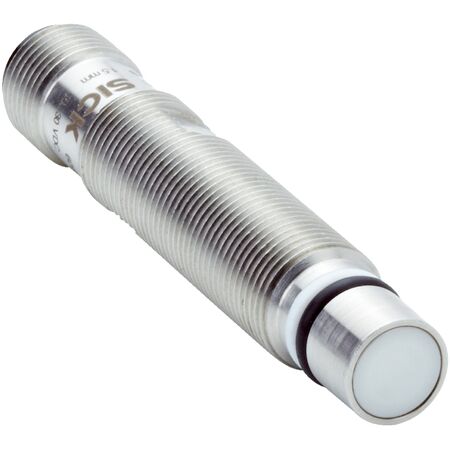

The SICK IMP12-1B5NSVC0C inductive sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
