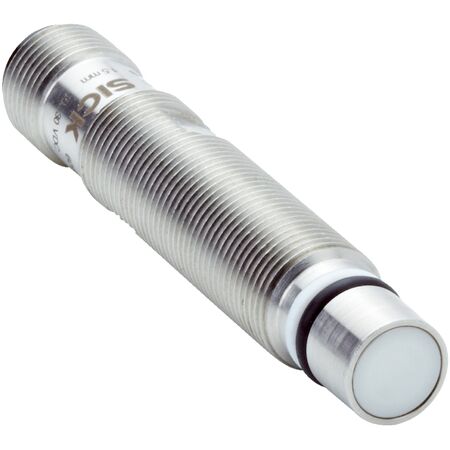

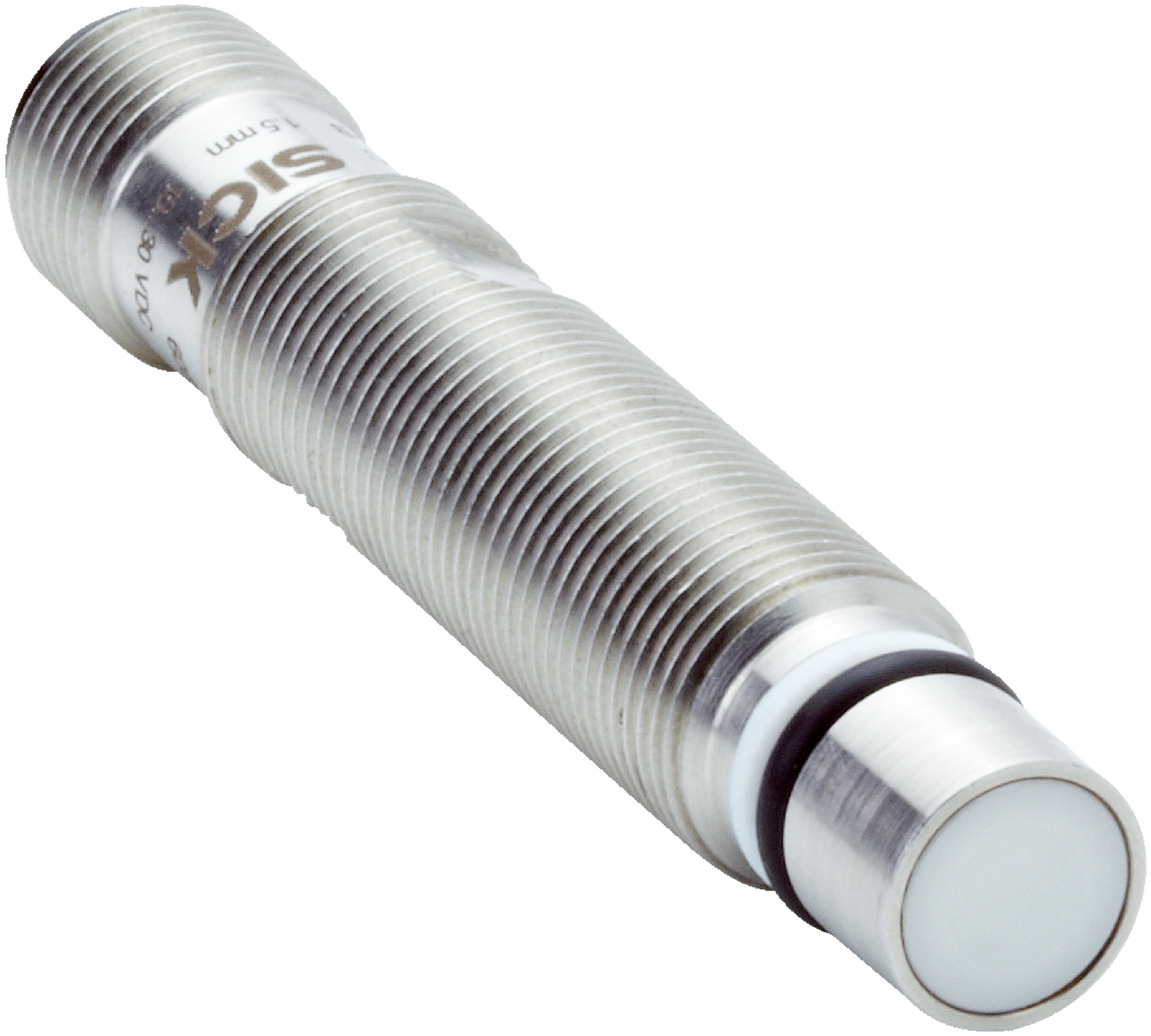

M12 Inductive Proximity Sensor | High Pressure Resistance | IP68 Rated | Flush Installation | by SICK
The M12 Inductive Proximity Sensor is designed for hydraulic applications, featuring high pressure resistance up to 500 bar and an IP68 rating for dust and water protection. With a sensing range of 1.5 mm and a robust stainless steel housing, this sensor is perfect for industrial automation and environments requiring durability and precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ≤ 15%
- EMC compliance according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 69mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- Male connector M12, 4-pin connection
- NPN switching output with NC output function
- DC 3-wire electrical wiring
- Enclosure rating IP68 for dust and water resistance
- High pressure resistant design suitable for hydraulic applications
- Short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct wiring, mounting torque, and compliance with electrical safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments needing flush installation and high durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- High resistance to harsh environments minimizes waste
- Energy efficient operation with low voltage DC supply
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP12-1B5NOVC0C sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring robust and precise sensing.
