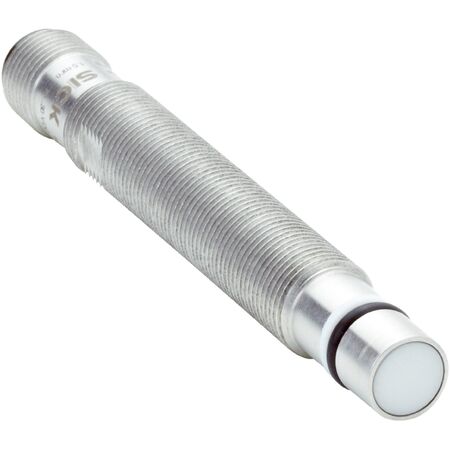

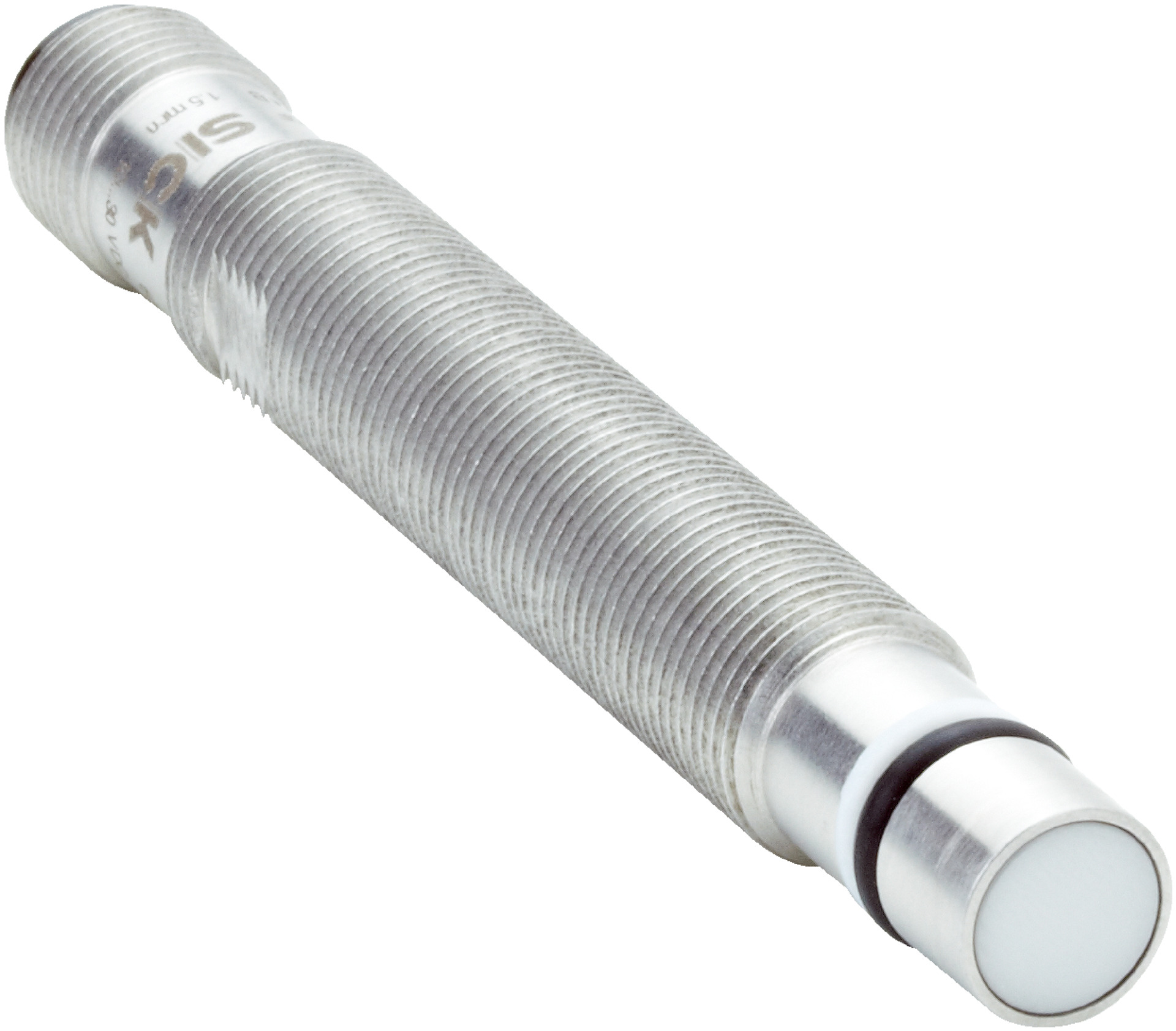

M12 Inductive Proximity Sensor | High Pressure Resistance | IP68 Rated | Stainless Steel Housing | by SICK
The M12 Inductive Proximity Sensor is designed for hydraulic applications, offering high pressure resistance up to 500 bar and an IP68 rating for dust and water protection. With a sensing range of 1.5 mm and a robust stainless steel housing, this sensor is perfect for industrial automation and environments with high shock and vibration, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ±10% to ±15%
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 93mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Switching frequency of 600 Hz
- NPN complementary switching output with DC 4-wire electrical wiring
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 for dust and water protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Short-circuit protection included
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connection compliance.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments with high shock and vibration
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMP12-1B5NPVC0F sensor is available for immediate purchase, ideal for hydraulic and industrial sensing applications requiring high pressure and temperature resistance.
