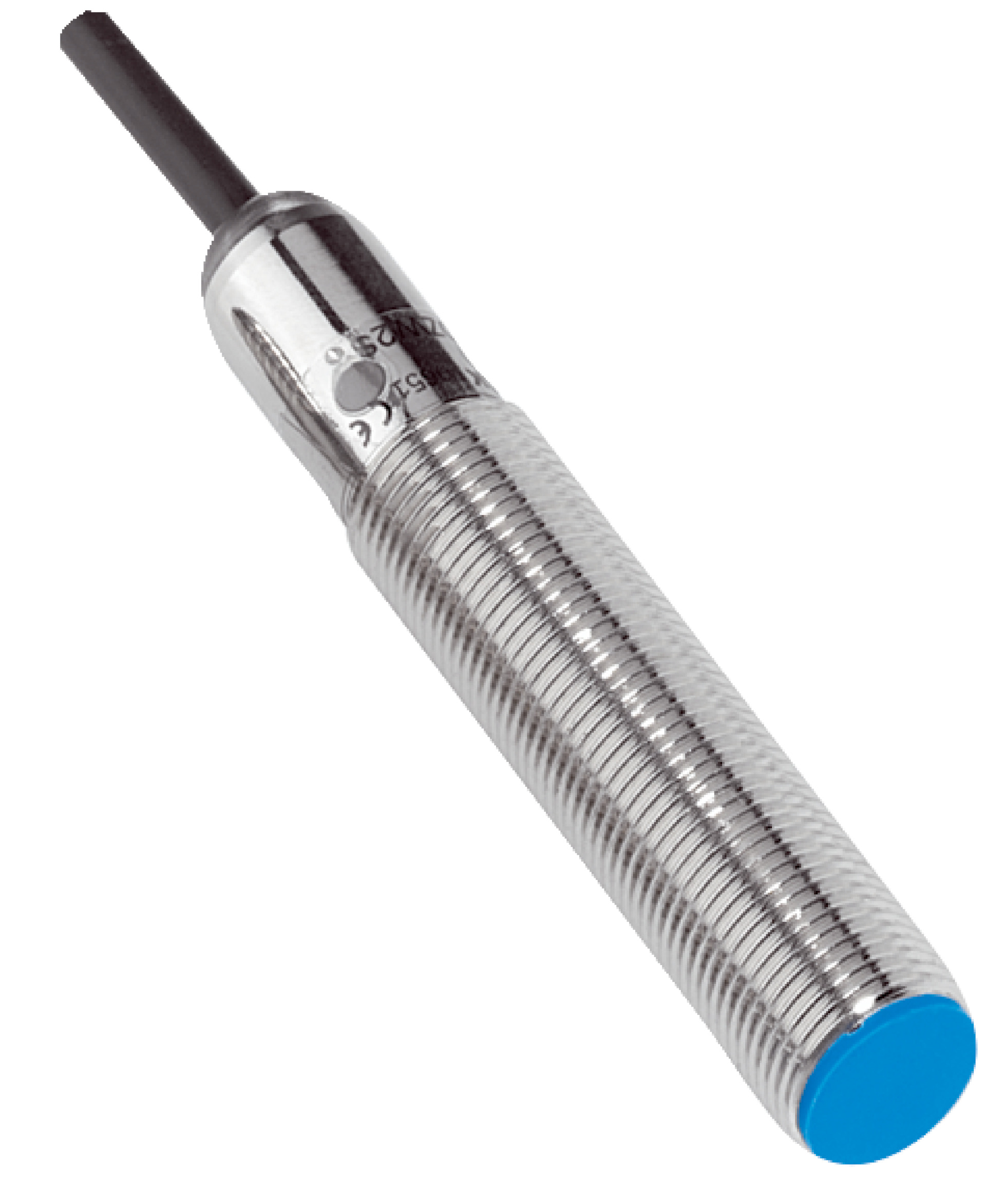

M12 Inductive Proximity Sensor | IP67 Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and a high switching frequency of 2000Hz. Built for durability with a stainless steel housing and IP67 rating, it’s perfect for metal detection and position sensing in manufacturing lines, ensuring efficient operation in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Inductive Proximity Sensor | IP67 Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1051424
Alternatively Known As: M12 Inductive Proximity Sensor, IME12 Proximity Sensor, SICK Proximity Switch, Stainless Steel Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3.9 mm diameter, 2 m length
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic PA 66
- Thread size: M12 x 1
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nuts made of V2A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

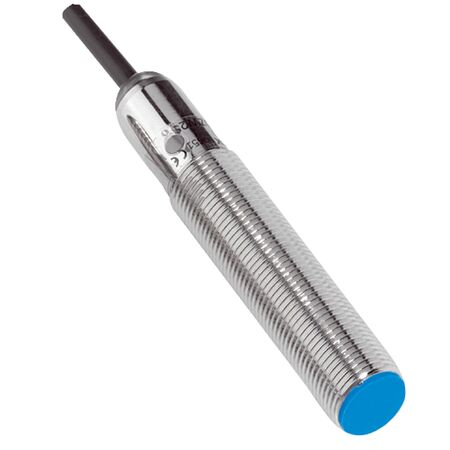

The SICK IME12-04BPSVW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
