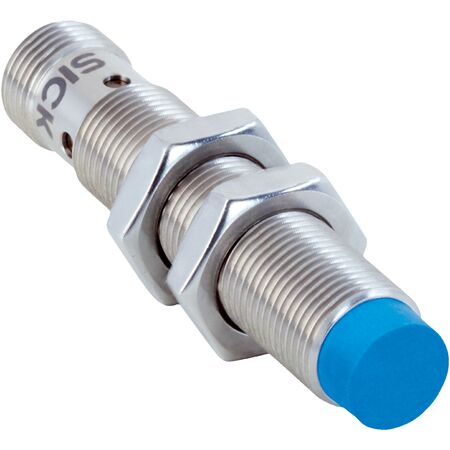

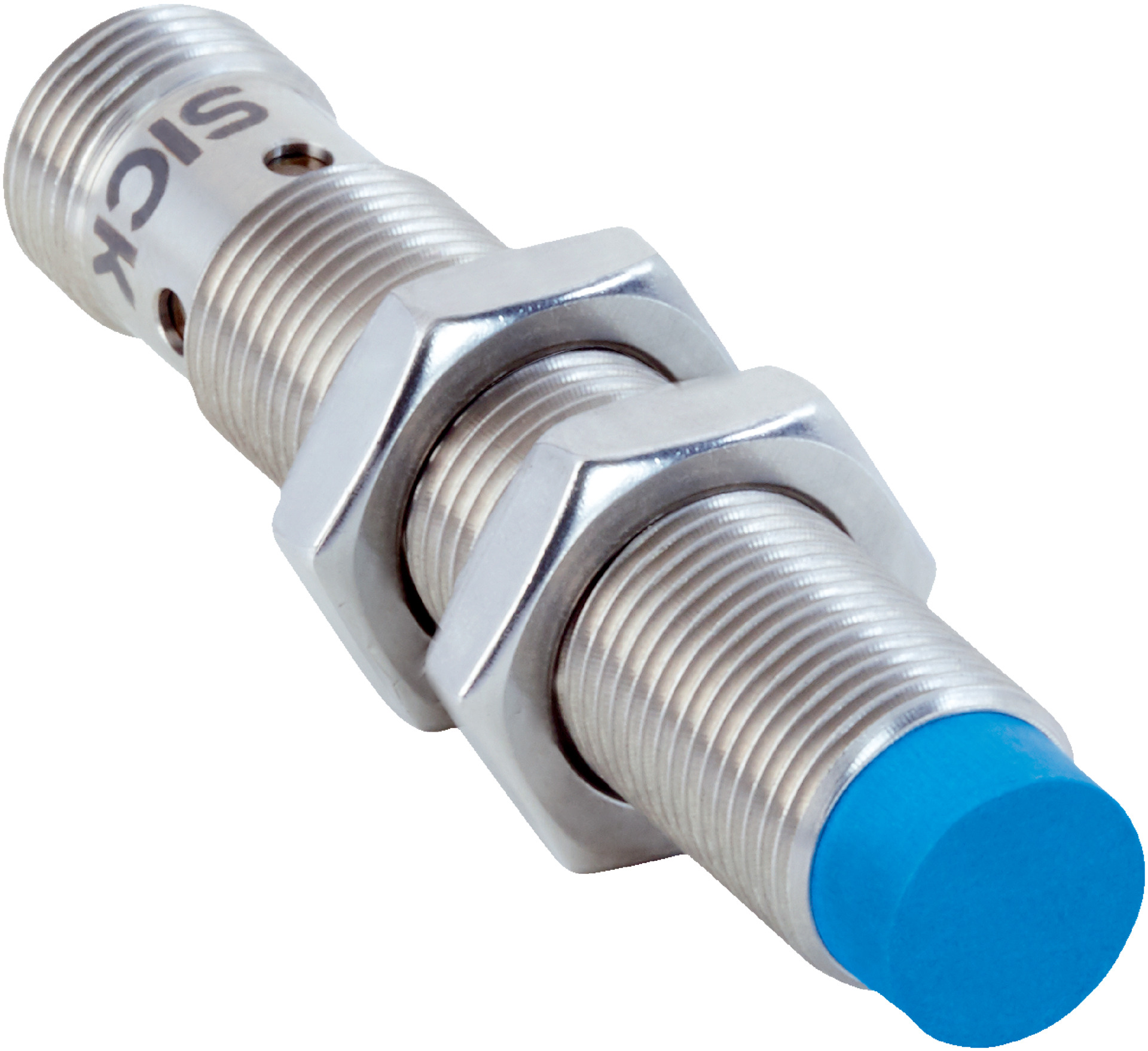

M12 Inductive Proximity Sensor | IP68 Rated | 16mm Sensing Range | PNP Normally Open | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 16mm sensing range and IP68 enclosure for harsh environments. With a PNP normally open output and a switching frequency of 25 Hz, it's perfect for applications involving coolants and lubricants, ensuring optimal performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 25 Hz
- Switching output: PNP, Normally Open
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Protection class: III
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread size: M12 x 1
- Sensing range Sn: 16 mm
- Safe sensing range Sa: 12.96 mm
- Installation type: Non-flush
- Connection type: Male connector M12, 4-pin
- Display: Yellow LED for output state, Green LED for stable on/off state
- IO-Link service interface available
- Dimensions (H x L x W): 12mm x 68mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 16 mm sensing range
- Non-flush installation type
- Switching frequency of 25 Hz with PNP normally open output
- IP68 rated enclosure for harsh environments
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from -25 °C to +75 °C
- IO-Link service interface for advanced diagnostics
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments minimizing failure and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMX12-16NPSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications in harsh environments.
