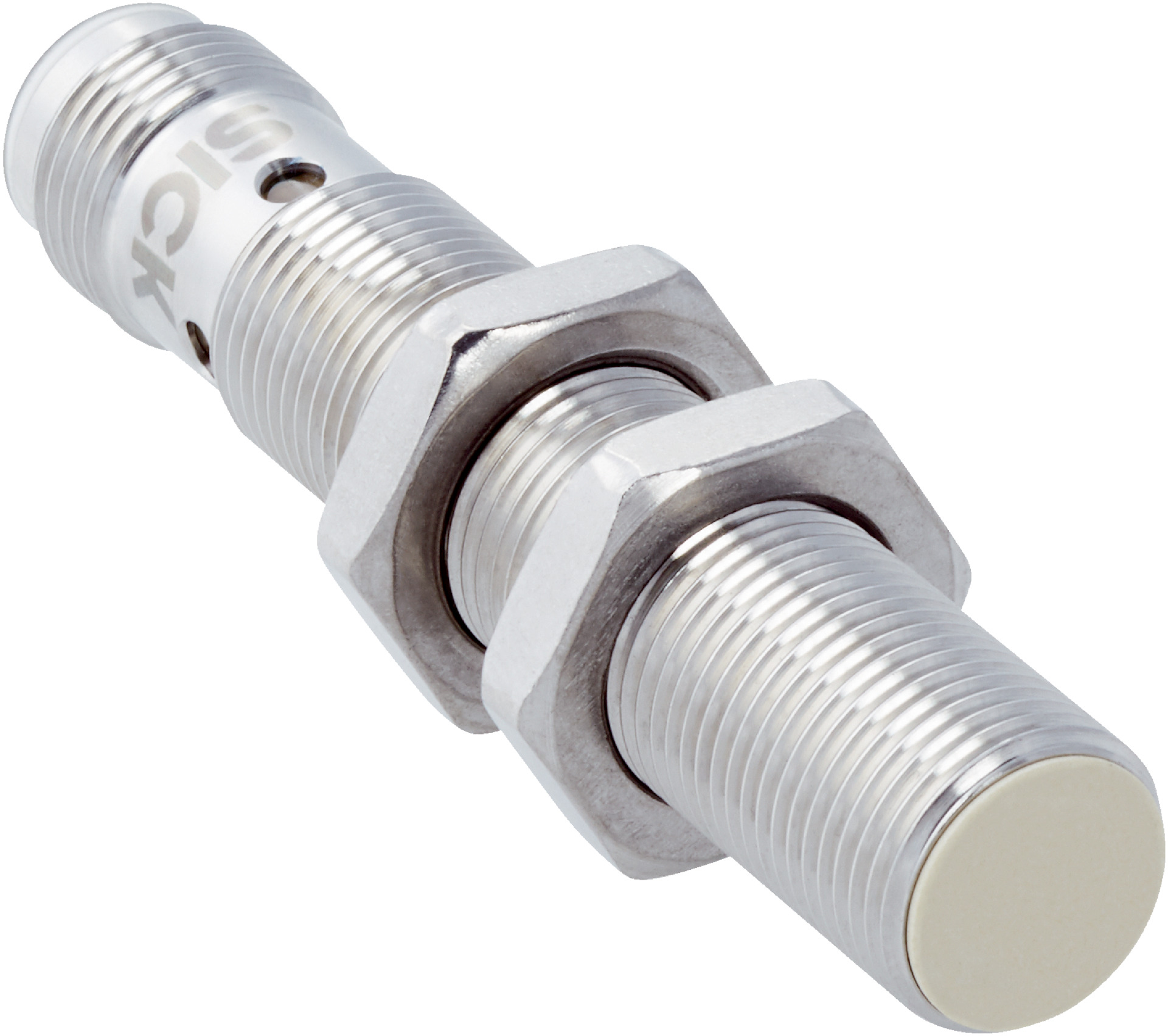

M12 Inductive Proximity Sensor | IP68 & IP69K Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for reliable detection in hygienic and washdown zones, featuring a robust IP68 and IP69K rating for protection against dust and high-pressure washdown. With a 4mm sensing range and a high switching frequency of 2,000 Hz, this sensor is perfect for industrial automation applications requiring precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V4A, DIN 1.4404 / AISI 316L
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type with 4 mm sensing range
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Supplied with V4A stainless steel mounting nuts
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring reliable proximity detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

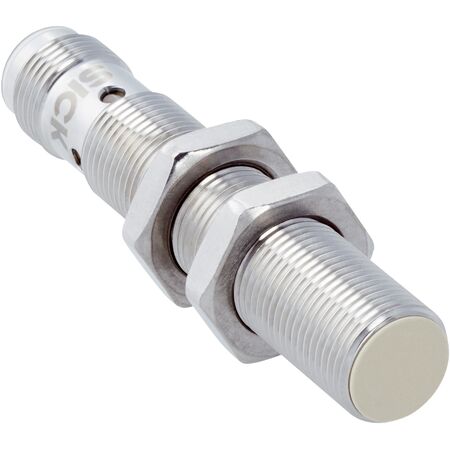

The SICK IMF12-04BPONC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
