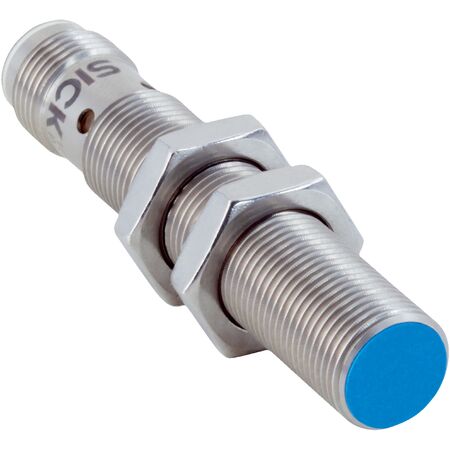

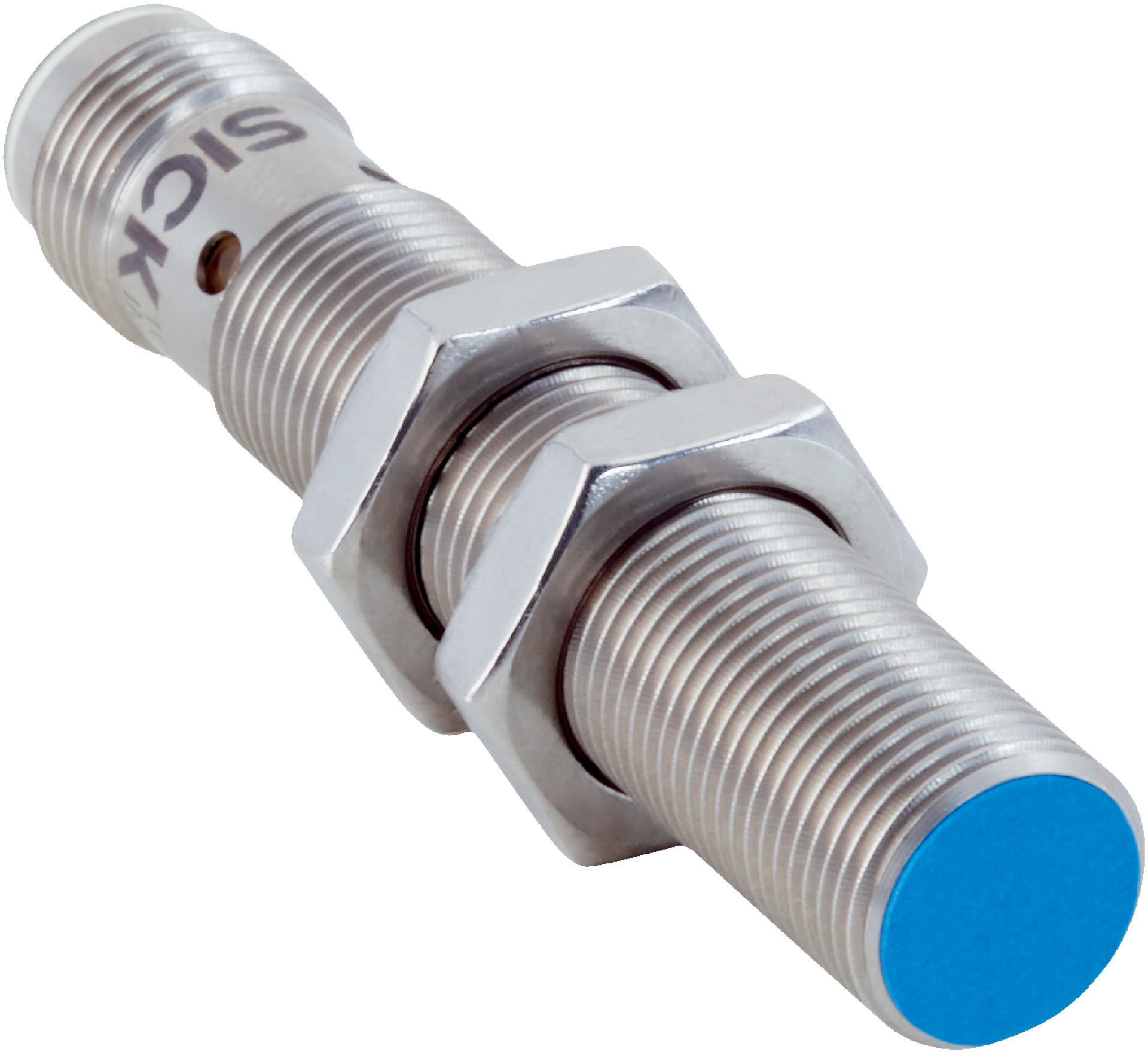

M12 Inductive Proximity Sensor | IP68 & IP69K Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for reliable sensing in harsh environments, featuring a 4mm sensing range and a high switching frequency of 2000Hz. With an IP68 and IP69K rating, it's perfect for mobile machines and hygienic washdown zones, ensuring durability and performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- Operating temperature: -40°C to +100°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Housing length: 65 mm
- Thread length: 48 mm
- Protection class: III
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type with 4 mm sensing range
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature extremes
- Stainless steel V4A housing and plastic sensing face for durability
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant with wide operating temperature range (-40°C to +100°C)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure proper function and safety.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMS12-04BPONC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
