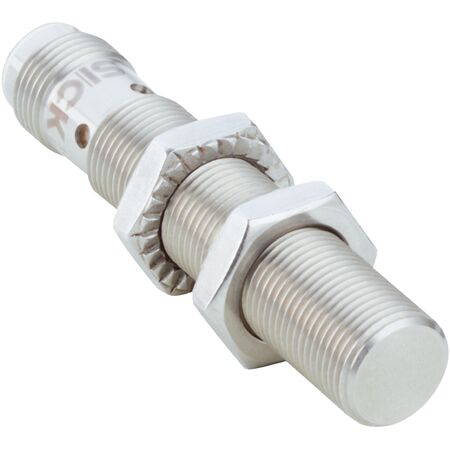

M12 Inductive Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection against dust and water. With a sensing range of 4 mm and a switching frequency of 75 Hz, it's perfect for applications in harsh environments, including those with coolants and lubricants. Built for durability, this sensor ensures long-lasting performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally closed
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Protection class: III
- Dimensions (H x L x W): 12mm x 64mm x 12mm
- Weight: 0.1 kg
Key Features
- Flush installation with M12 x 1 metric thread housing
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz with PNP normally closed output
- IP68 and IP69K rated for high protection against dust and water
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMI12-04BPOVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
