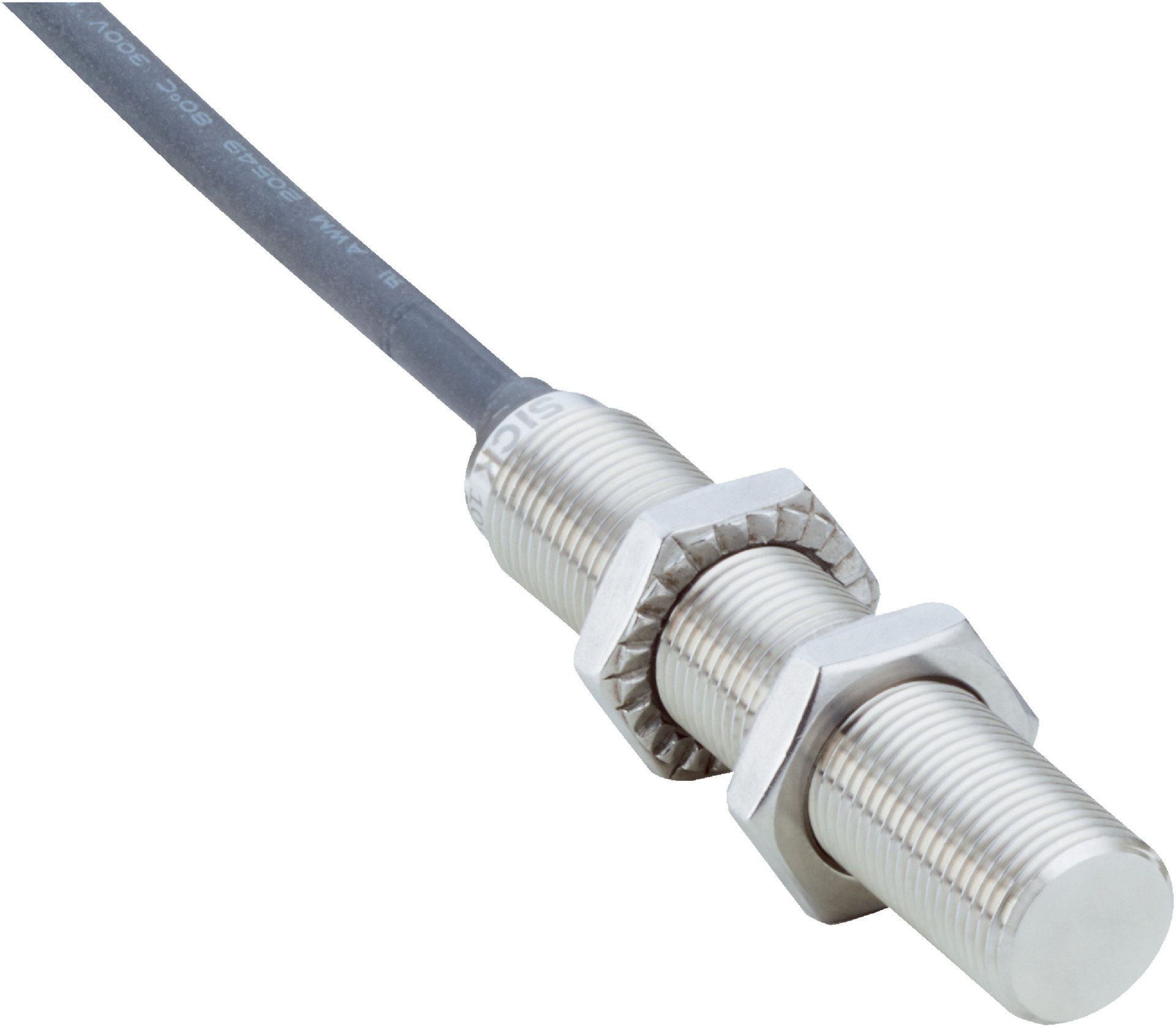

M12 Inductive Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K enclosure rating for high protection in harsh environments. With a sensing range of 4 mm and a switching frequency of 75 Hz, it’s perfect for object detection in areas with coolants and lubricants, ensuring reliable performance even under difficult conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm, conductor size 0.34 mm²
- Protection class: III
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Switching output: PNP normally closed
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 12mm x 59mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz with PNP normally closed output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant to coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

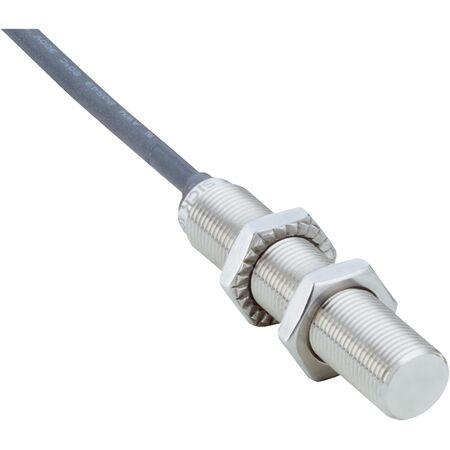

The SICK IMI12-04BPOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
