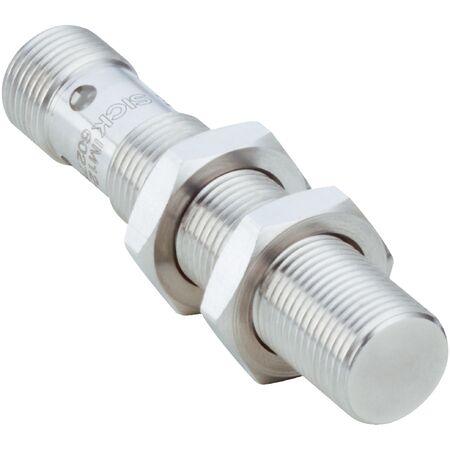

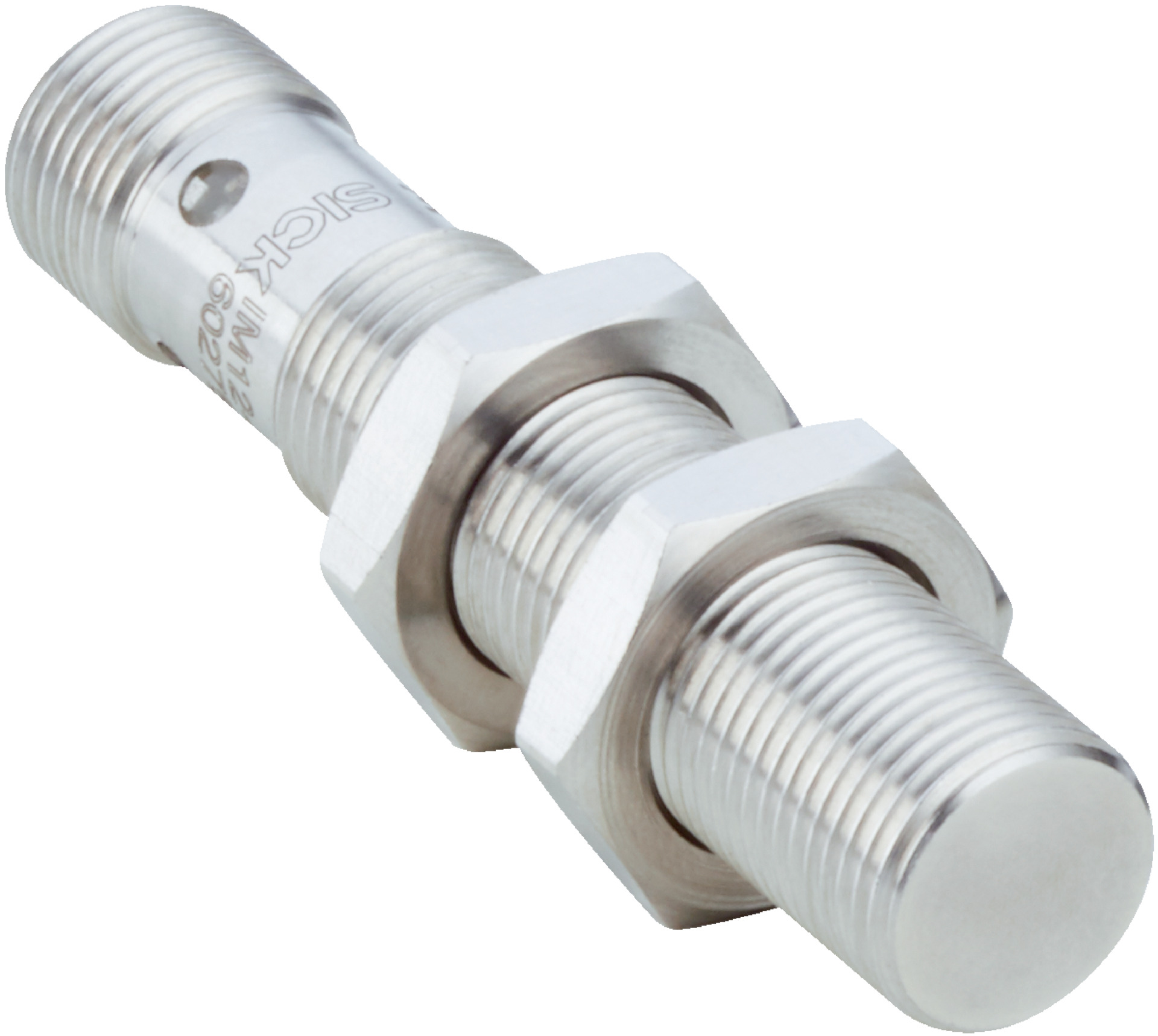

M12 Inductive Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 6mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection against dust and water. With a sensing range of 6mm and a PNP normally open output, it's perfect for detecting metal objects in harsh environments, ensuring reliable performance even in the presence of coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Switching output: PNP, normally open (NO)
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP68, IP69K
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 12mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
- Pressure resistance up to 80 bar
- Switching frequency of 600 Hz
- PNP switching output with NO function
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for detecting metal objects
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IM12-06BPS-VC1 inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable metal object detection in harsh environments.
