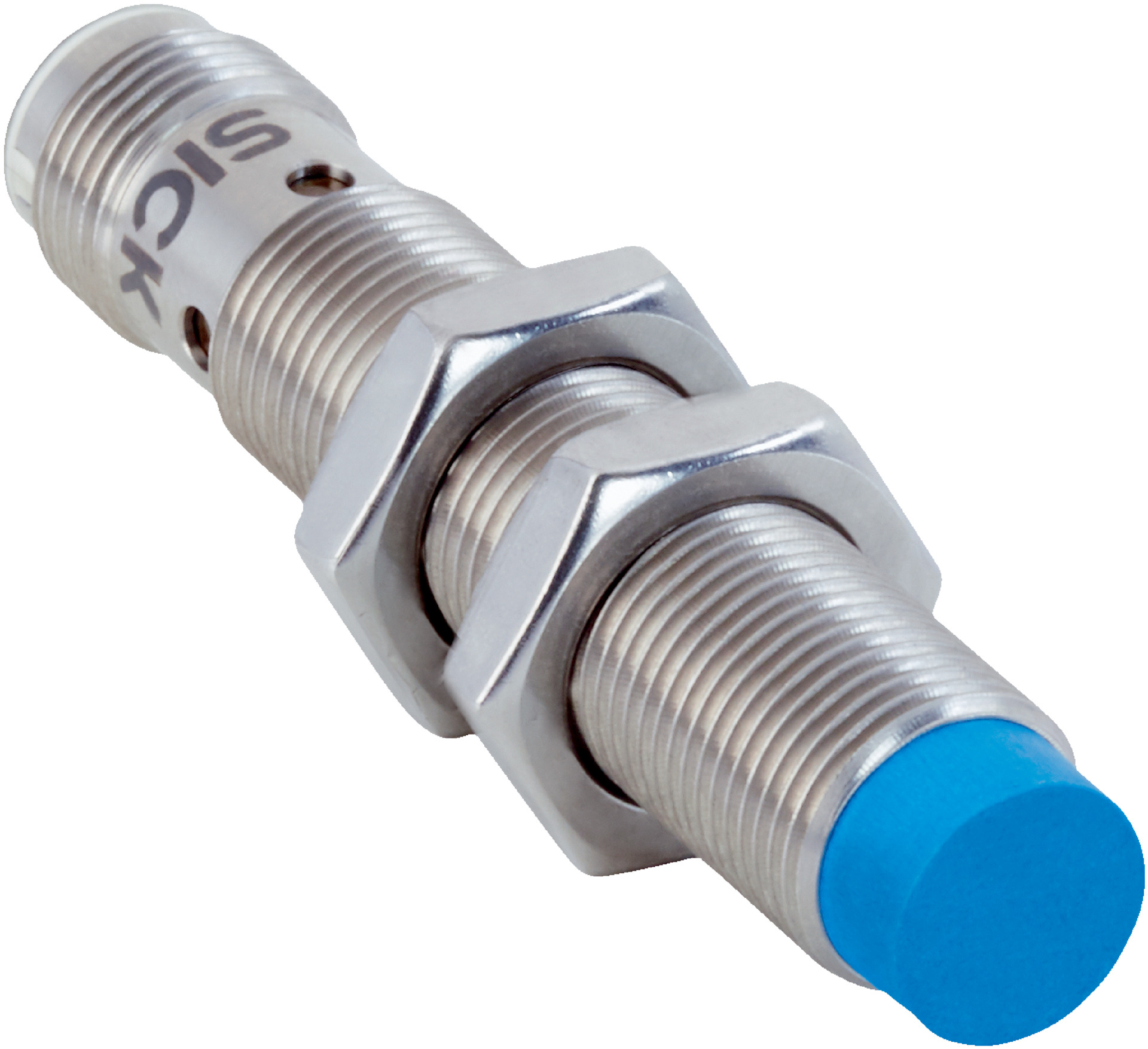

M12 Inductive Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 8mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for robust sensing in harsh environments, featuring an IP68 and IP69K enclosure rating for high protection. With a sensing range of 8 mm and a durable stainless steel housing, it's perfect for mobile machines and applications exposed to coolants and lubricants. Built for reliability, this sensor ensures optimal performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- Operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency up to 2,000 Hz
- PNP switching output with NC output function
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant withstanding harsh environments
- Wide ambient operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

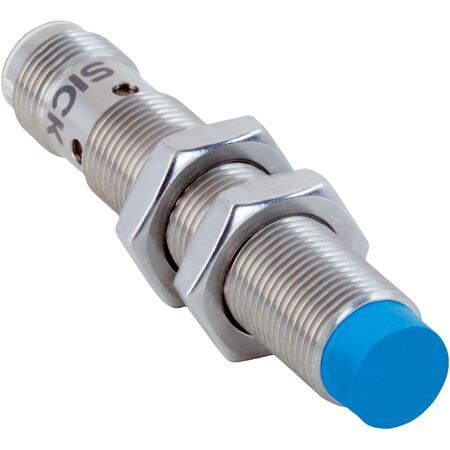

The SICK IMS12-08NPOVC0S inductive sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
