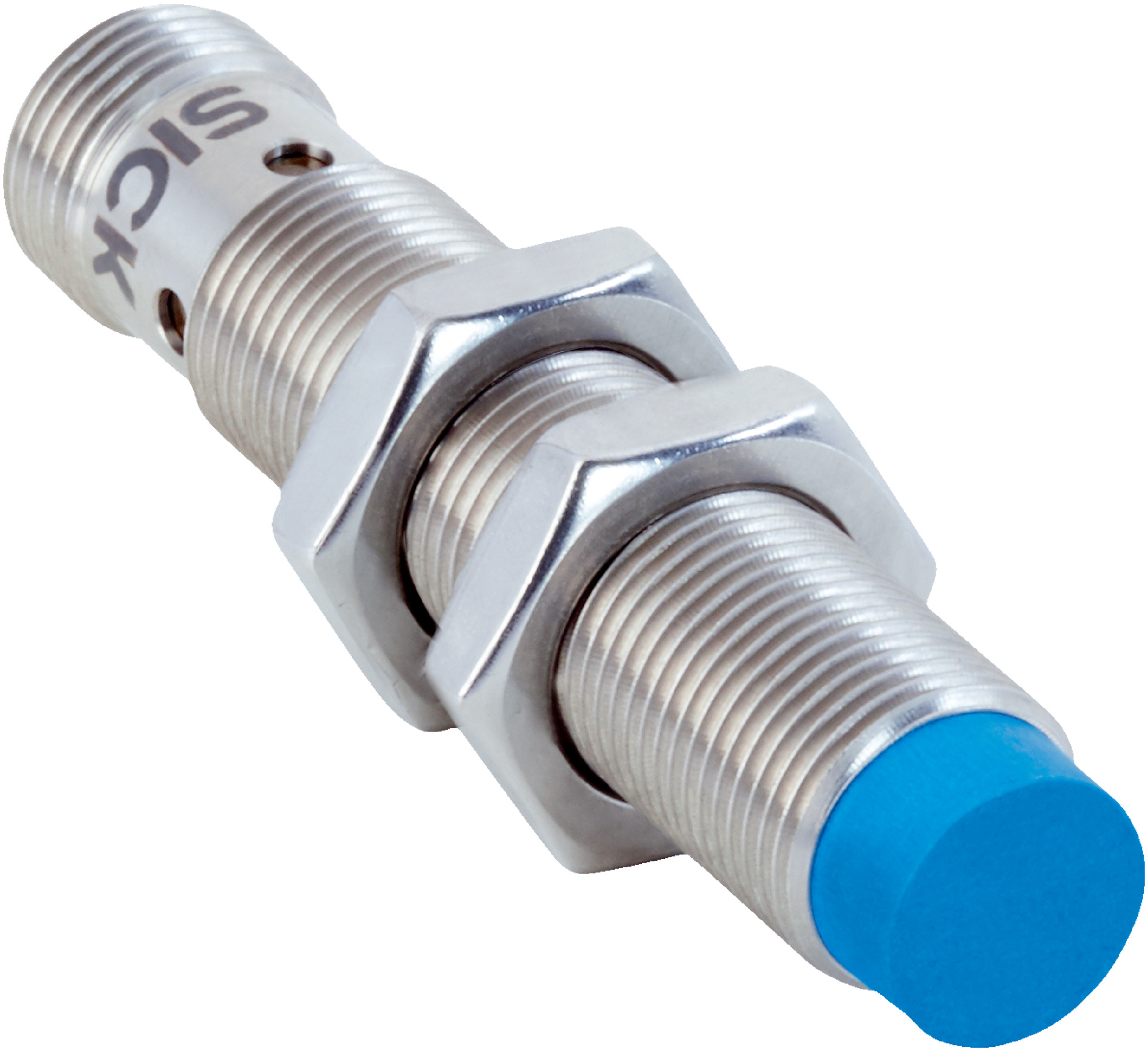

M12 Inductive Proximity Sensor | Non-Flush Design | 8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a non-flush installation type and an 8mm sensing range. With an IP67/IP68/IP69K rating, it withstands harsh environments, making it ideal for mobile machinery and applications involving coolants and lubricants. Built for durability, this sensor ensures minimal downtime and high performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- LED indication: Yellow LED for switching status
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency up to 2,000 Hz
- NPN switching output with normally closed (NC) function
- Connection via male M12 4-pin connector
- IP67, IP68, and IP69K rated for high protection against dust and water
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connections.
Applications
- Industrial automation for object detection
- Mobile machinery sensing in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

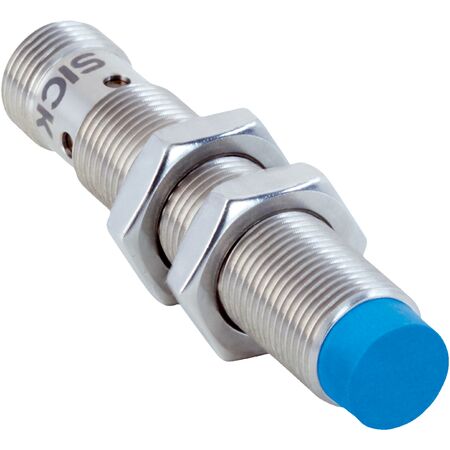

The SICK IMG12-08NNOZC0S sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
