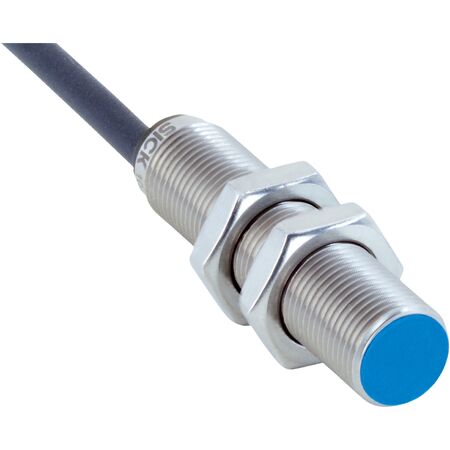

M12 Inductive Proximity Sensor | NPN Normally Open Output | IP67, IP68, IP69K Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and NPN normally open output. With a robust IP67, IP68, and IP69K rating, it withstands harsh environments and coolant lubricants, making it ideal for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally open (NO)
- Switching frequency: 2,000 Hz
- Connection type: 3-wire cable, 2 m length, PUR material
- Voltage drop: ≤ 2 V
- Current rating: Continuous current ≤ 200 mA, No load current ≤ 10 mA
- Protection rating: IP67, IP68, IP69K
- Operating temperature range: -40°C to +85°C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Shock resistance: 100 g, vibration resistance: 60 g peak
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 4 mm sensing range and 3.24 mm safe sensing range
- Flush installation type with IP67, IP68, and IP69K enclosure ratings
- High switching frequency of 2,000 Hz with NPN normally open output
- Resistant against coolant lubricants and temperature extremes from -40°C to +85°C
- Shock and vibration resistant according to EN 60068 standards
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMG12-04BNSZU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
