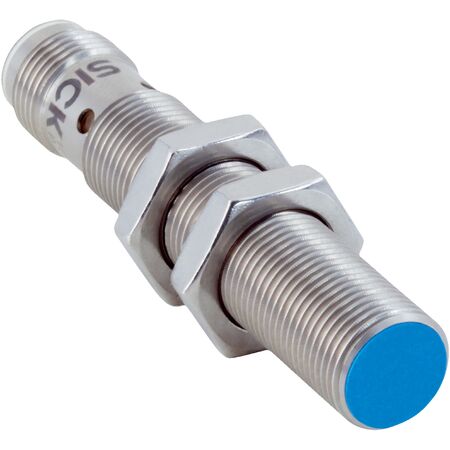

M12 Inductive Proximity Sensor | NPN NC Output | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for robust sensing in challenging environments, featuring a 4mm sensing range and NPN normally closed output. With an IP68 and IP69K rating, it's perfect for mobile machines and hygienic zones, ensuring reliable performance even in harsh conditions. Built with a durable stainless steel housing, this sensor is resistant to cleaning agents and offers energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g peak
- EMC compliance with multiple international standards
- Protection class III
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Thread length: 48 mm
- Tightening torque max: 20 Nm
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 2,000 Hz
- NPN normally closed switching output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Stainless steel V4A housing and plastic sensing face
- Wide ambient operating temperature from -40 °C to +100 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connection for optimal sensor performance and safety.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMS12-04BNONC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic zone applications.
