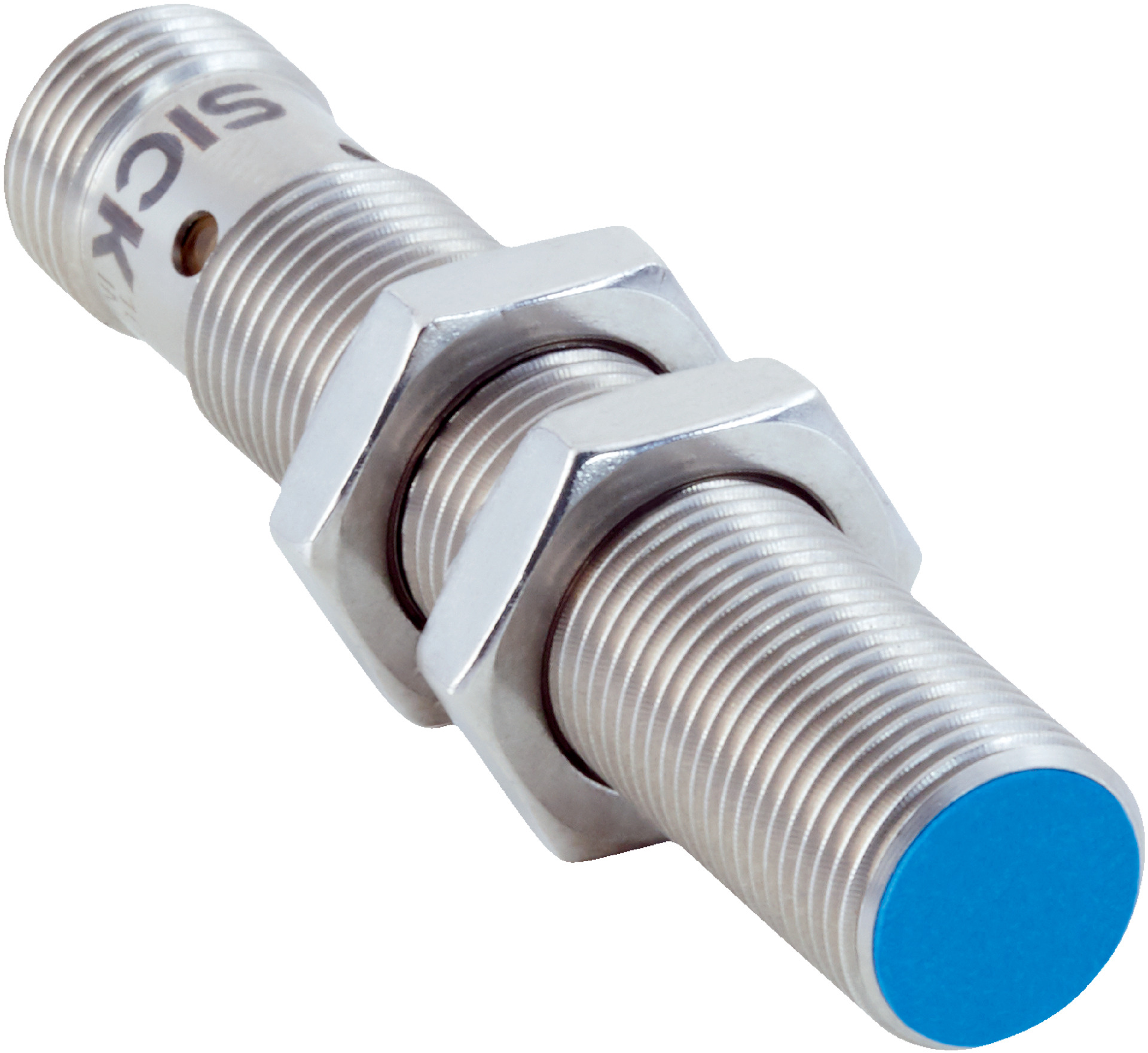

M12 Inductive Proximity Sensor | NPN Normally Closed Output | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust nickel-plated brass housing and a sensing range of 4 mm. With an NPN normally closed output and high protection ratings (IP67/IP68/IP69K), this sensor is perfect for harsh environments, including those with coolants and lubricants, ensuring durability and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally closed (NC)
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g, 2 ms sinusoidal shocks
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- MTTFD: 1,820 years
- Mission time: 20 years
- Dimensions (H x L x W): 65mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- Flush installation type with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- NPN switching output with normally closed (NC) function
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Mobile machinery sensing in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

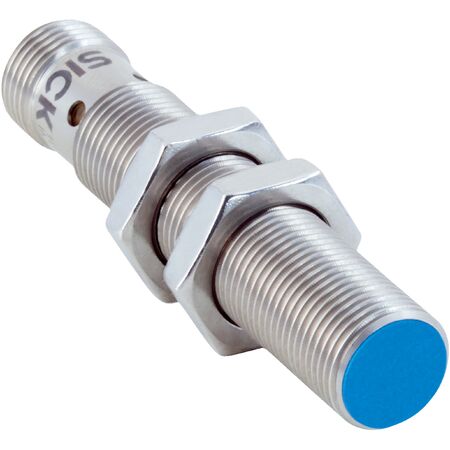

The SICK IMG12-04BNOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
