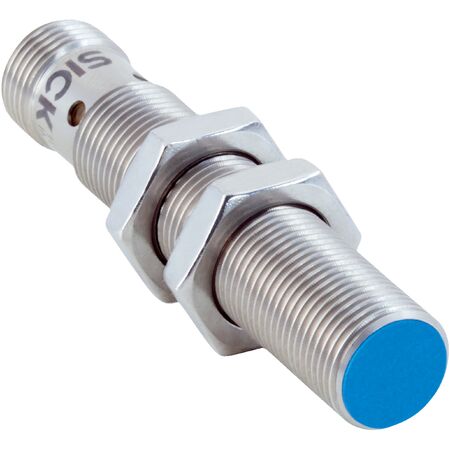

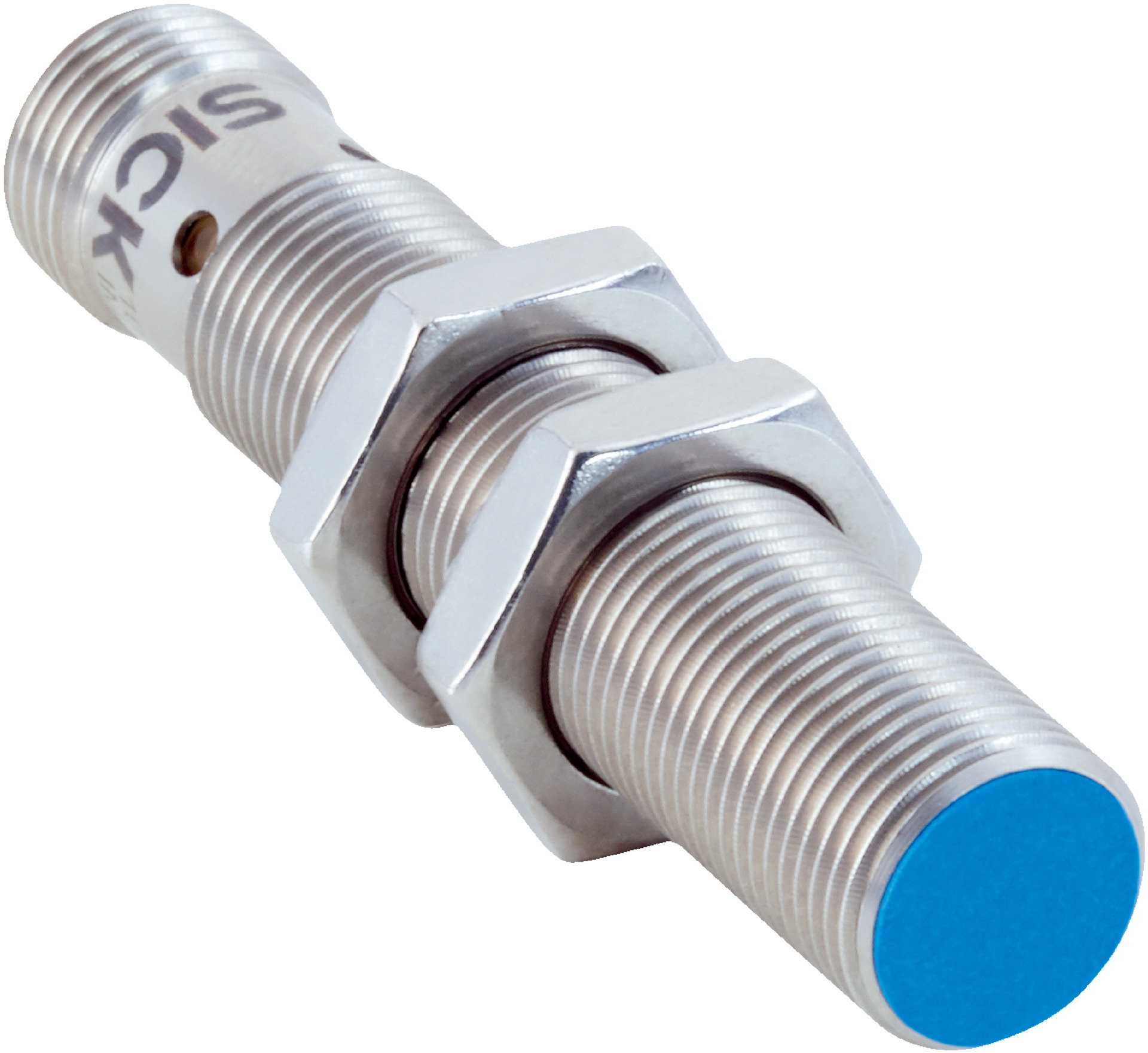

M12 Inductive Proximity Sensor | NPN Normally Open Output | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation and mobile machinery applications. With a robust IP67/IP68/IP69K rating and a switching frequency of up to 2,000 Hz, this sensor is perfect for harsh environments, ensuring durability against coolants and lubricants. Its nickel-plated brass housing and flush installation type make it an ideal choice for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open (NO)
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread size: M12 x 1
- Switching frequency: 2,000 Hz
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 4 mm sensing range
- Flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open (NO) switching output
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG12-04BNSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable object detection in harsh environments.
