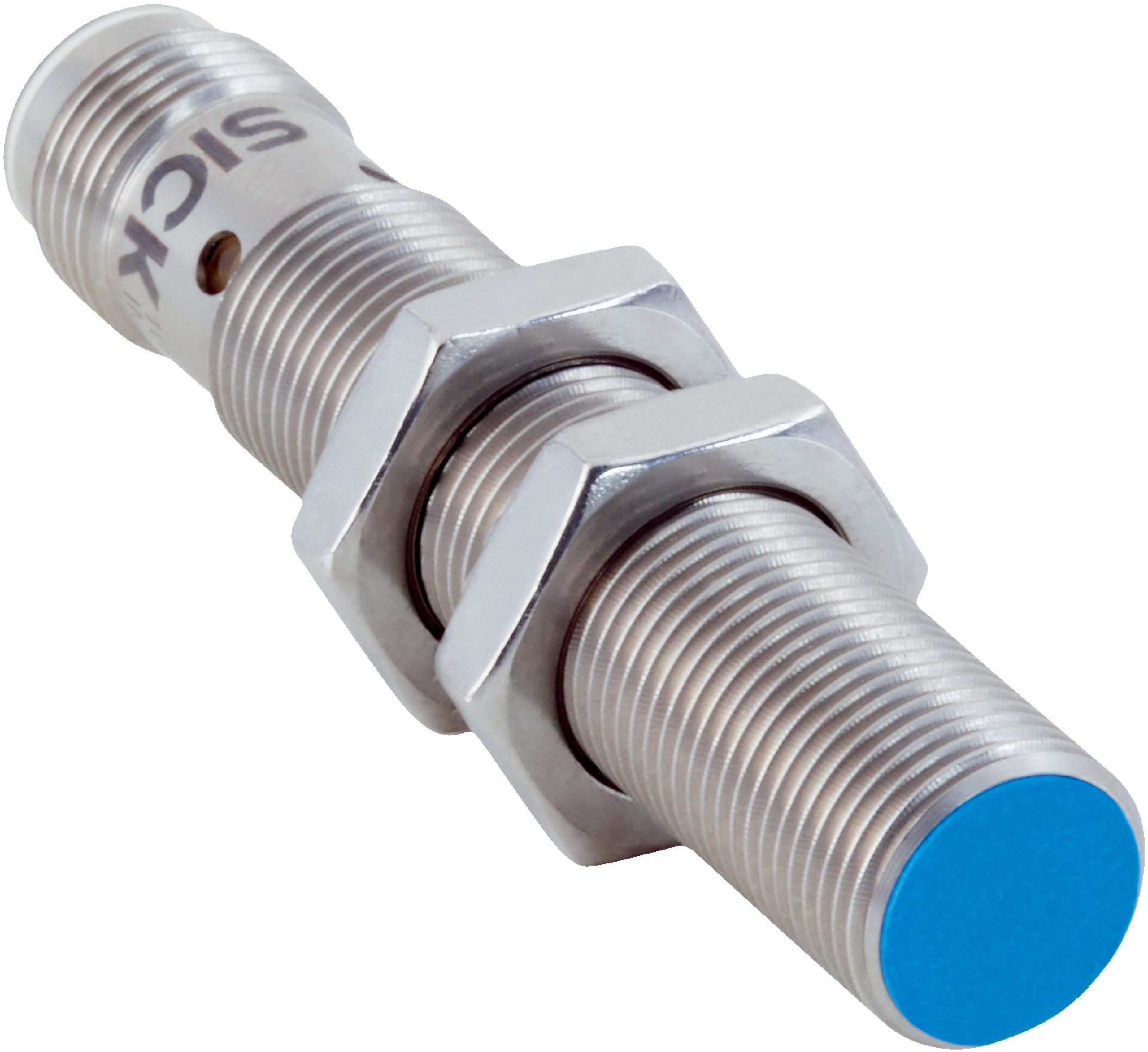

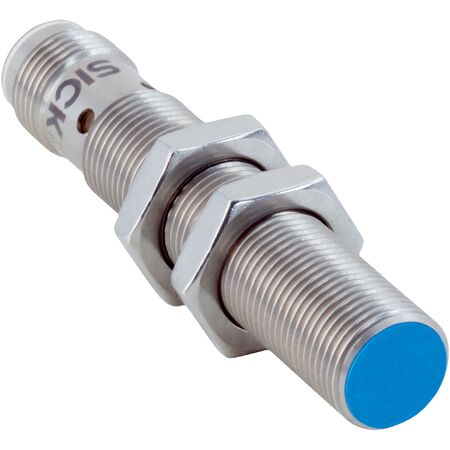

M12 Inductive Proximity Sensor | NPN Output | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable sensing in harsh environments, featuring a 4mm sensing range and NPN switching output. With an IP68 and IP69K rating, it's perfect for mobile machines and hygienic washdown zones, ensuring durability and performance even in difficult conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Switching frequency: 2,000 Hz
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Output function: Normally Open (NO), NPN switching output
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Operating temperature: -40°C to +100°C
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- EMC compliance with multiple standards including ECE-R10 and DIN ISO 11452-2
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type with 4 mm sensing range
- NPN switching output with NO function
- High switching frequency of 2,000 Hz
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature extremes
- Stainless steel V4A housing and plastic sensing face for durability
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant with wide operating temperature range (-40°C to +100°C)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without damage
- Long service life minimizes resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS12-04BNSNC0S inductive sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
