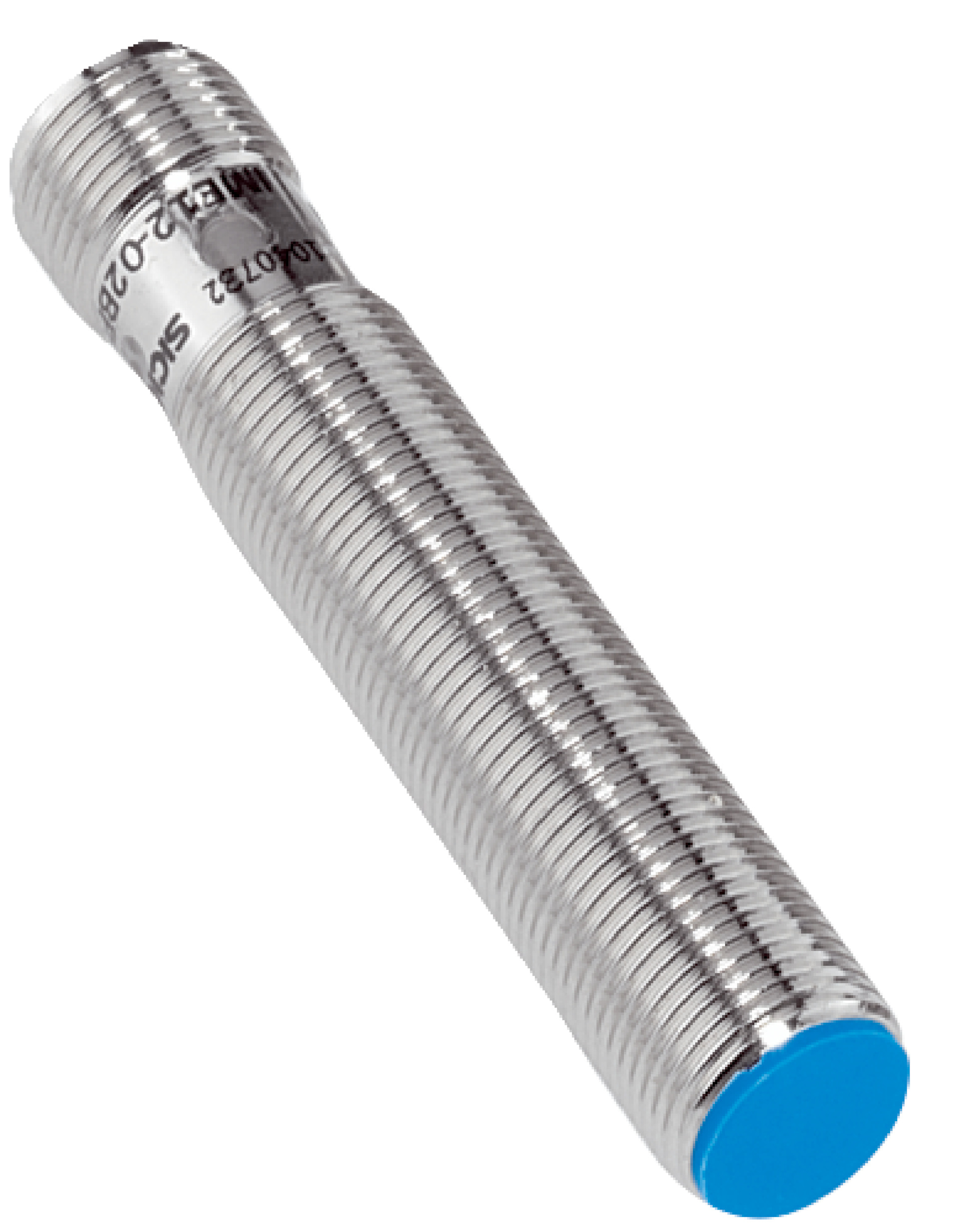

M12 Inductive Proximity Sensor | PNP Output | IP67 Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a PNP output and an IP67 rated enclosure, it ensures durability in harsh environments. Ideal for manufacturing process control and position sensing in machinery, this sensor features a sensing range of 4 mm and operates within a wide temperature range from -25 °C to +75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Inductive Proximity Sensor | PNP Output | IP67 Rated | 4mm Sensing Range | by SICK
Brand: SICK
SKU: 1040768
Alternatively Known As: M12 Inductive Proximity Sensor, PNP Proximity Sensor, Flush Mount Proximity Sensor, IME12 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Connection type: Male connector M12, 4-pin
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- EMC: According to EN 60947-5-2
- MTTFD: 1,735 years
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency of 2,000 Hz
- PNP switching output with NC output function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

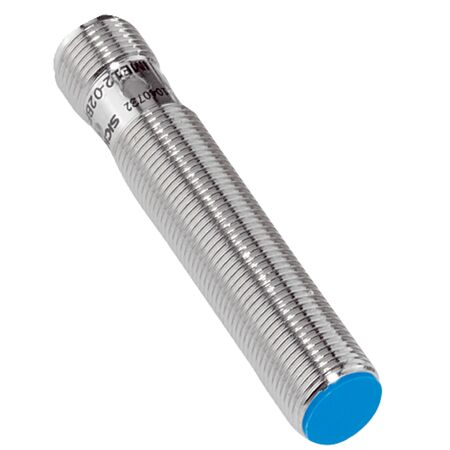

The SICK IME12-04BPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
