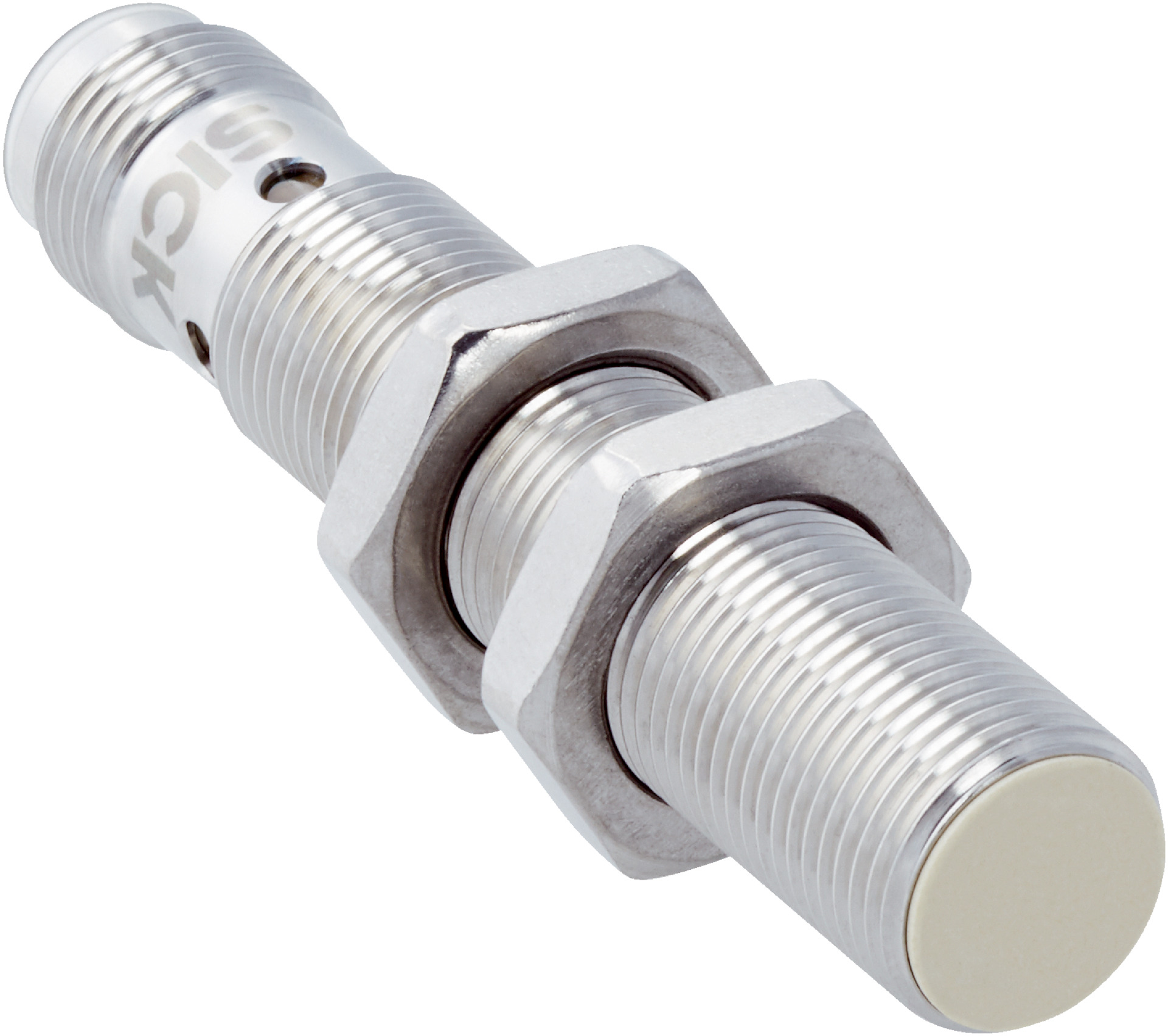

M12 Inductive Proximity Sensor | PNP Output | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation and hygienic zones. With a 4mm sensing range and a high switching frequency of 2,000 Hz, this sensor ensures precise performance even in challenging conditions. Its robust IP68 and IP69K rated enclosure protects against dust and high-pressure washdown, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Sensing range (Sn): 4 mm
- Safe sensing range (Sa): 3.24 mm
- Output function: Complementary PNP
- Connection type: Male connector M12, 4-pin
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Ambient operating temperature: -40 °C to +100 °C
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type with 4 mm sensing range
- High switching frequency of 2,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP68 and IP69K rated enclosure for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant
- Equipped with IO-Link communication interface
- Shock and vibration resistant with high durability
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring reliable object detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Resistant to cleaning agents enabling hygienic maintenance without damage
- Energy-efficient sensor operation reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

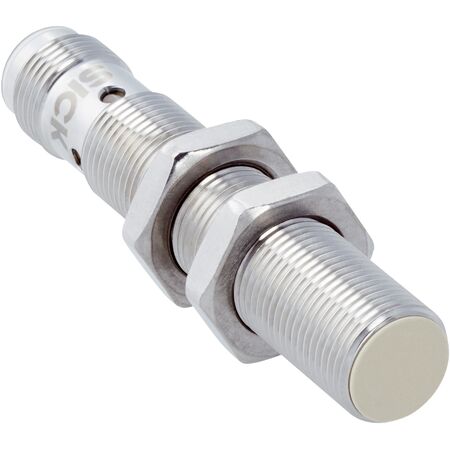

The SICK IMF12-04BPPNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
