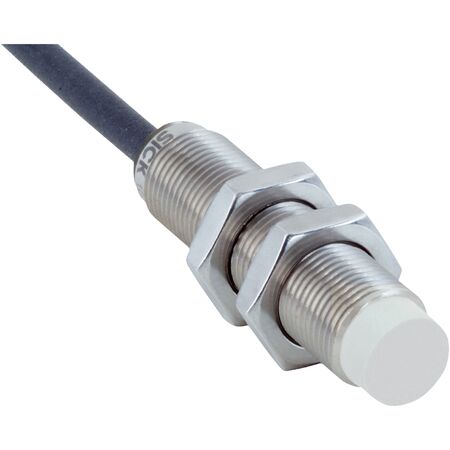

M12 Inductive Proximity Sensor | PNP Output | IP68 & IP69K Rated | 8mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable sensing in harsh environments, featuring a PNP complementary output and an impressive sensing range of 8 mm. With an IP68 and IP69K enclosure rating, it's perfect for hygienic and washdown zones, ensuring durability and performance in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Switching output: PNP complementary
- Connection type: Cable, 4-wire, 5 m length
- Enclosure rating: IP68 and IP69K
- Operating temperature range: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing range (Sn): 8 mm
- Safe sensing range (Sa): 6.48 mm
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency up to 2,000 Hz
- PNP complementary switching output
- Cable connection, 4-wire, 5 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Equipped with IO-Link communication interface
- Shock and vibration resistant
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting, ensuring correct alignment and secure mounting using supplied stainless steel nuts.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh cleaning agents reducing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMF12-08NPPNS5S inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
