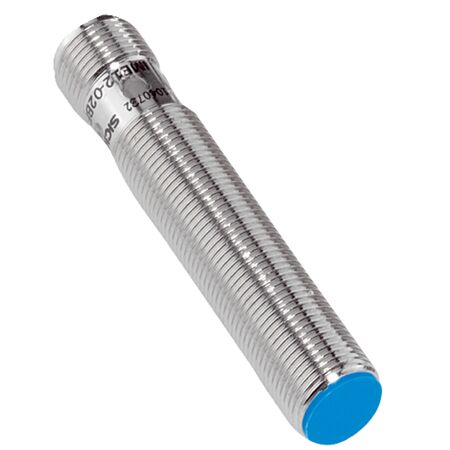

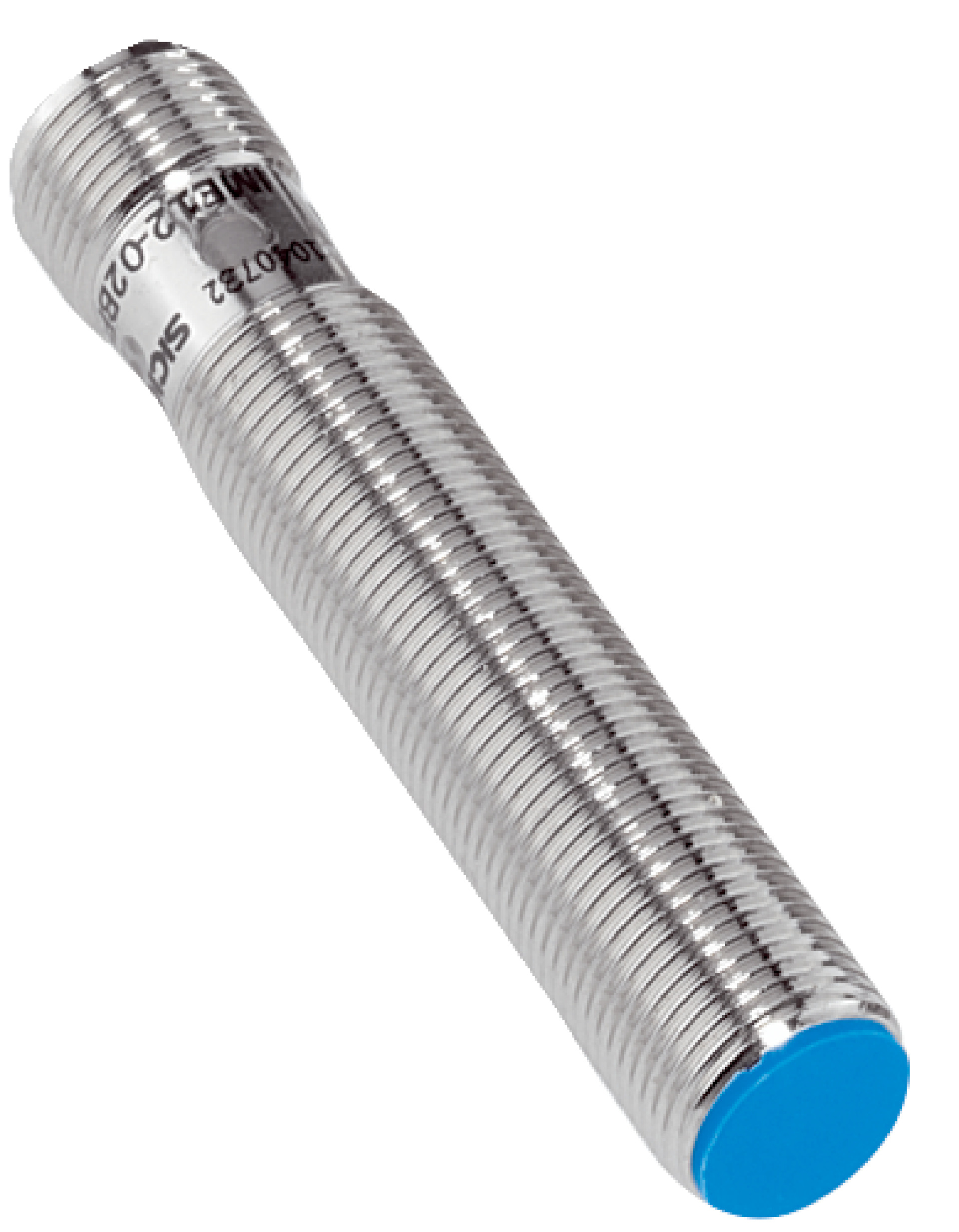

M12 Inductive Proximity Sensor | PNP NO Output | IP67 Rated | 6mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a PNP normally open output and a sensing range of 6 mm. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for manufacturing lines and safety systems. Built with a durable brass housing, this sensor offers long service life and energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +75 °C
- Storage temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Quasi-flush installation type
- Switching frequency up to 800 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection type
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME12-06BPSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
