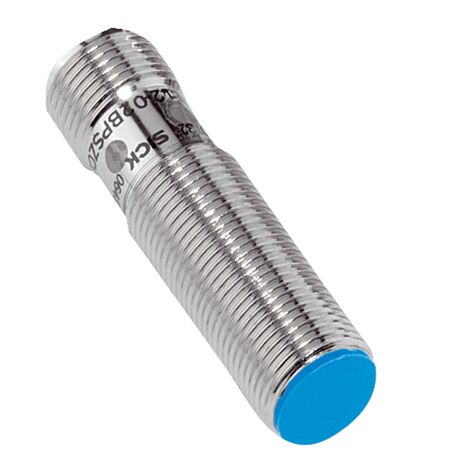

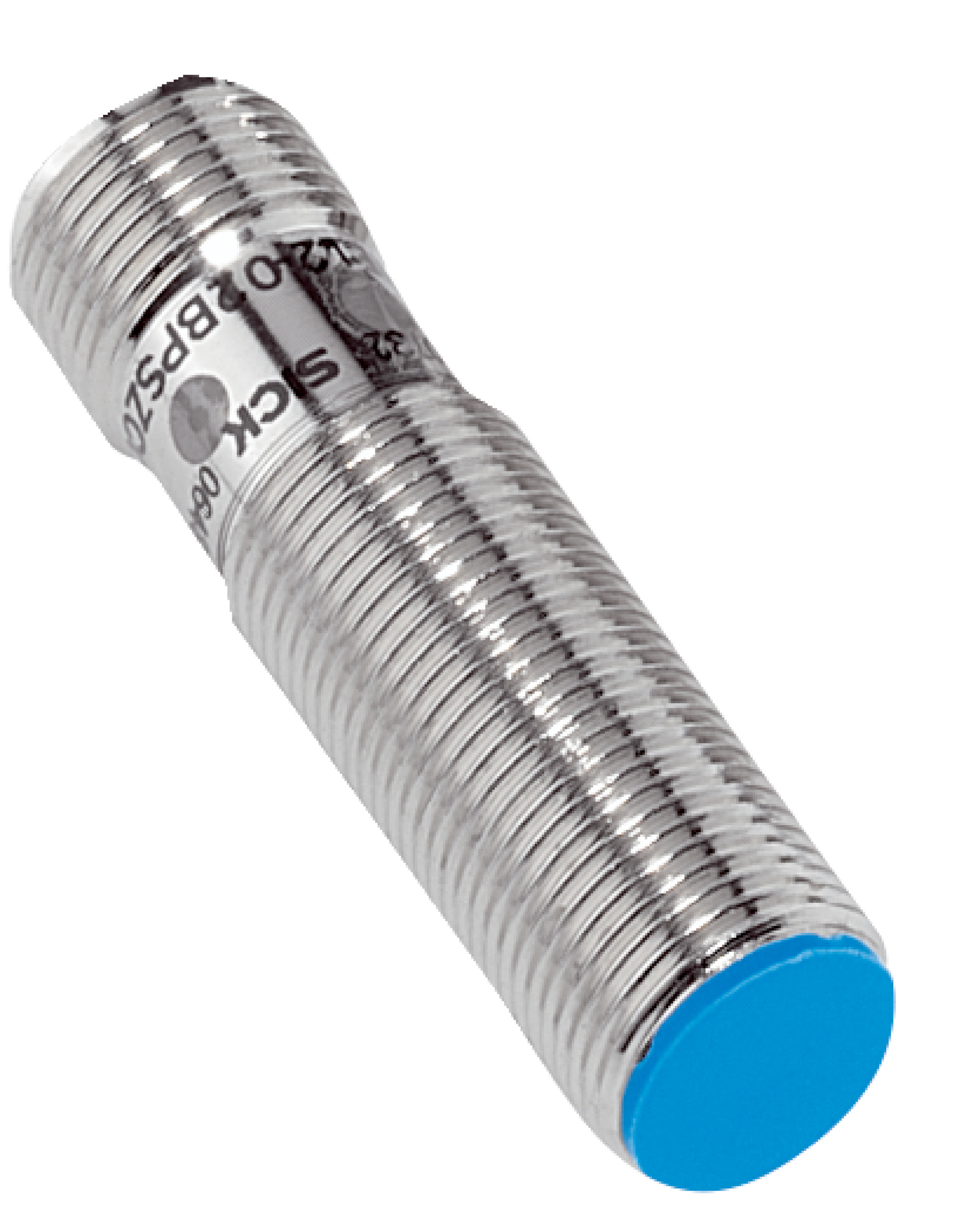

M12 Inductive Proximity Sensor | Short Body | 2mm Sensing Range | IP67 Rated | by SICK
The M12 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short body and a sensing range of 2 mm. With an IP67 rating for dust and water protection, this sensor is perfect for flush mounting in tight spaces, ensuring reliable performance in manufacturing lines and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Inductive Proximity Sensor | Short Body | 2mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040739
Alternatively Known As: M12 Inductive Proximity Sensor, Short Body Inductive Sensor, NPN NO Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 46 mm
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 46mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open switching output
- Male M12 4-pin connector
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Brass nickel-plated housing with plastic PA 66 sensing face
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-02BNSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
