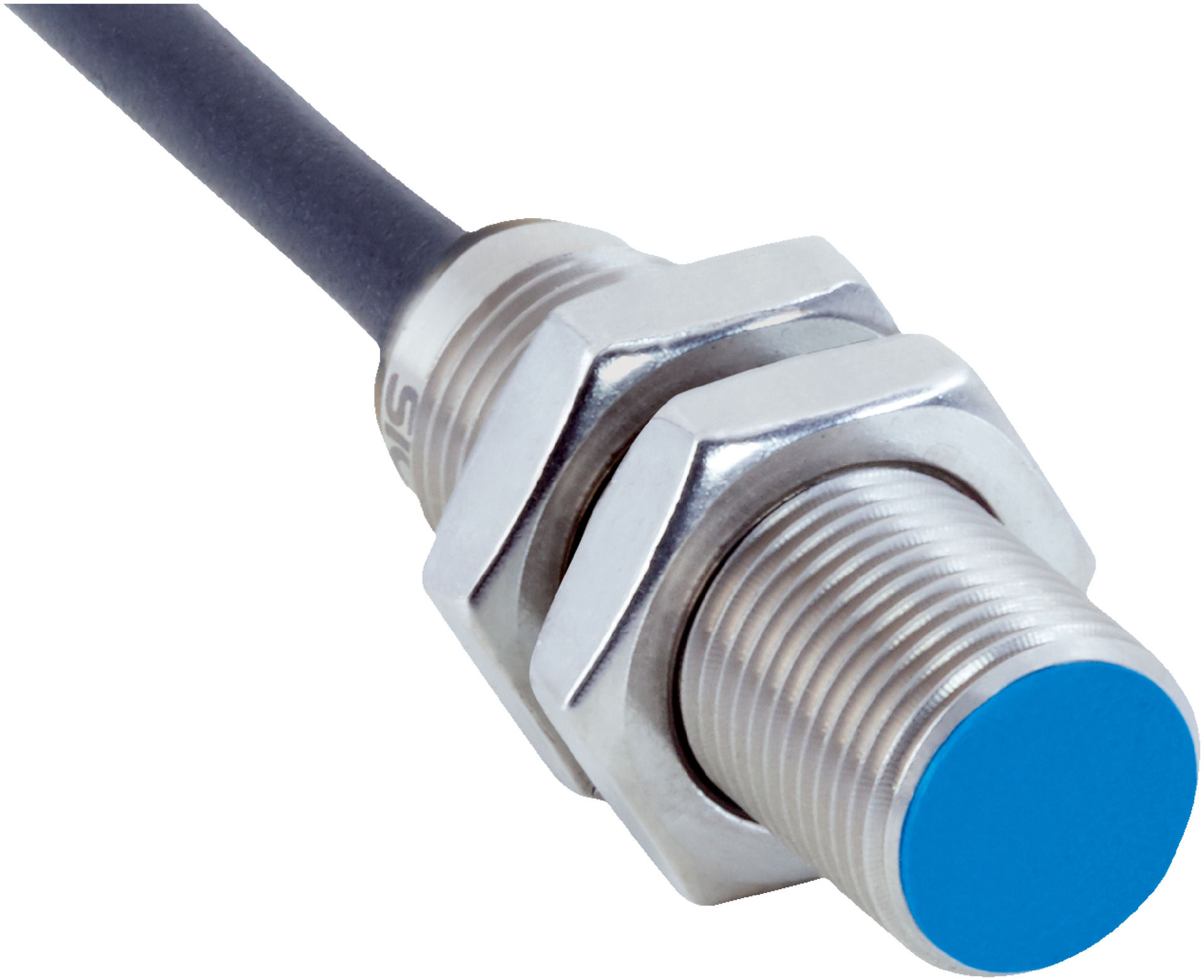

M12 Inductive Proximity Sensor | Short-Body Design | 4mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 4 mm, it operates effectively in harsh environments, including those with coolant and lubricants. This sensor features a high switching frequency of 2,000 Hz and is built to withstand extreme temperatures from -40 °C to +85 °C, making it ideal for mobile machines and robust applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock resistance: 60 g peak vibration, 100 g shock
- Protection class: III
- LED indication: Yellow LED permanently on when switching output active
- Dimensions (H x L x W): 35mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for robust protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- LED yellow indication for switching status
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in coolant and lubricant zones
- Harsh environments requiring resistant sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing risk of failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

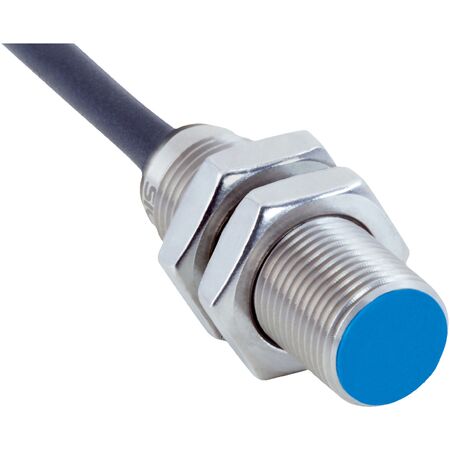

The SICK IMG12-04BPOZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
