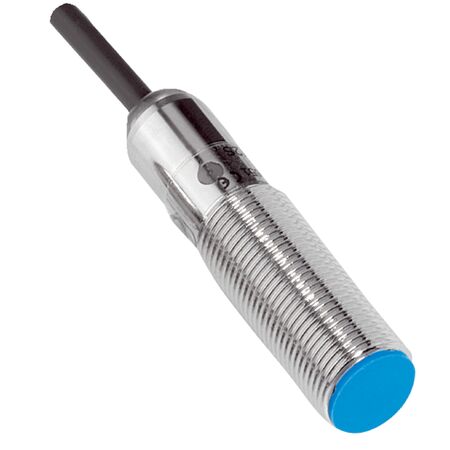

M12 Inductive Proximity Sensor | Short Body | 4mm Sensing Range | IP67 Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short body with a 4mm sensing range and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 2,000 Hz and NPN normally open output, it's perfect for manufacturing lines and automation systems requiring flush installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Inductive Proximity Sensor | Short Body | 4mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040773
Alternatively Known As: M12 Inductive Proximity Sensor, Short Body Inductive Sensor, NPN NO Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Thread size: M12 x 1
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Switching frequency: 2,000 Hz
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Cable length: 2 m, PVC cable
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing with brass, nickel-plated material
- Flush installation type with 4 mm sensing range and 3.24 mm safe sensing range
- High switching frequency of 2,000 Hz with NPN normally open output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g and 11 ms
- Cable connection with 3-wire, 2 m PVC cable
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-04BNSZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable metal object detection.
