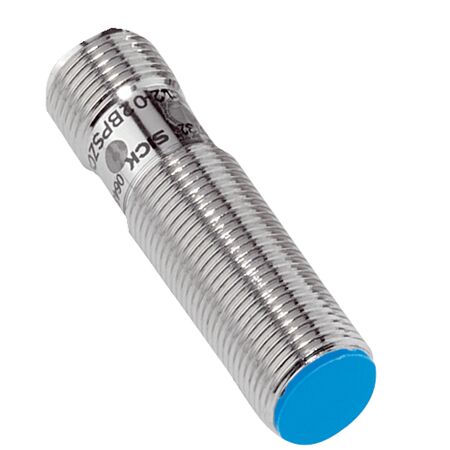

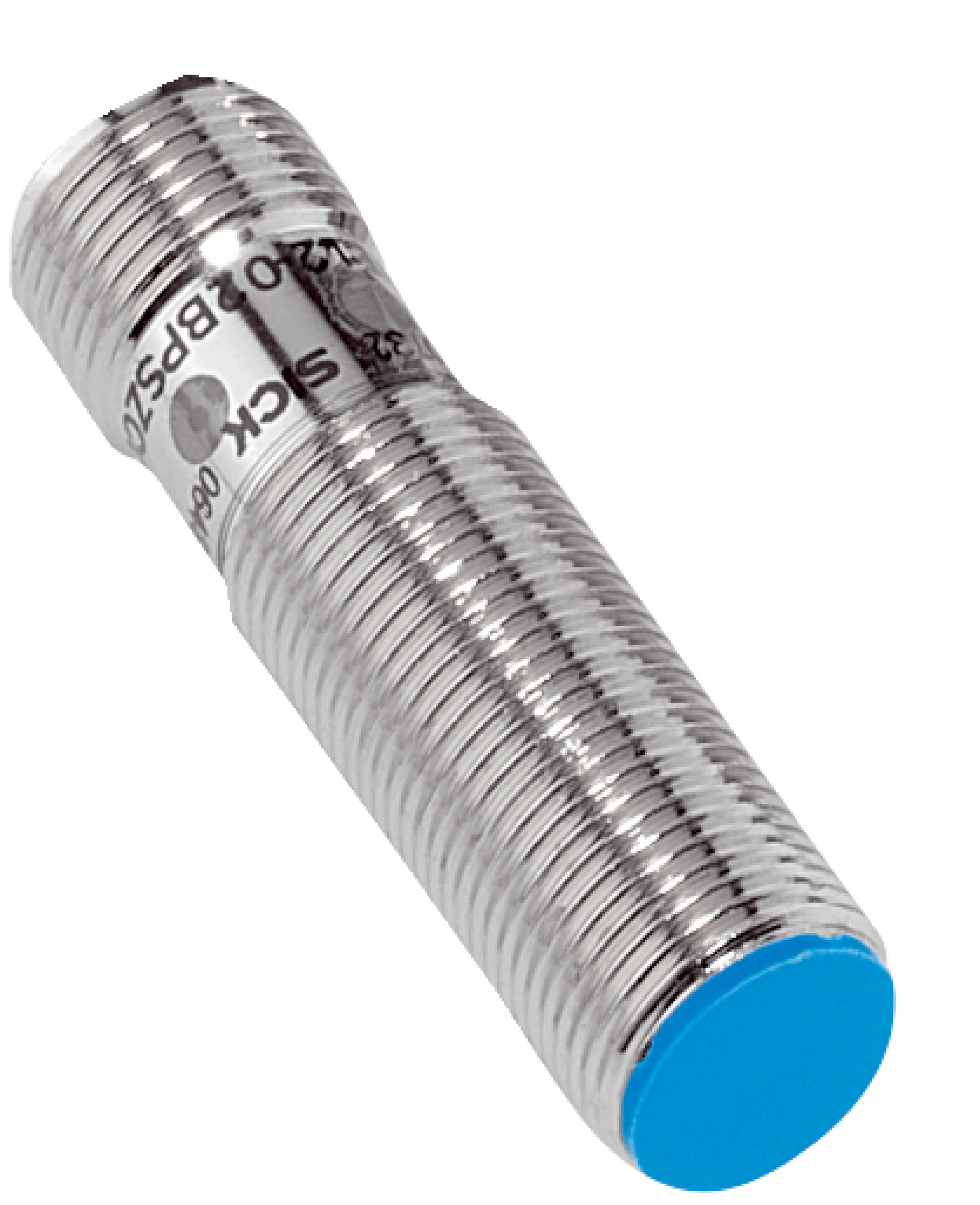

M12 Inductive Proximity Sensor | Short Body Design | 4mm Sensing Range | IP67 Rated | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a short body housing and a sensing range of 4 mm. With an IP67 rating for dust and water protection, this sensor is perfect for flush mounting in tight spaces, ensuring reliable metal detection in manufacturing lines and machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Inductive Proximity Sensor | Short Body Design | 4mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1044447
Alternatively Known As: M12 Inductive Proximity Sensor, Short Body Inductive Sensor, PNP Inductive Sensor M12, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 28 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Brass nickel-plated housing with plastic PA 66 sensing face
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Includes two brass nickel-plated mounting nuts
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME12-04BPSZT0KS08 inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable metal object detection.
