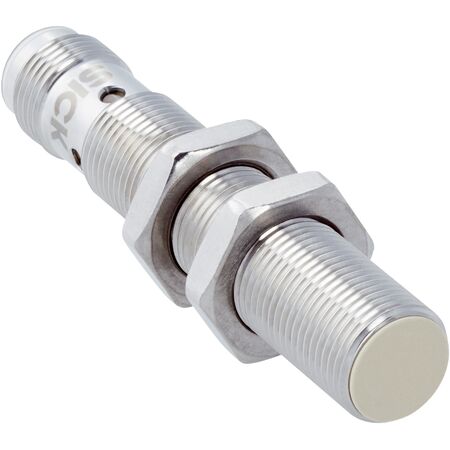

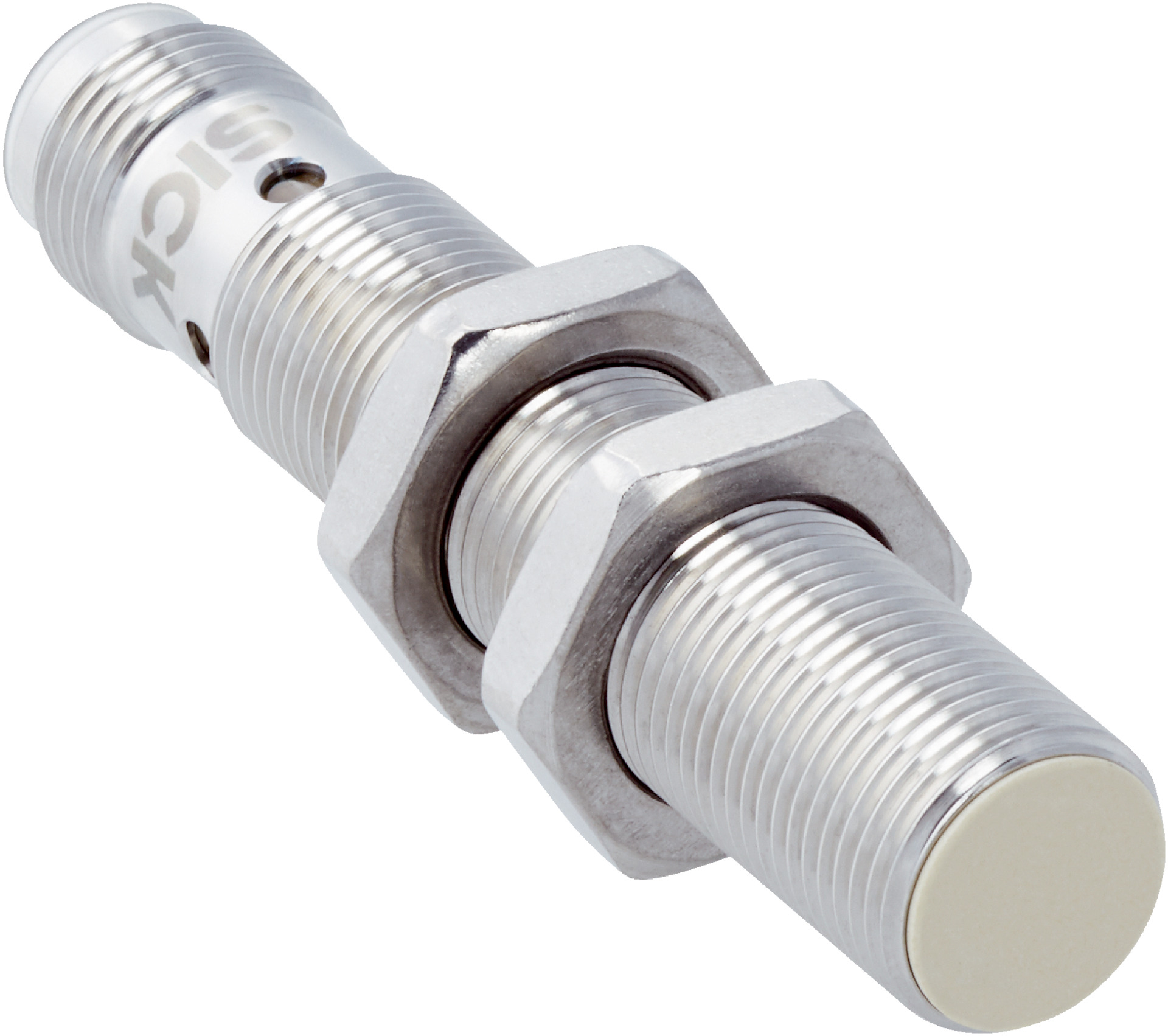

M12 Inductive Proximity Sensor | Short Body Design | 4mm Sensing Range | IP68 & IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for robust industrial automation, featuring a short body design and a sensing range of 4 mm. With an IP68 and IP69K rating, it's perfect for hygienic and washdown zones, ensuring reliable performance even in challenging conditions. Built with a durable stainless steel housing, this sensor is resistant to harsh cleaning agents, making it a long-lasting solution for precise object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 45mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Equipped with IO-Link communication interface
- Shock and vibration resistant with high durability
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Resistant to harsh cleaning agents reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMF12-04BPPNC0K inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
