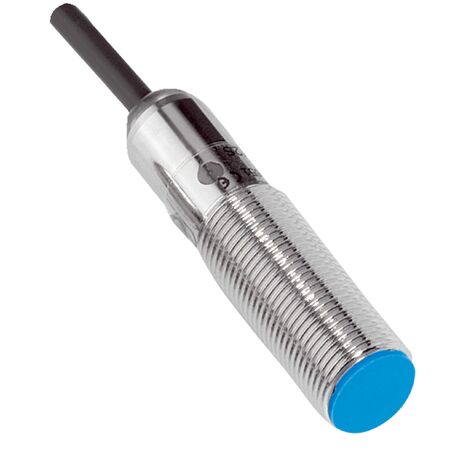

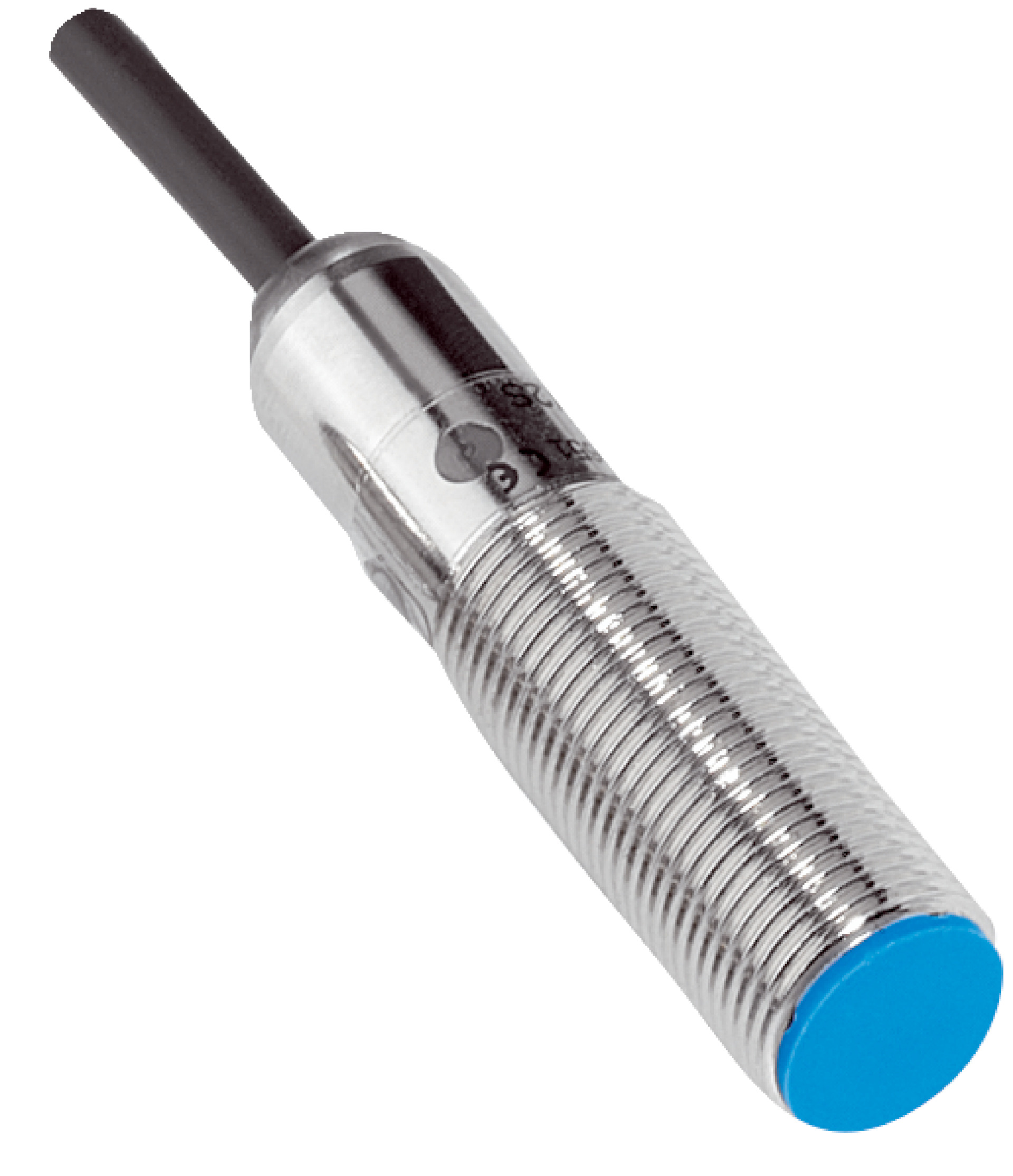

M12 Inductive Proximity Sensor | Short Body Design | 6mm Sensing Range | 800Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short body design and a sensing range of 6 mm. With a high switching frequency of 800 Hz and PNP normally closed output, it's perfect for position sensing and machine safety applications. Built to withstand harsh environments, this sensor is IP67 rated for dust and water protection, ensuring reliable performance in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Quasi-flush
- Switching frequency: 800 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, Normally Closed (NC)
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Cable diameter: 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 44 mm
- Thread length: 29 mm
- Tightening torque max: 12 Nm
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing
- Sensing range of 6 mm with triple sensing range feature
- Quasi-flush installation type
- High switching frequency of 800 Hz
- PNP normally closed output with 3-wire DC connection
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass nickel-plated housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME12-06BPOZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
