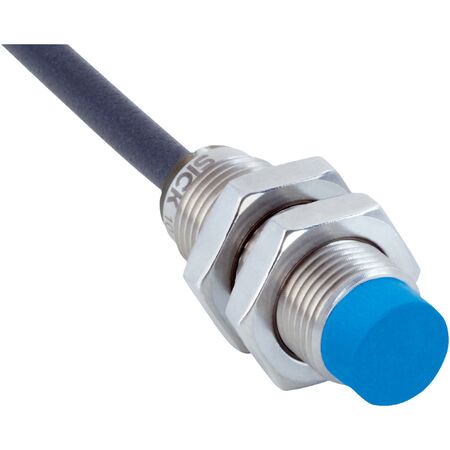

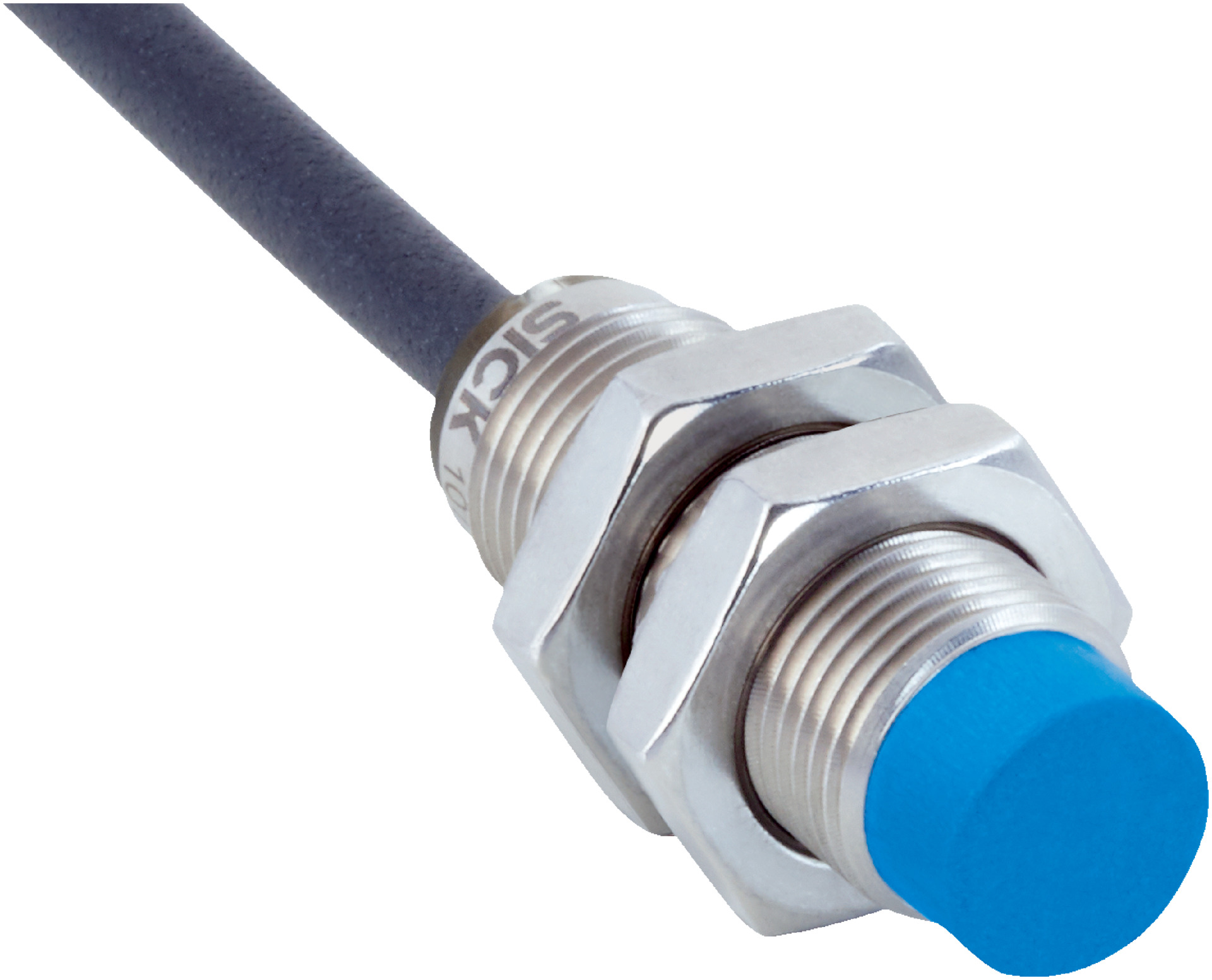

M12 Inductive Proximity Sensor | Short-body Design | 8mm Sensing Range | 2000Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and an 8mm sensing range. With a high switching frequency of 2000Hz and an IP67/IP68/IP69K enclosure rating, it excels in harsh environments, making it ideal for mobile machines and applications requiring robust sensing capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Sensing range (Sn): 8 mm
- Safe sensing range (Sa): 6.48 mm
- Output function: Normally closed (NC), NPN
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Cable: PUR, 3-wire, 2 m length, 0.25 mm² conductor size
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Protection class: III
- Short-circuit and power-up pulse protection included
- MTTFD: 1,820 years
- Mission time: 20 years
- Dimensions (H x L x W): 35mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type with sensing range of 8 mm
- High switching frequency of 2,000 Hz
- NPN normally closed switching output
- Cable connection type with 3-wire, 2 m PUR cable
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG12-08NNOZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
