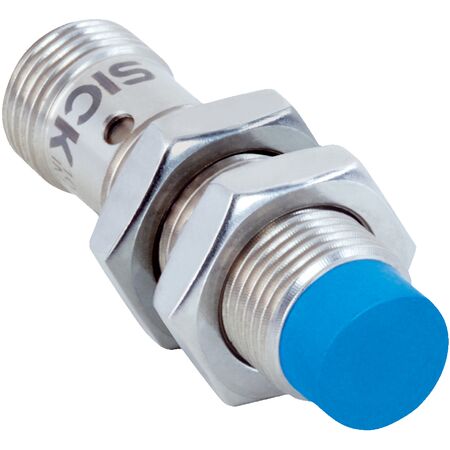

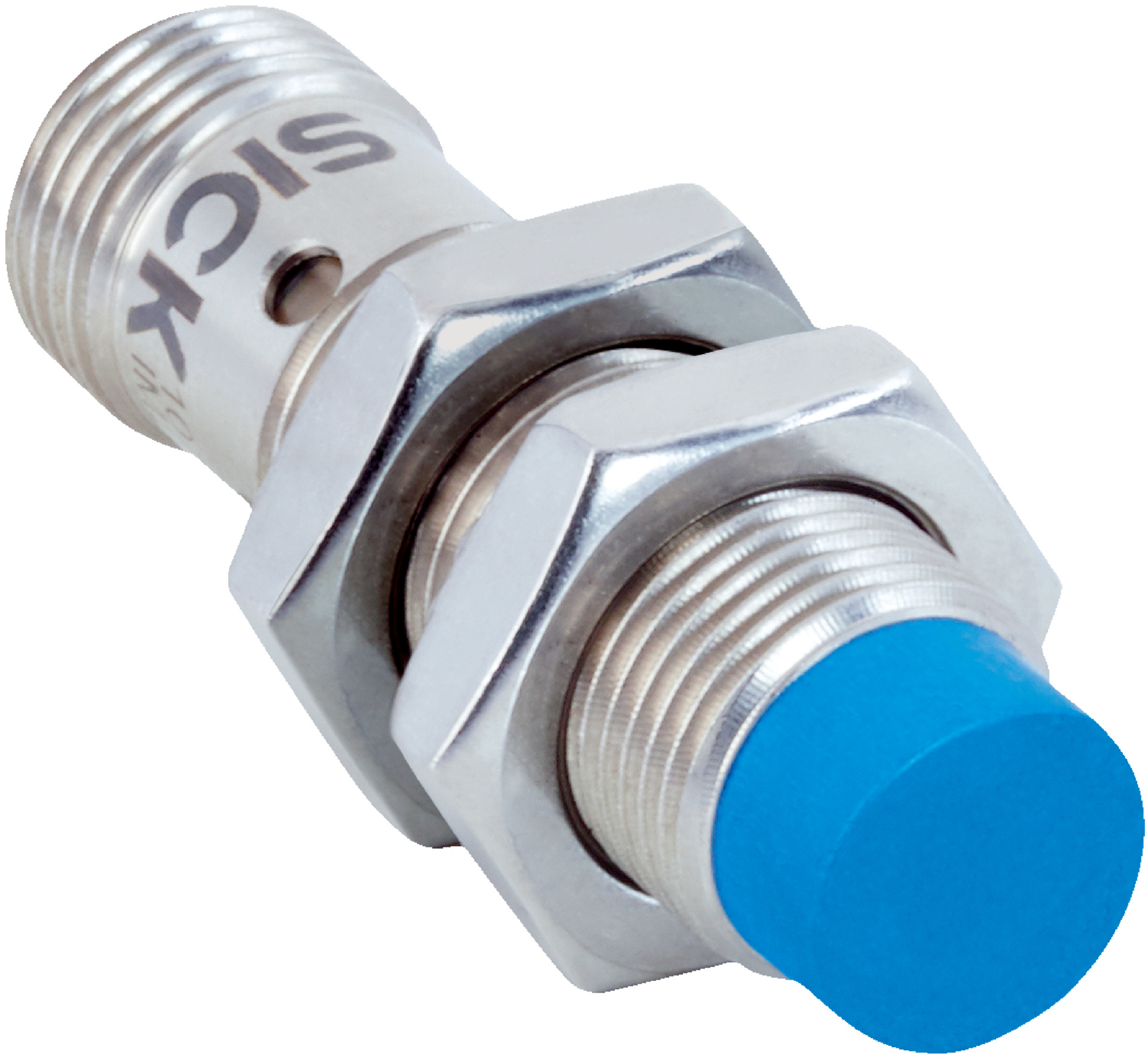

M12 Inductive Proximity Sensor | Short-Body Design | 8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and an 8mm sensing range. With an IP67/IP68/IP69K rated enclosure, it withstands harsh environments, making it ideal for mobile machines and applications with coolants and lubricants. Built for durability, this sensor ensures long-lasting performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, 2 ms sinusoidal; vibration resistance: 60 g peak
- EMC compliant according to EN 60947-5-2
- Corrosion resistance: Salt spray test EN 60068-2-52 severity 5
- Protection class: III
- LED indication: Yellow LED permanently on when switching output active
- Dimensions (H x L x W): 45mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67, IP68, and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic LCP sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMG12-08NNSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and machinery applications requiring reliable object detection in harsh environments.
