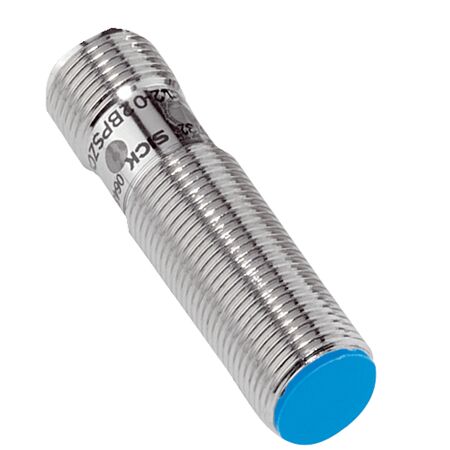

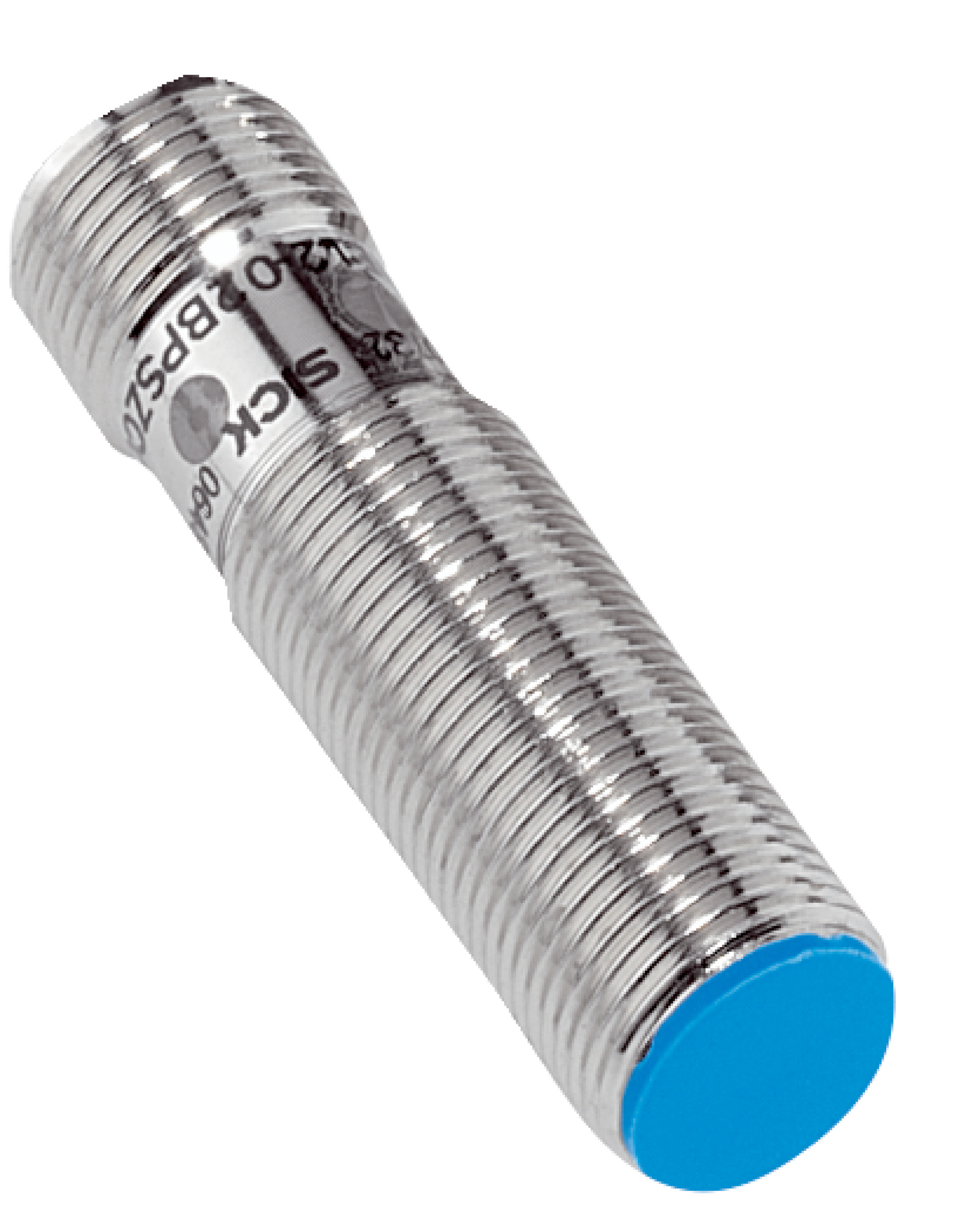

M12 Inductive Proximity Sensor | Short-body Nickel-Plated Brass | IP67 Rated | 2mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body nickel-plated brass housing and a sensing range of 2 mm. With an IP67 rating for dust and water protection, this sensor is perfect for flush installations in manufacturing lines and metal detection applications, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Inductive Proximity Sensor | Short-body Nickel-Plated Brass | IP67 Rated | 2mm Sensing Range | by SICK
Brand: SICK
SKU: 1040744
Alternatively Known As: M12 Inductive Proximity Sensor, Short-body Inductive Sensor, NPN NC Proximity Switch, Flush Mount Inductive Sensor
Technical Specifications
- Housing: Short-body, nickel-plated brass
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 46 mm
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 46mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency up to 2,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-02BNOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
