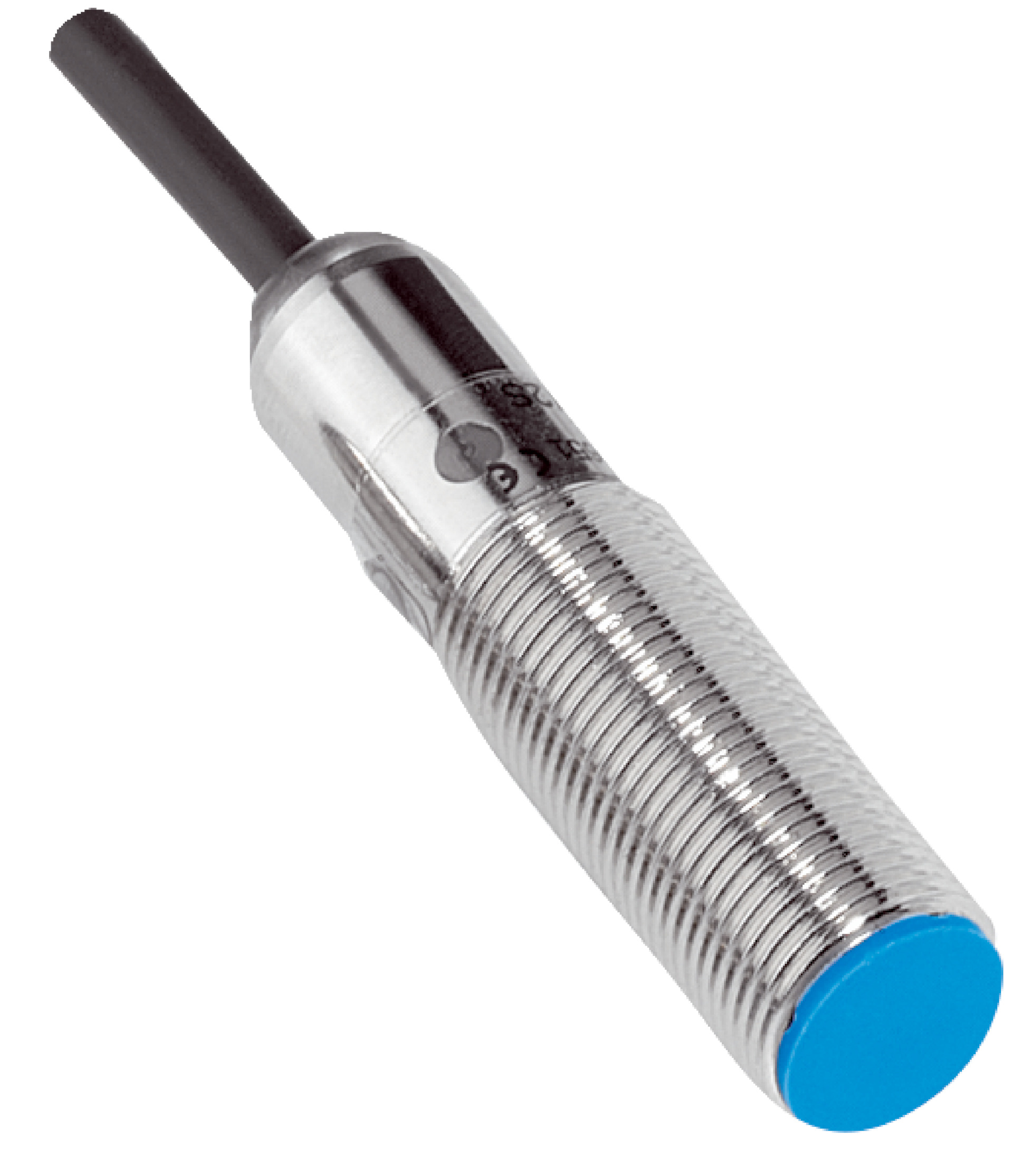

M12 Inductive Proximity Sensor | Short-Body Brass Housing | IP67 Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body brass housing and a sensing range of 4 mm. With a high switching frequency of 2,000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for machine safety and object detection, this sensor is perfect for flush mounting in confined spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 2-wire, 2 m, oil-resistant
- Output function: Normally Open (NO)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 44 mm
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,000 Hz
- Oil-resistant 2 m cable with 2-wire DC connection
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Brass nickel-plated housing with plastic PA 66 sensing face
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Flush mounting in confined spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Oil-resistant cable enhances longevity in harsh environments
- Low power consumption with DC 2-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

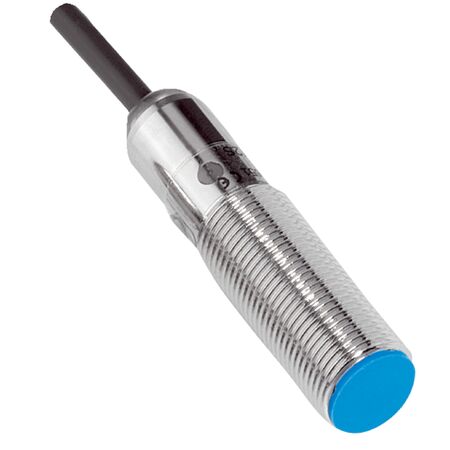

The SICK IME12-04BDSZY2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring reliable flush-mounted sensors.
