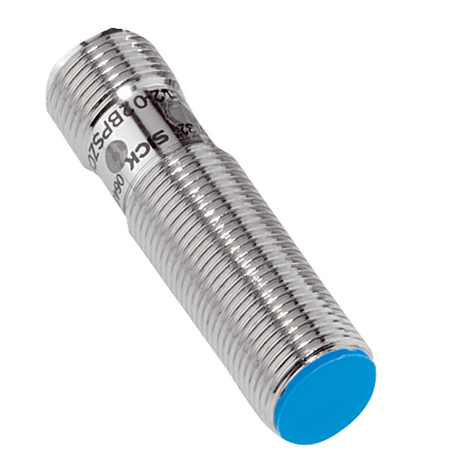

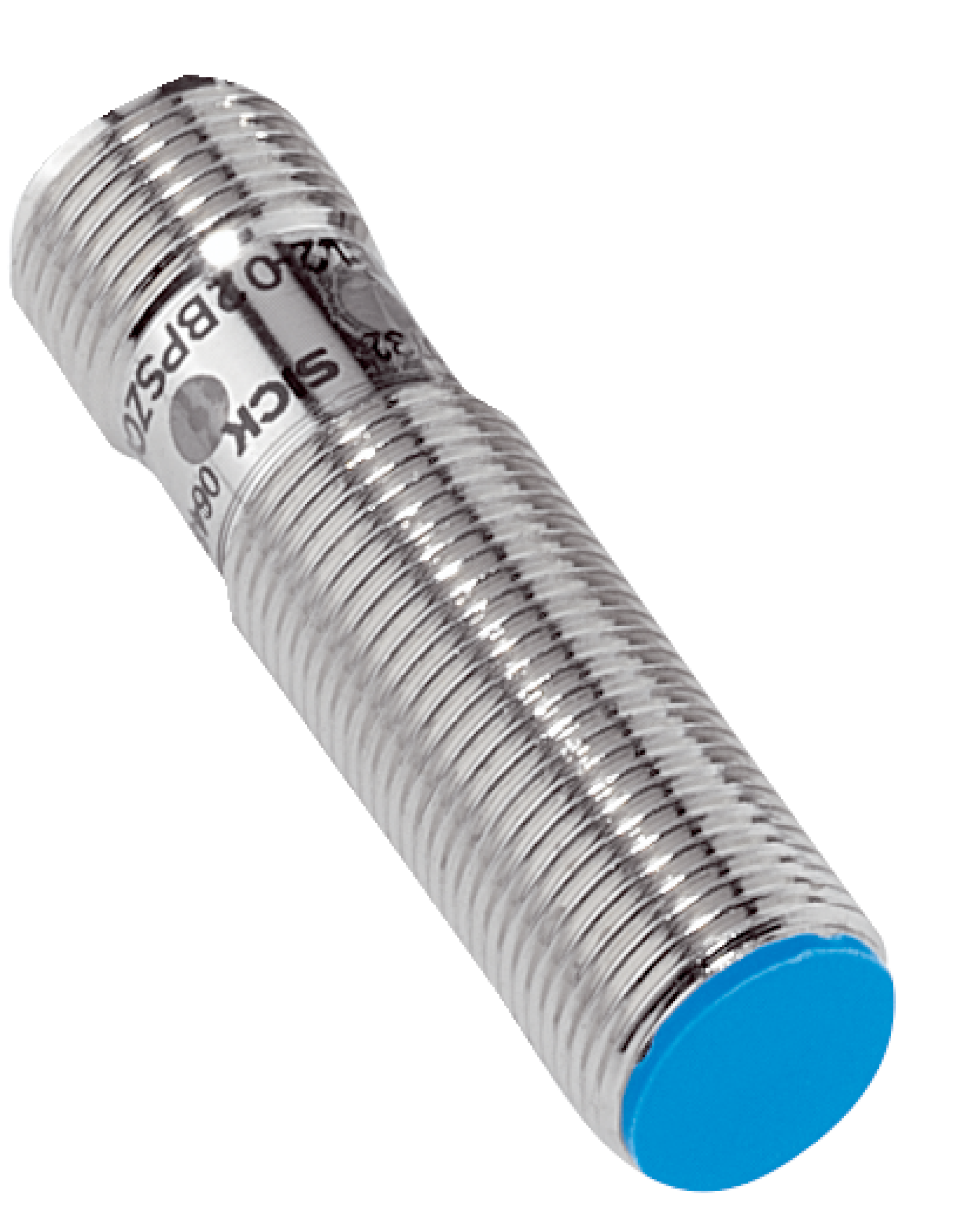

M12 Inductive Proximity Sensor | Short Body Design | IP67 Enclosure | High Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a short body design and an IP67 enclosure for reliable performance in harsh environments. With a high switching frequency of 2,000 Hz and a sensing range of 4 mm, it's perfect for machine safety and control systems. Built to withstand shock and vibration, this sensor ensures durability and efficiency in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Inductive Proximity Sensor, Short Body Inductive Sensor, PNP NC Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Switching frequency: 2,000 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Flush installation type with IP67 enclosure rating
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,000 Hz
- PNP switching output with NC output function
- Extended operating temperature range from -30°C to +75°C
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient sensor operation minimizing power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IME12-04BPOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
