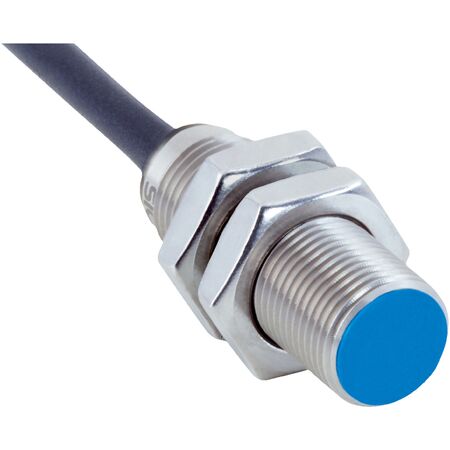

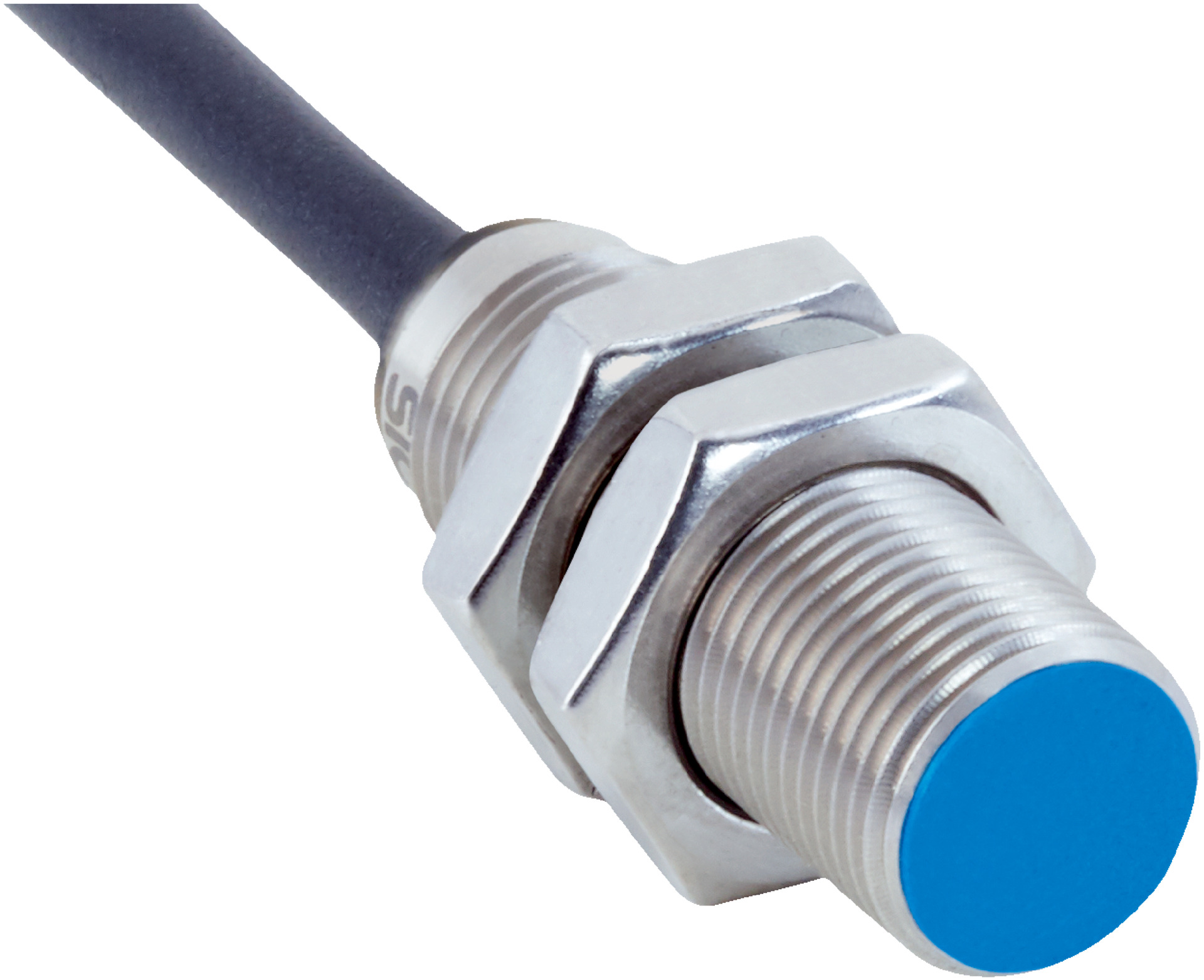

M12 Inductive Proximity Sensor | Short-body Housing | IP67/IP68/IP69K Rated | 4mm Sensing Range | by SICK
The M12 Inductive Proximity Sensor is designed for reliable sensing in harsh environments, featuring a short-body housing and an IP67/IP68/IP69K rating. With a sensing range of 4 mm and a switching frequency of up to 2,000 Hz, it's perfect for applications in zones with coolants and lubricants. Built for durability and performance, this sensor is ideal for mobile machines and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 35mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- NPN switching output with NC output function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN standards
- LED yellow indication for switching status
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic LCP sensing face
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Zones with coolants and lubricants
- Mobile machines
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG12-04BNOZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and machinery applications requiring robust sensing solutions.
