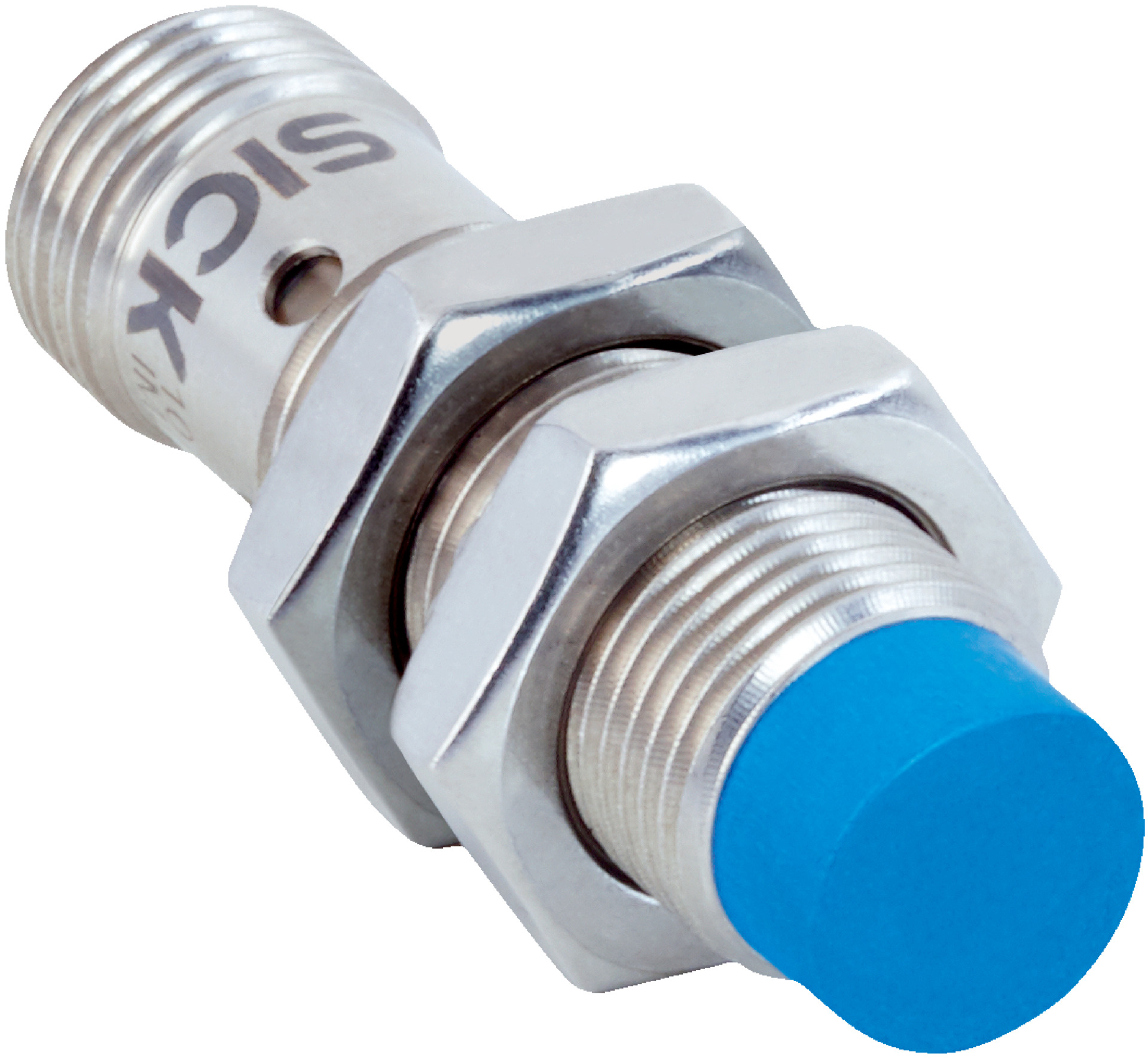

M12 Inductive Proximity Sensor | Short-Body Design | IP67, IP68, IP69K Rated | NPN NC Output | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body housing and a sensing range of 8 mm. With an IP67, IP68, and IP69K rated enclosure, it withstands harsh environments, making it ideal for mobile machines and object detection in challenging conditions. Its robust design ensures reliable performance with low current consumption and high shock resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, 2 ms sinusoidal; vibration resistance: 60 g peak
- Connection type: Male M12 connector, 4-pin
- Protection class: III
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Thread length: 23 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 45mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67, IP68, and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- LED yellow indication for switching status
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper mounting torque and correct wiring to maintain sensor performance and safety.
Applications
- Industrial automation for object detection
- Mobile machines operating in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing risk of failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

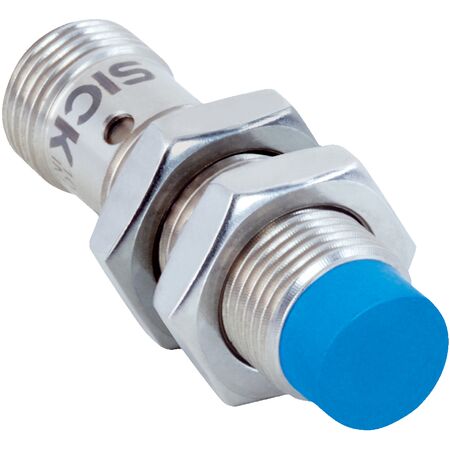

The SICK IMG12-08NNOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable sensing in harsh environments.
