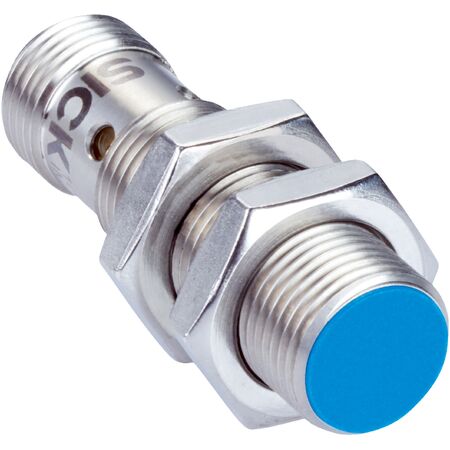

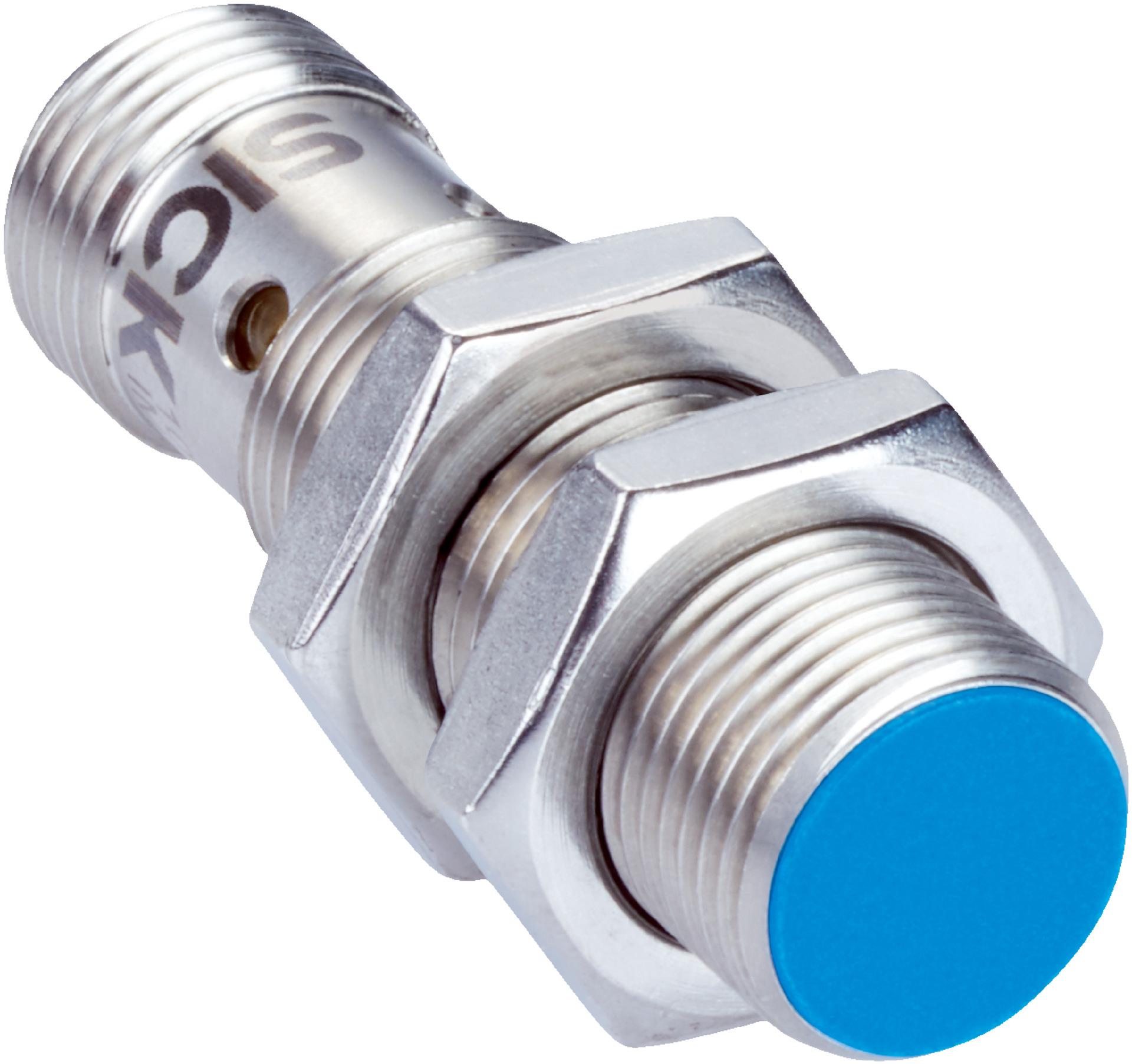

M12 Inductive Proximity Sensor | Short-Body Design | IP67/IP68/IP69K Rated | PNP NC Output | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body housing and a sensing range of 4 mm. With a robust IP67/IP68/IP69K rating, it's perfect for harsh environments, ensuring reliable detection of metal objects even in the presence of coolants and lubricants. Built for durability and performance, this sensor is ideal for mobile machines and applications requiring high resistance to shock and vibration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Protection class: III
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Thread length: 28 mm
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 45mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- PNP switching output with NC function
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- LED yellow indicator for switching status
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG12-04BPOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
