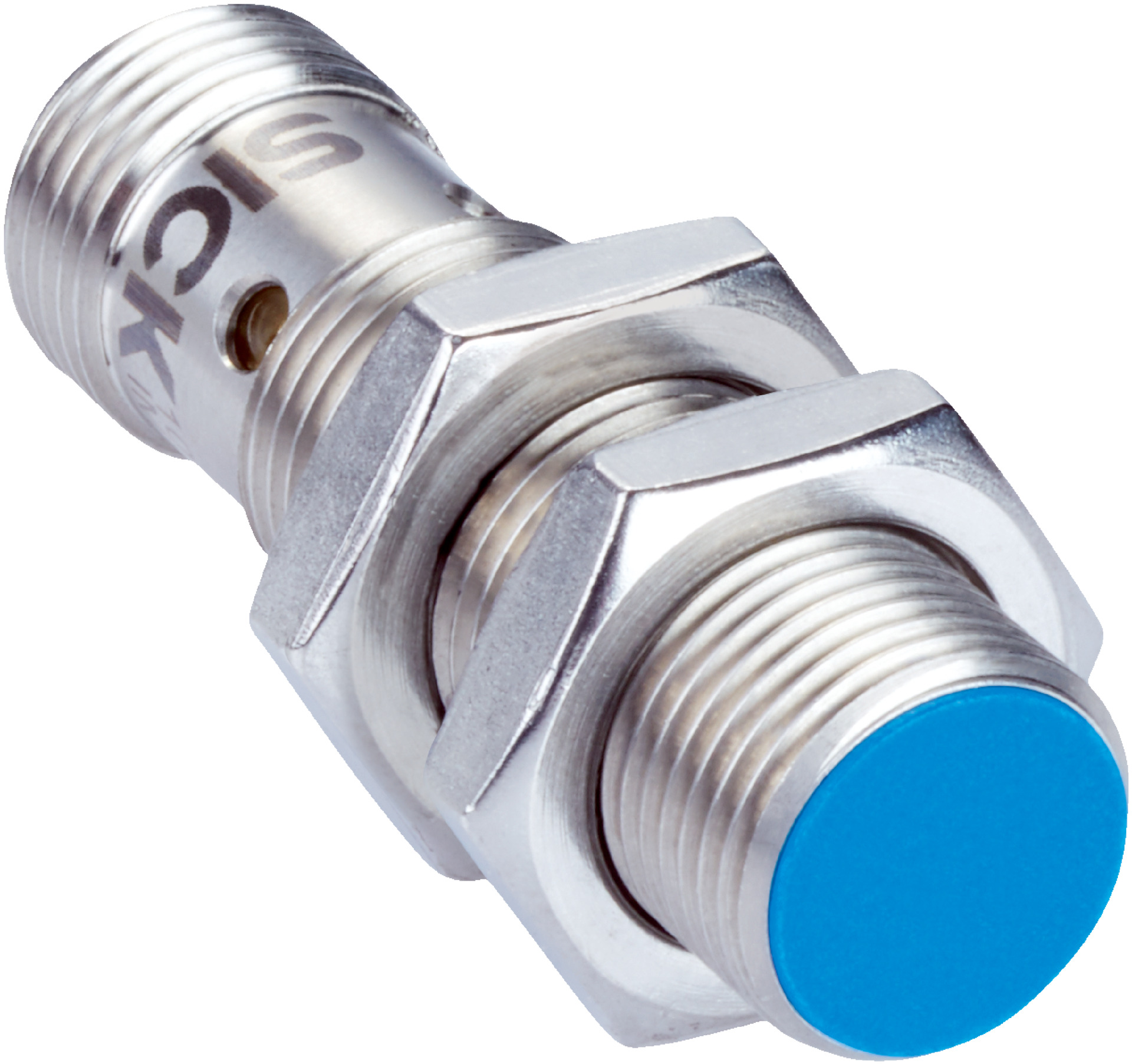

M12 Inductive Proximity Sensor | Short-body Design | IP67 Rated | NPN NC Output | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and an IP67 rating, it withstands harsh environments, making it ideal for mobile machines operating with coolants and lubricants. Featuring a sensing range of 4 mm and a switching frequency of up to 2,000 Hz, this sensor ensures precise performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- LED yellow indicator for switching status
- Protection class III
- UL File No.: E181493
- Dimensions (H x L x W): 12mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- NPN switching output with NC function
- Connection via male M12 4-pin connector
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

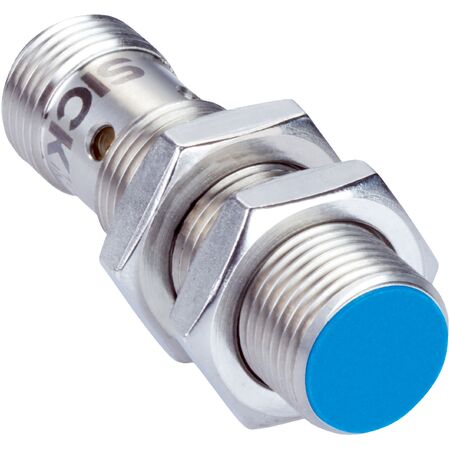

The SICK IMG12-04BNOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications in harsh environments.
