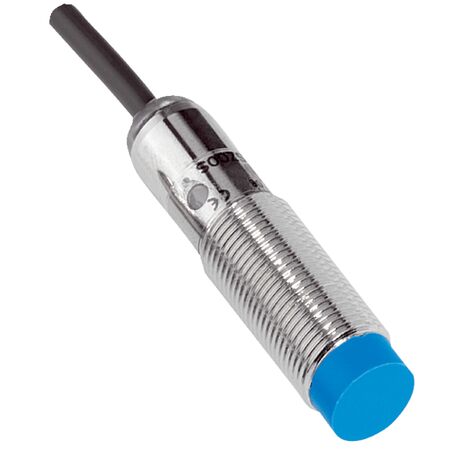

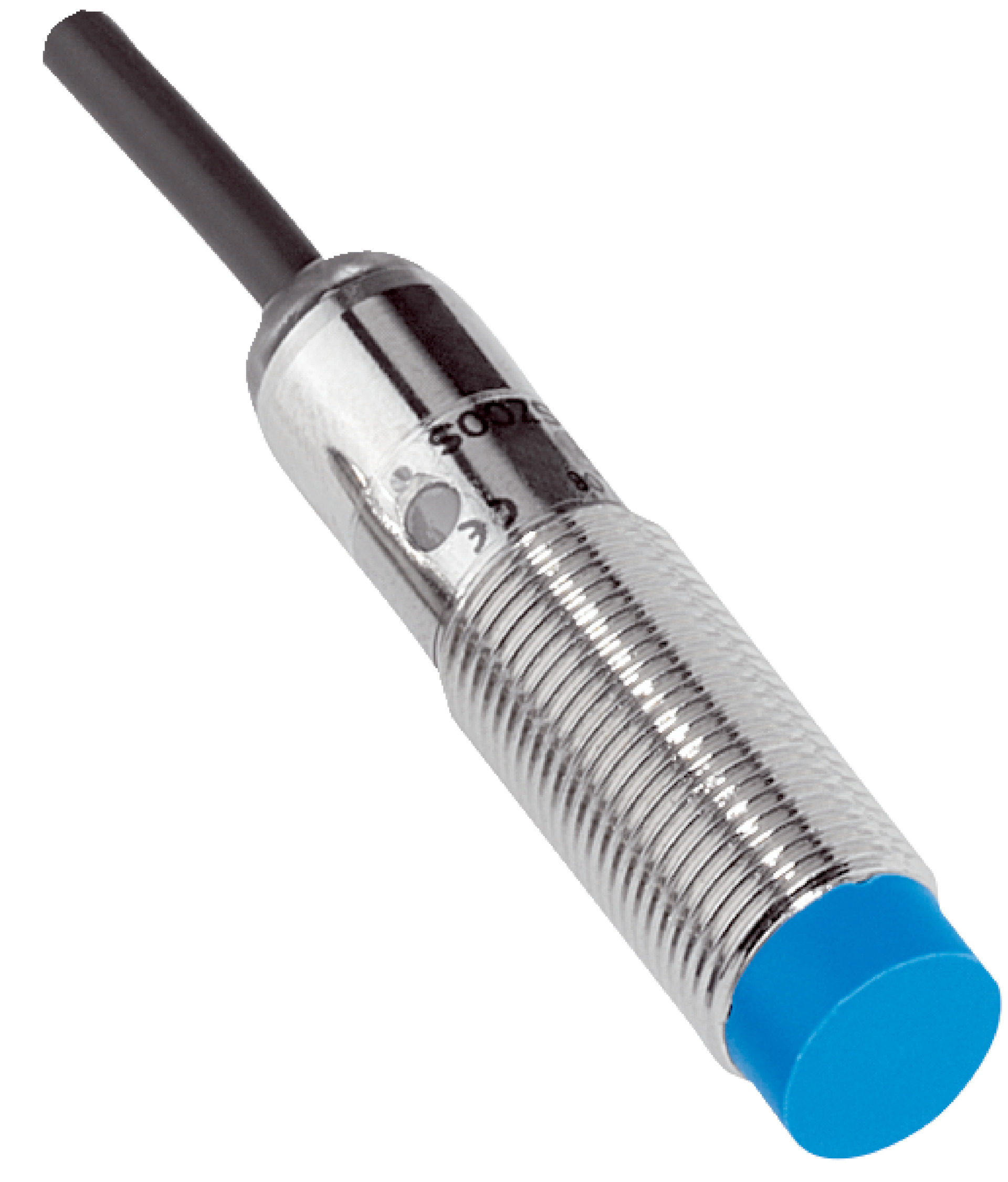

M12 Inductive Proximity Sensor | Short Body Design | IP67 Rated | NPN Output | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short body design and IP67 rated enclosure for dust and water protection. With a sensing range of 10 mm and a switching frequency of 400 Hz, it's perfect for manufacturing process control and position sensing in machinery, ensuring efficient operation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency of 400 Hz
- NPN normally closed switching output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Non-flush mounting sensing applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient sensor operation minimizing power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME12-10NNOZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
