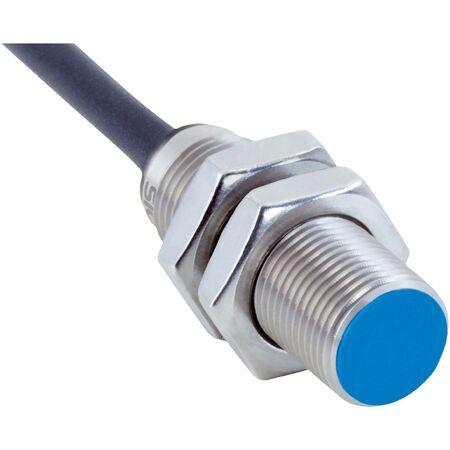

M12 Inductive Proximity Sensor | Short-Body Nickel-Plated Brass | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body nickel-plated brass housing and a 4mm sensing range. With a high switching frequency of 2000Hz and an IP67, IP68, and IP69K enclosure rating, this sensor is perfect for harsh environments, ensuring durability and performance in applications involving coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body nickel-plated brass
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- EMC: According to EN 60947-5-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Bending radius: Fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: EN 60068-2-6, EN 60068-2-27, EN 60068-2-64
- Ambient operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Housing length: 35 mm
- Thread length: 31 mm
- Tightening torque max: ≤ 12 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 35mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing with 35 mm length
- Flush installation type with 4 mm sensing range
- High switching frequency of 2,000 Hz
- PNP normally open switching output with 3-wire DC connection
- Cable connection with 2 m PUR cable
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN standards
- LED yellow indicator for switching status
- Wide ambient operating temperature from -40 °C to +85 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Resistant to harsh chemicals and lubricants, minimizing environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG12-04BPSZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
